22 Antennas Full Bands Ajustable 5G Jammer Cell Phone WiFi GPS LOJACK Walkie-Talkie UHF VHF Remote Control Desktop Blocker

22 Antennas Full Bands Ajustable 5G Jammer Cell Phone WiFi GPS LOJACK Walkie-Talkie UHF VHF Remote Control Desktop Blocker 1
22 Antennas Full Bands Ajustable 5G Jammer Cell Phone WiFi GPS LOJACK Walkie-Talkie UHF VHF Remote Control Desktop Blocker 1
22 Antennas Full Bands Ajustable 5G Jammer Cell Phone WiFi GPS LOJACK Walkie-Talkie UHF VHF Remote Control Desktop Blocker 2
22 Antennas Full Bands Ajustable 5G Jammer Cell Phone WiFi GPS LOJACK Walkie-Talkie UHF VHF Remote Control Desktop Blocker 3
22 Antennas Full Bands Ajustable 5G Jammer Cell Phone WiFi GPS LOJACK Walkie-Talkie UHF VHF Remote Control Desktop Blocker 4
22 Antennas Full Bands Ajustable 5G Jammer Cell Phone WiFi GPS LOJACK Walkie-Talkie UHF VHF Remote Control Desktop Blocker 5
Product Name : 22 Antennas Full Bands Ajustable 5G Jammer Cell Phone WiFi GPS LOJACK Walkie-Talkie UHF VHF Remote Control Desktop Blocker
Product ID : HAG-C22
Output Power : Total 45W,1-3W each band
Shielding radius : From 2 to 40 meters at -75dBm
Jam Signal Type : Full Bands Mobile Phone 5GLTE 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1-L5 +Walkie-Talkie UHF/VHF+ Remote Control 433/315/868
Cooling System : High efficiency aluminum alloy radiator, Build-in 5 cooling fan
Working Time : Not-stop Working
Directions

Product Description



This 22 Antennas Full Bands Ajustable 5G Jammer Cell Phone WiFi GPS LOJACK Walkie-Talkie UHF VHF Remote Control Desktop Blocker is the latest designed with 22 Antennas all-in-one for mobile phone 5GLTE GSM 3G 4GLTE signals which bring us a strong jamming ability. The jammer do cut off all 5G 3G 4G mobile phone signals, also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. Full bands  jammer is powerfull to blocks all the signals, Jamming frequencies the jamming radius up to 40 meters.



Advantages



  • Full bands 22 channel design, customized for special frequency range
  • High output power, total up to 45 watss, jamming up to 40 meters (depends on the strength signal in given area)
  • External Omni-directional antennas all the TX frequency covered down link only
  • With Car storage battery Charger DC12V can be used in car
  • Built-in good cooling system inside, Working non-stopped
  • Can adjust or turn off any single band without influencing the other bands operation
  • 2-5 meters with Infrared Remote Control Turn ON /OFF Power



Specification

  • Jam Signal Type: Full Bands Mobile Phone 5GLTE 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1-L5 +Walkie-Talkie UHF/VHF+ Remote Control 433/315/868
  • Output Power: Total 45W,1-3W each band
  • Cooling System: High efficiency aluminum alloy radiator, Build-in 5 cooling fan
  • Working Time: Not-stop Working
No. Output Port Frequncy

Average Output Power

1

CDMA/RC868

850-894 MHz

35 dbm / 3W

2

GSM

925-960 MHZ

35 dbm / 3W

3

DCS

1805-1880 MHZ

33 dbm / 2W

4

3G

2110-2170 MHZ

33 dbm / 2W

5

4G800

758-821 MHZ

35 dbm / 3W

6

4G2600

2570-2690 MHZ

30 dbm / 1W

7

4G2500

2500-2570 MHZ

30 dbm / 1W

8

4G2300

2300-2400 MHZ

30 dbm / 1W

9

5G 1500

1427-1518 MHZ

33 dbm / 2W

10

5G 3.4G

3300-3600 MHZ

30 dbm / 1W

11

5G 3.8G

3600-3900 MHZ

30 dbm / 1W

12

5G 4.0G

3900-4200 MHZ

30 dbm / 1W

13

WIFI 2.4G 11.b, g

2400-2500 MHZ

30 dbm / 1W

14

WIFI 5.2G 11.a

4900-5500 MHZ

30 dbm / 1W

15

WIFI 5.8G 11.a

5500-5900 MHZ

30 dbm / 1W

16

GPS: L1 + Glonass L1

1570-1580 Mhz

33 dbm / 2W

17

GPSL2+L5 + Glonass L2

1170-1280 MHZ

33 dbm / 2W

18

GPSL3+L4

1370-1390 MHZ

33 dbm / 2W

19

Lojack Car Tracking

167-175 MHZ

35 dbm / 3W

20

VHF

135-175 Mhz

35 dbm / 3W

21

UHF/RC433

400-470 MHZ

35 dbm / 3W

22

RC315

315 MHZ

35 dbm / 3W

Power supply: AC adapter 50 to 60 Hz, (110 or 220V AC-12V DC)     Car storage battery Charger DC12V

Dimensions: 450x 238x 60 mm (not include signal antenna)

Packing size: 55*44*15 CM           Net weight: 7 KGS          Gross weight: 8.0 KGS

Total power: 42 Watts
Shielding radius:  From 2 to 40 meters at -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters

Warranty: one year from delivery date

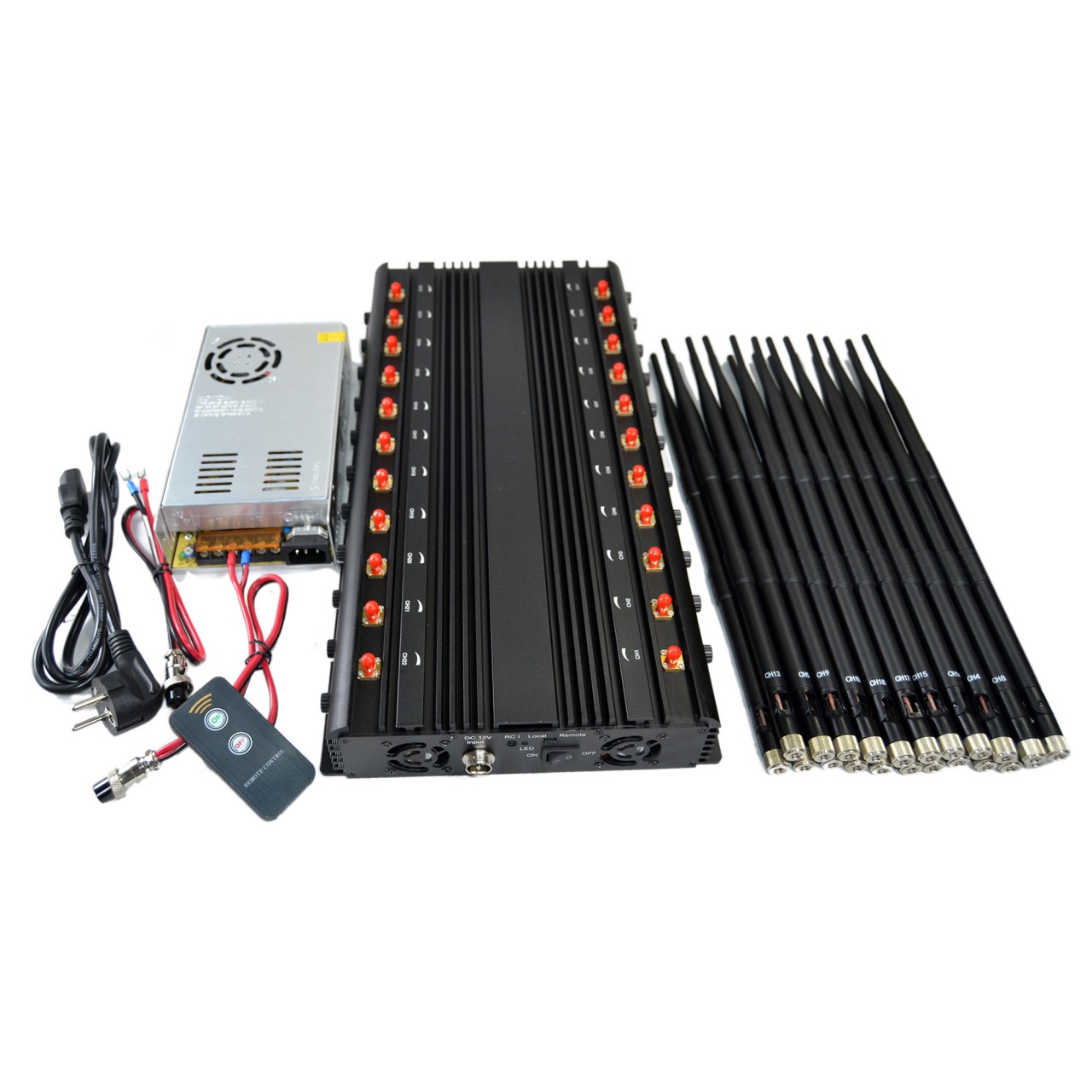

Package Contents



  • Jammer Host x 1
  • AC adapter x 1
  • Antenna x22
  • Car storage battery cable x 1
  • Infrared Remote Control x 1
