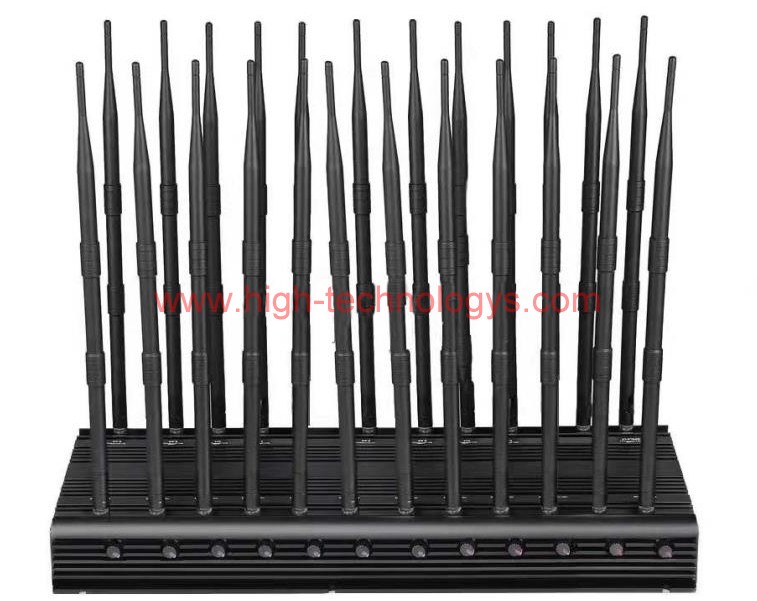

24 Antennas High Power 44W Cell Phone Jammer VHF UHF Lojack RC GPS WIFI 2G 3G 4G 5G Signal Jammer

24 Antennas High Power 44W Cell Phone Jammer VHF UHF Lojack RC GPS WIFI 2G 3G 4G 5G Signal Jammer

Product Name : 24 Antennas High Power 44W Cell Phone Jammer VHF UHF Lojack RC GPS WIFI 2G 3G 4G 5G Signal Jammer

Product ID : HAG-5GD24

Output Power : 44W

Jamming Range : Radius 1-40M【the Cellular signal must be ≤-75dBm in the location】 The jamming radius still depends on the strength signal in given area

Frequency Band : Block GSM/CDMA/DCS/PCS/3G/4G/4G LTE/4G WiMAX/5G/GPS/2.4G WIFI/5.8G WIFI/VHF/UHF/LOJACK/315/433/868/915 And Etc

Working Power : AC220V / DC12V 20A

Warranty : 12months

Directions

Detailed Product Description

Jamming Range:	1-40M	Antenna:	24 Omni-directional Antennas
Working Bandwidth(MHz):	24 Bands Including GSM/CDMA/DCS/PCS/3G/4G/4G LTE/4G WiMAX/5G/GPS/2.4G WIFI/5.8G WIFI/VHF/UHF/LOJACK/315/433/868/915 And Etc.	Working Power:	AC220V / DC12V 20A
Single Output Power:	+33dBm / 2W	Total Output Power:	44W
Weight:	7.2KG	Dimension:	515×235×58 Mm, Not Include Antenna
Function:	Block GSM/CDMA/DCS/PCS/3G/4G/4G LTE/4G WiMAX/5G/GPS/2.4G WIFI/5.8G WIFI/VHF/UHF/LOJACK/315/433/868/915 And Etc.	Warranty:	12 Months
High Light:	24 Antennas 5G Signal Jammer , VHF UHF 5G Signal Jammer , 44W Cell Phone Signal Jammer

OEM 24 Bands Cell Phone 2G 3G 4G 5G WIFI GPS VHF UHF RC315 433 868 Signal Jammer

1. Product Specification

* available TX frequency which can be adjusted and used in this 20 antenna jammer
(adjustable per customer request)
1^st Channel: CDMA: 851-894MHz
2^nd Channel: GSM: 925-960MHz
3^rd Channel: DCS: 1805-1880MHz
4^th Channel: PCS: 1920-1990MHz
5^th Channel: 3G: 2110-2170MHz
6^th Channel: 2.4G WIFI: 2400-2500MHz
7^th Channel: GPS L1: 1575±10MHz
8^th Channel: 4G LTE: 725-825MHz
9^th Channel: 4G WiMAX: 2500-2690MHz
10^th Channel: UHF: 400-470MHz
11^th Channel: VHF: 135-174MHz / LOJACK: 173.075MHz
12^th Channel: 315: 315MHz
13^th Channel: 433: 433MHz
14^th Channel: 868: 868MHz

15^th Channel: 915: 915MHz
16^th Channel: GPS L2-L5: 1170-1230MHz

17^th Channel: GPS L3-L4: 1370-1390MHz
18^th Channel: 5.8G WIFI: 5715-5860MHz
19^th Channel: 5G1: 3400-3600MHz
20^th Channel: 5G2: 3600-3800MHz

21^st Channel: 5G3: 4800-5000MHz

22^nd Channel: 4G 700: 758-803MHz (US) / 791-821MHz (Europe)

23^rd Channel: 4G 2300: 2300-2400MHz

24^th Channel: 5G 1500: 1496-1550MHz

Product Name:	OEM 24 Bands Cell Phone 2G 3G 4G 5G WIFI GPS VHF UHF RC315 433 868 Signal Jammer
Model No.:	HAG-5GD24
Color:	Black
MOQ:	1 piece
Antenna:	24 omni directional antennas
Jamming Range:	Radius 1-40M【the Cellular signal must be ≤-75dBm in the location】 The jamming radius still depends on the strength signal in given area
Available System:	Include analog (AMPS,TACS,NMT) and digital (GPRS,GSM, DCS, CDMA, PDC, TDMA, PHS, PCS, IDEN, Wifi / Bluetooth/wireless video,UMTS) /GPS and etc.
Single Output Power:	+33dBm/2W (adjustable with rotary knob)
Total Output Power:	44W
Working Power:	AC220V / DC12V 20A
Host Dimension:	515(L)×235(W)×58(H) mm not include antenna

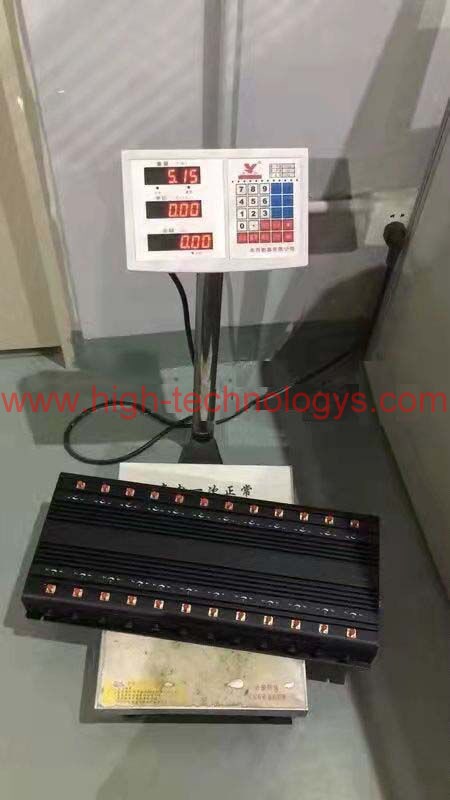

Host Weight:	7.2kg
OEM:	Available
Logo Printing:	Available if the order quantity is large enough.
Packing:	1 pcs gift box for one device, neutral packing
Working Temperature:	-40℃ ~ +55℃
Relative Humility:	≤90%(RH)
Air Pressure:	86~106kPa
Safety Regulation:	AC Adapter UL (E190582) / CSA (LR112971 Level 3)

2. Application

1). Bank, Conference room, auditoriums, law court, library, exam room, school, cinema, theater, and hospital etc.
2). At places where using mobile phones is prohibited such as government, military, finance, security, police and command center etc.

Library 808HI Portable Cell Phone Jammer GPS WIFI 3G Blocker 30dBm

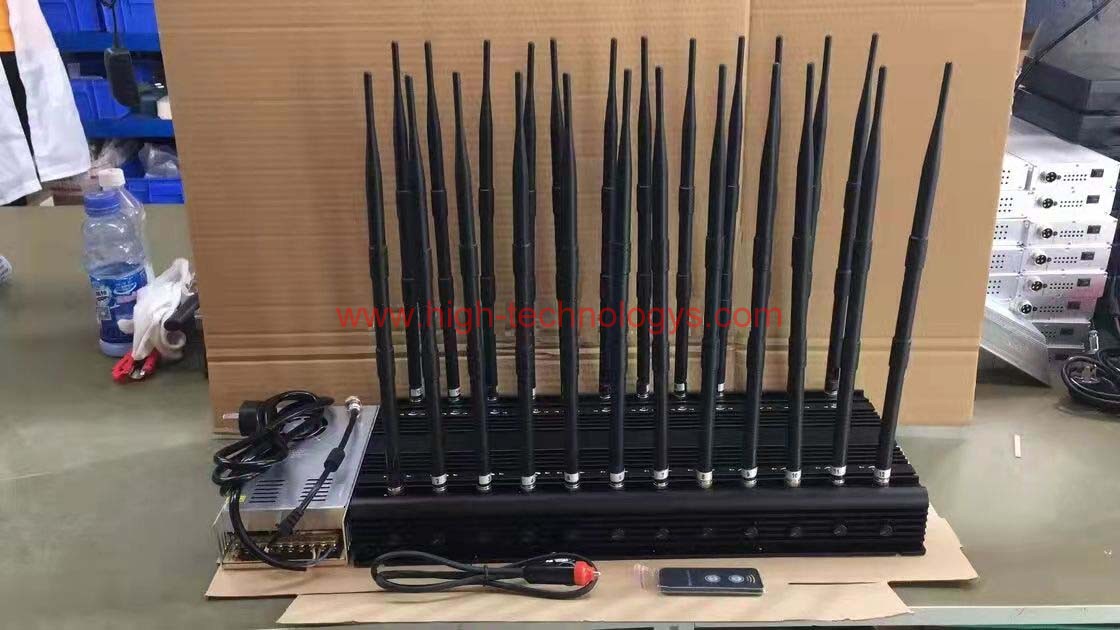

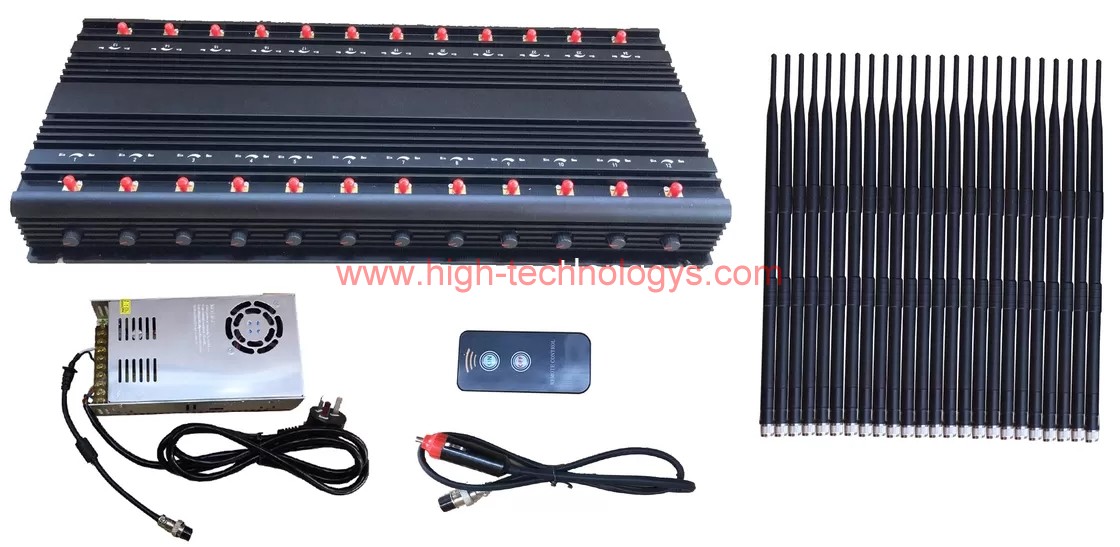

3. Packing List

1). Multi functional signal jammer(main unit) 1 piece
2). Antenna 1set (20 pieces)
3). Power adaptor(AC plug) 1 piece
4). User’s manual(depend on customer choice) 1 piece
