30 Antennas Adjustable Cell Phone 2G 3G 4G 5G Signal Jammer WIFI GPS UHF VHF Lojack RC All Bands Blocker

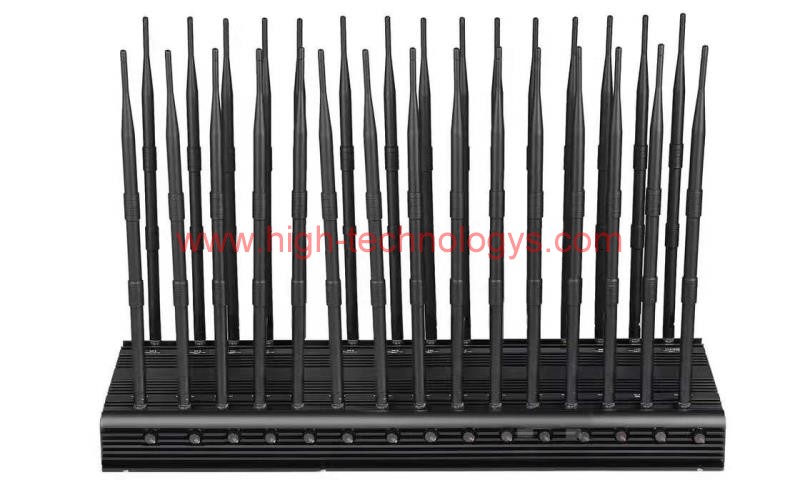

30 Antennas Adjustable Cell Phone 2G 3G 4G 5G Signal Jammer WIFI GPS UHF VHF Lojack RC All Bands Blocker 1
Product Name : 30 Antennas Adjustable Cell Phone 2G 3G 4G 5G Signal Jammer WIFI GPS UHF VHF Lojack RC All Bands Blocker
Product ID : HAG-5G30
Total output power : 60W
Jamming radius : up to 40 meters (@-75dBm still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal.)
Affected Frequency Ranges : 30 Bands Including GSM/CDMA/DCS/PCS/3G/4G/4G LTE/GPS/2.4G WIFI/5.8G WIFI/VHF/UHF/RC315/RC433/LOJACK/5G1/5G2
Power Supply : AC adapter(AC220V TO DC12V 20A)
Dimension : 620×235×58 Mm, Not Include Antenna
Directions
Detailed Product Description
Jamming Range: 1-40M Antenna: 30 Omni-directional Antennas
Working Bandwidth(MHz): 30 Bands Including GSM/CDMA/DCS/PCS/3G/4G/4G LTE/GPS/2.4G WIFI/5.8G WIFI/VHF/UHF/RC315/RC433/LOJACK/5G1/5G2 Working Power: AC220V / DC12V 20A
Single Output Power: +33dBm / 2W (adjustable With Rotary Knob) Total Output Power: 60W
Weight: 8.5kg (including Antennas & AC Adapter) Dimension: 620×235×58 Mm, Not Include Antenna
Function: Block GSM/CDMA/DCS/PCS/3G/4G/4G LTE/GPS/2.4G WIFI/VHF/UHF/LOJACK/5.8G/5G1/5G2 Signal Warranty: 12 Months
High Light:

cell phone wifi jammer

cell phone frequency jammer



1-40m Adjustable Worldwide First 30 Channels Indoor Desktop OEM Wireless Signal Jammer




1. Product Specification

* available TX frequency which can be adjusted and used in this 24 antenna jammer
(adjustable per customer request)

1. FM radio: 80-110MHz

2. wireless camera: 900-1100MHz

3. wireless camera: 1100-1200MHz

4. VHF radio: 135-175MHz (LoJack: 167-174MHz)

5. UHF radio: 400-470MHz

6. RC315: 315MHz

7. RC433: 433MHz

8. GPS L1: 1500-1620MHz

9. GPS L2+L5: 1170-1300MHz

10. GPS L3+L4: 1370-1496MHz

11. CDMA/4G MOB: 850-894MHz

12. 3G: 2100-2200MHz

13. DCS / GSM 1800: 1805-1880MHz

14. GSM 900/LORA: 900-960MHz

15. PCS: 1900-1995MHz

16. 4G/5G 600: 600-700MHz

17. 4G 700: 700-850MHz

18. 4G 2600: 2496-2690MHz

19. 4G 1700: 1700-1800MHz

20. 4G 2300: 2300-2400MHz

21. 5G(3.5GHz): 3400-3575MHz

22. 5G(3.6GHz): 3575-3700MHz

23. 5G(4.0GHz): 4800-5000MHz

24. 2.4G Wi-Fi: 2400-2500MHz

25. 5.2G Wi-Fi: 5150-5350MHz

26. 5.8G Wi-Fi: 5750-5850MHz

27. Skylink: 453-468MHz

28. RC868: 868MHz

29. RC915: 915MHz

30. Remote Control(RC) Toys: 27-49MHz



Product Name: 1-40m Adjustable Worldwide First 30 Channels Indoor Desktop OEM Wireless Signal Jammer
Model No.: HAG-5G30
Color: Black
MOQ: 1 piece
Antenna:

30 omni directional antennas

Jamming Range:

Radius 1-40M【the Cellular signal must be ≤-75dBm in the location】
The jamming radius still depends on the strength signal in given area

Available System:

Include analog (AMPS,TACS,NMT) and digital (GPRS,GSM, DCS, CDMA, PDC, TDMA, PHS, PCS, IDEN, Wifi / Bluetooth/wireless video,UMTS) /GPS and etc.

Single Output Power:

+33dBm / 2W, adjustable with rotary knob

Total Output Power:

60W

Power Supply:

AC adapter(AC220V TO DC12V 20A)

Dimension:

620×235×58 mm not include antenna

Weight: 8.5kg (including antennas & AC adapter)
OEM: Available
Logo Printing: Available if the order quantity is large enough.
Packing: 1 pcs gift box for one device, neutral packing
Working Temperature:

-40℃ ~ +55℃

Relative Humility: ≤90%(RH)
Air Pressure: 86~106kPa
Safety Regulation: AC Adapter UL (E190582) / CSA (LR112971 Level 3)


2. Application

1). Bank, Conference room, auditoriums, law court, library, exam room, school, cinema, theater, and hospital etc.
2). At places where using mobile phones is prohibited such as government, military, finance, security, police and command center etc.

Library 808HI Portable Cell Phone Jammer GPS WIFI 3G Blocker 30dBm

3. Packing List

1). Multi functional signal jammer(main unit) 1 piece
2). Antenna 1set (30 pieces)
3). Power adaptor(AC plug) 1 piece
4). User’s manual(depend on customer choice) 1 piece
