35W High Power Wall Mounted WiFi Cellphone Signal Jammer for School Examination with 15m Range
Product Name : 35W High Power Wall Mounted WiFi Cellphone Signal Jammer for School Examination with 15m Range
Product ID : HAG-C334
Total Power : 36 watt
Typical Coverage : 15-20 meter(depends on real environment )
Working Band : All 2G 3G 4G +WIFI
Power Supply : AC110~220,DC12V/10A
Weight : 5.5KG
Directions
Product Description
Phone WiFi Signal Jammer Wall Mount 9 Channel For School Examination
Brief Introduction
It is a customized phone wifi signal jammer specially for school and other examinations, to avoid cheating and copying in examinations by phone wifi signal.
It adopts RF jamming 9 channels and can shield phone wifi signal in large area in 10-20 meter radius
(depends on real using environment ).
In that area, the phone can not send or receive messages or calls, and Wifi network can not be used anymore.
Product Feature
- High output power each channel about 5W, total output 35W
- Each channel has its own single RF jamming modules for effective and long rane jamming effect
- Built-in high gain antenna than outside antennas to reduce the outer environment damage and increase the life span
- Alluminum alloy outshell be waterproof, dustproof, heat-resistant, anti-corrossive and moisture-resistant

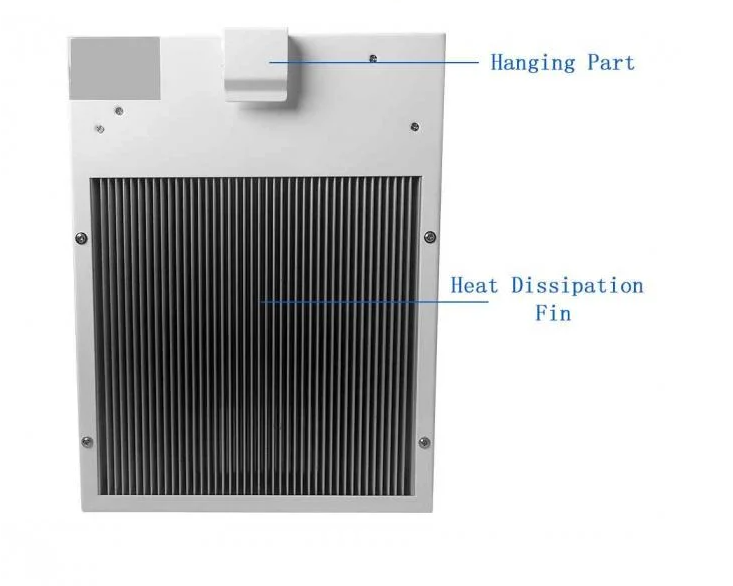

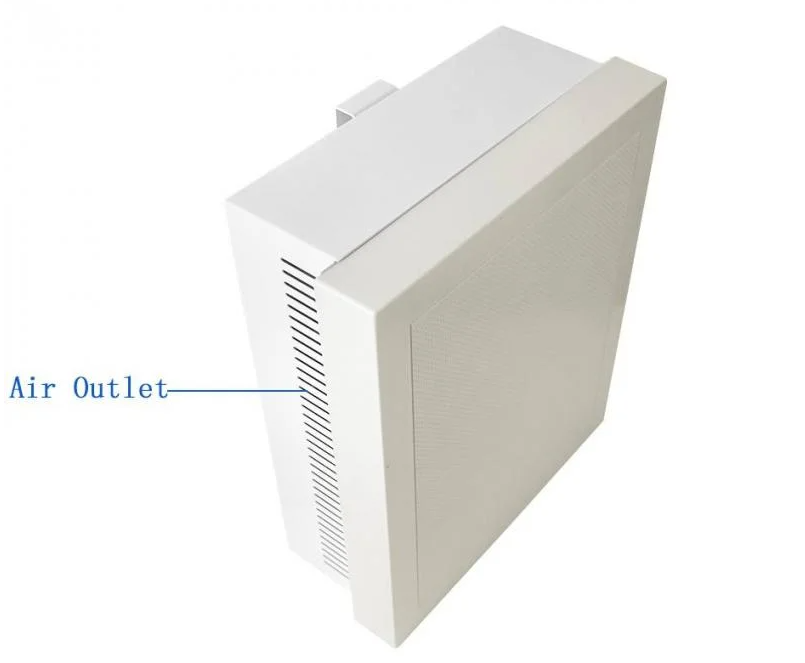

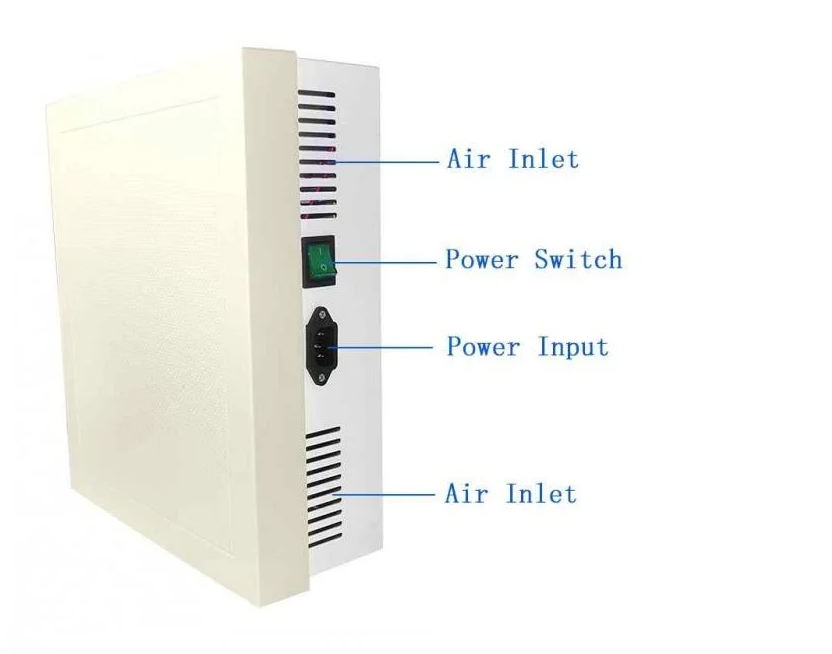

- Smart heat-dissipation system with ventilation holes, built in ultra thick heatsink, fins and large 6*6CM fans to
- suck cool air in and blow hot air out, for stable and long time use
- Space-saving with small size and light weight
- It can work continuously 24/7 non stop
- It only shields the phone wifi signal in certain area and does not have any effect to the mobile phone base station
Specificaion
| Output Interface |
Shield Band Frequency Detail |
Average RF Output power |
Output power Each Channel |
|
| CDMA | 865-880MHZ | 37dBm | 5dBm/30KHz(min) | |
| GSM | 935-960MHZ | 37dBm | 5dBm/30KHz(min) | |
| DCS | 1805-1880MHz | 35dBm | 5dBm/30KHz(min) | |
| TD | 2005-2015MHz | 34dBm | 2dBm/30KHz(min) | |
| LTE | 2300-2400MHz | 32dBm | 2dBm/30KHz(min) | |
| WIFI | 2400-2500MHz | 34dBm | 2dBm/30KHz(min) | |
| 3G | 2010-2170MHZ | 34dBm | 4dBm/30KHz(min) | |
| 4G | 2550-2660MHz | 34dBm | 2dBm/30KHz(min) | |
| 4G | 1880-1920MHz | 35dBm | 2dBm/30KHz(min) | |
| Power Supply | AC110~220,DC12V/10A | |||
| Jamming Range/Radius | 15-20 meter(depends on real environment ) | |||
| Power consumption | 50W | |||
| Total Output | 36W | |||
| Weight | 5.50 kg | |||
| Size | 330×270×80 mm | |||
| Working Temperature | -40ºC~55ºC | |||
| Relative Humidity | 35~85% | |||
| Power Consumption | ≤120W | |||
| Suggested Installation Height | 1.8~2.5m | |||

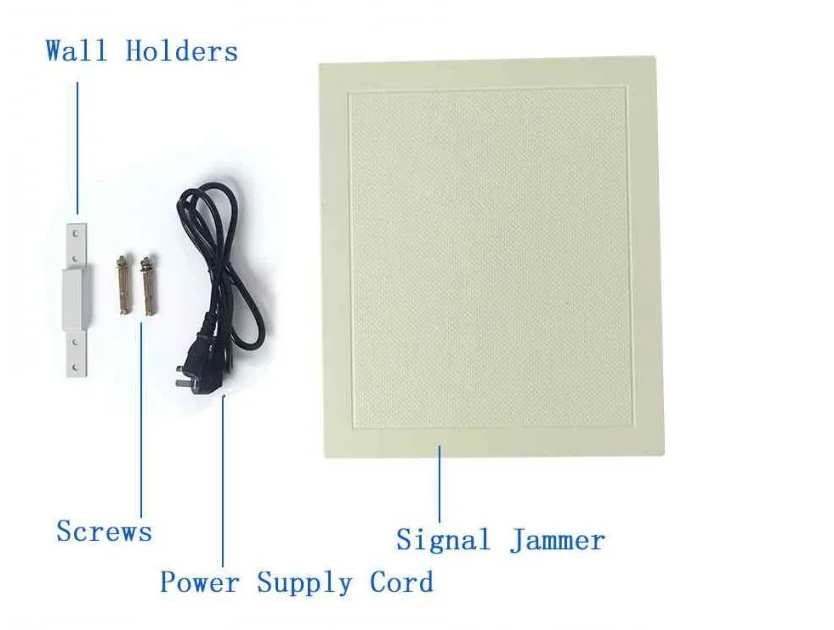

Package List
| Number | Item Name | Quantity |
| 1 | School Signal jammer | 1 |
| 2 | User Manual | 1 |
| 3 | Installation Screws | 2 |
| 4 | Wall Holder | 1 |
| 5 | Power Supply Cord | <span style="box-sizing: border-box; font-family: Ari
