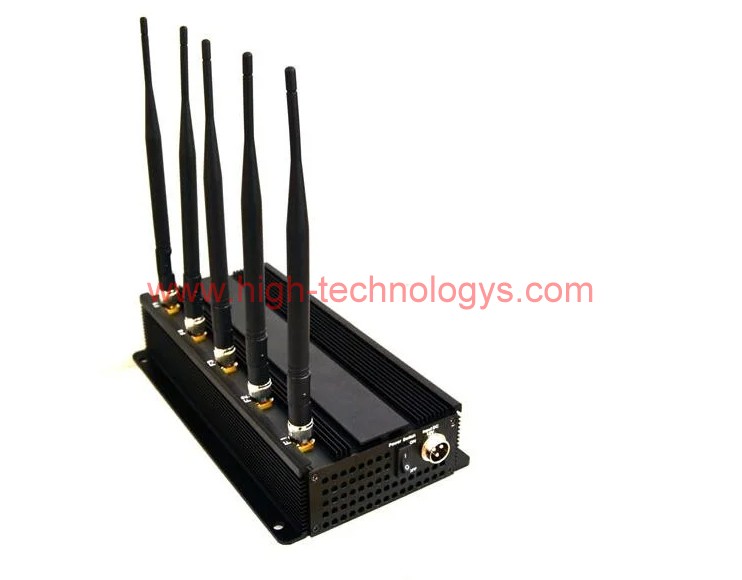

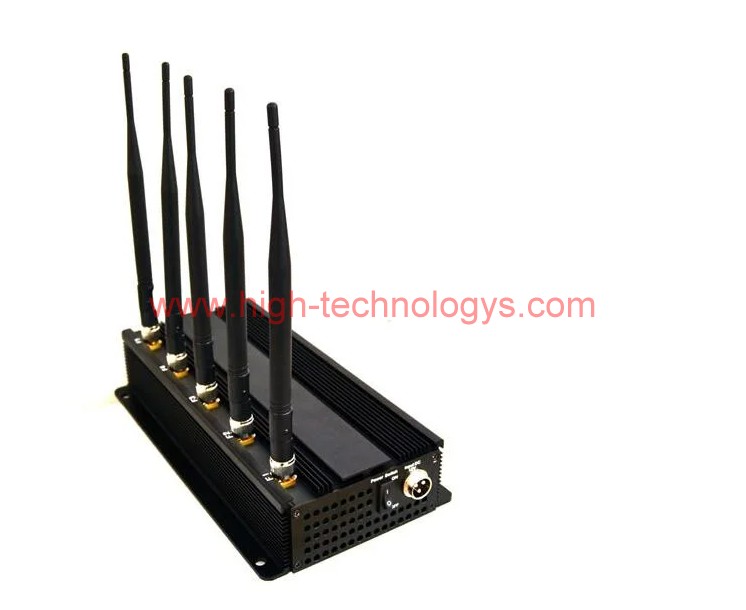

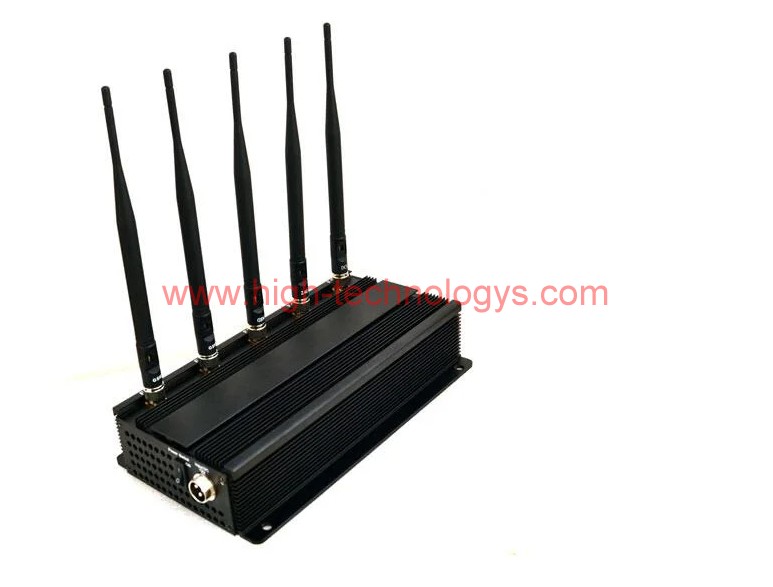

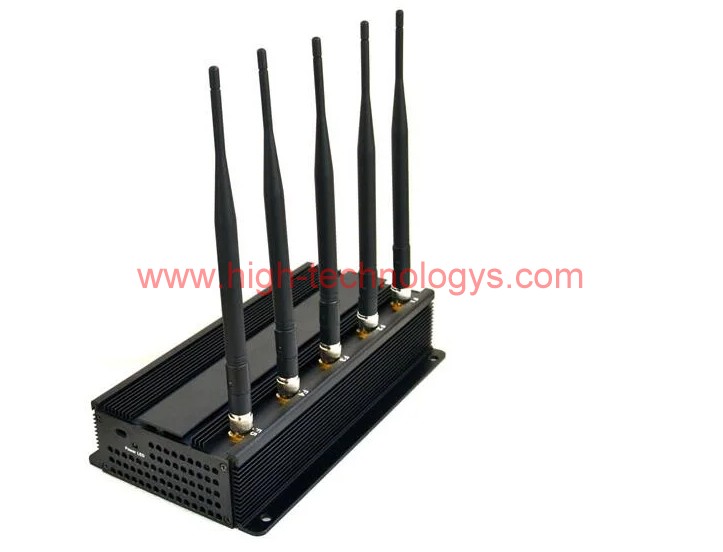

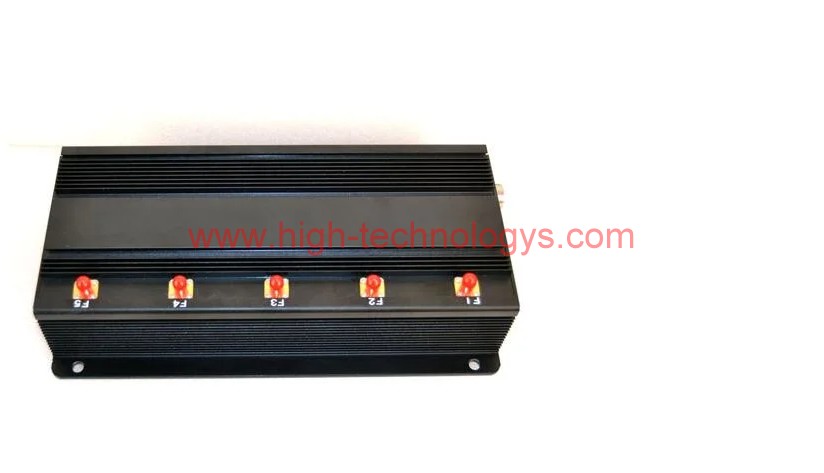

5 Bands Desktop Mobile Phone Cell Phone Jammer
Product Name : 5 Bands Desktop Mobile Phone Cell Phone Jammer
Product ID : HAG-CD5
Total output power : 11W
Jamming range : up to 40m, the jamming radius still depends on the strength signal in given area
Affected Frequency Ranges : CDMA 870-880MHz 34.5dBm 5dBm/30KHz(min) GSM 930-960MHz 34.5dBm 5dBm/30KHz(min) DCS 1805-1880MHz 33dBm -2dBm/30KHz(min) PCS 1930-1990MHz 33dBm -2dBm/30KHz(min) 3G 2110-2170MHZ 33dBm -2dBm/30KHz(min) WIFI2.4G 2400-2500MHz
Power supply : 50 to 60Hz, 100 to 240V AC
Dimension : 257 x 140 x 51mm
Directions
Product Description
Specifications:
Cover interface standards:
CDMA 870-880MHz 34.5dBm 5dBm/30KHz(min)
GSM 930-960MHz 34.5dBm 5dBm/30KHz(min)
DCS 1805-1880MHz 33dBm -2dBm/30KHz(min)
PCS 1930-1990MHz 33dBm -2dBm/30KHz(min)
3G 2110-2170MHZ 33dBm -2dBm/30KHz(min)
WIFI2.4G 2400-2500MHz 30.5dbm -5 dBm/30KHz(min)
OR GPS 1570-1580 31dBm 5dBm/30KHz(min)
-
- You can select five of above frequency bands you need in a jammer
- ODM and OEM orders are welcome
- Total output power: 11W
- Jamming range: up to 40m, the jamming radius still depends on the strength signal in given area
- External Omni-directional antennas all the TX frequency covered down link only
- Power supply: 50 to 60Hz, 100 to 240V AC
- With AC adapter (AC100-240V-DC12V),
- Dimension: 257 x 140 x 51mm
- Full set weight: 2.5kg
- Advantages:
- Good cooling system with cooling fan inside
- Work non-stopped
- Stable capability
- Could be used in car directly,With car charger
- Application Area:
- it can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more
- For some locations of special purpose such as hospitals, gas stations and more, Please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
