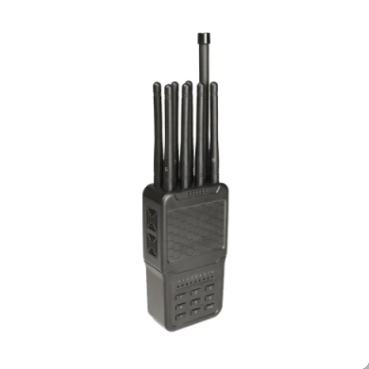

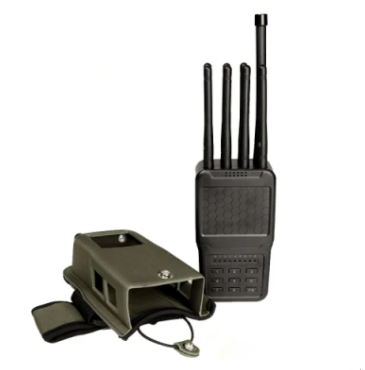

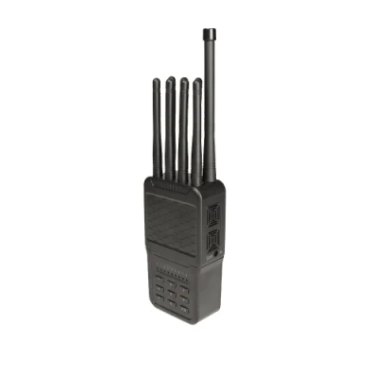

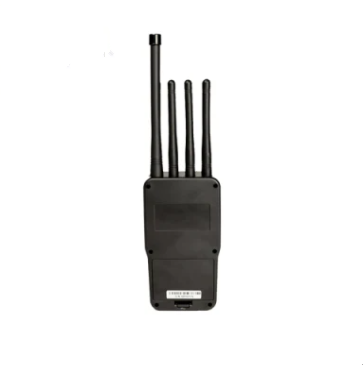

8 Antennas 315 433 868MHz Jammer Frequency Selectable Pocket Size Signal Blocker
Product Description
As the most popular handheld jammer which has a small size, easy to carry. It can block multiple frequencies, and have a very large jammer range. With a separate frequency control switch, you can select the frequency range that needs to be disturbed as needed. This product has the perfect heat dissipation system, can work long time. The shell is made of high quality metal with good heat dissipation.
This device is suitable for classroom, meeting room, library, movie theater and other places where it needs to keep quiet. Due to its small size and easy to hide, the device is popular with teachers and administrators.
Basic Features:
(1) Long battery life (>1.5hours)
(2) Compact Size and easy carry
(3) Multiple bands ,Individual channel on/off selector switches
(4) This handheld jammer can block WIFI 2.4G,5.8G.
(5) For each frequency band, it has a separate switch.
(6) The 4 watt design high power ensure efficient jamming effect
(7) Jam up to 20m, depending on the signal strength.
(8) Can be used in car.
(9) Don't put the jammer into the water or fire to avoid using in the bad Condition like over-wet, over-hot, high voltage and high magnetism.
Advantages:
Handheld design with ABS plastic shell, Small, Palm-size;
Easy to carry, Pocket-size, Hang or wear on the arm or belt;
High output power, Can shield all common phone signal around radius 5-20m;
Stable performance, Wind hole on two sides and inside coolers make a constant cooling working, The temperature will be less than 50 after continues work 1.5 hours;
Power supply using big capacity lithium battery: :4700mA/h, Rechargeable with AC charge and Vehicle DC12V charge, full time about 4Hours,Working time:90 minutes;
Each band can work separately or simultaneously.
Personalized custom: For different area or devices to customize different types of frequency signal, include Wi-Fi 5.8Ghz signal.
Applications:
Border control units, checkpoint personnel, Meeting rooms, Hospitals, Banks, Churches, Conference Rooms, etc
Packing Contents:
1 piece portable signal jammer
1 piece AC adapter
1 piece car charger
Omni- antenna 8 pieces
All Parameters:
|
Type A |
|||
| Channel | Output port | Frequency range | Out-putting power |
| 1 | Wi-Fi 2.4G | 2400-2500MHz | 28.5dBm |
| 2 | GPSL1 | 1570-1580MHz | 28.5dBm |
| 3 | CDMA/GSM | 851-960MHz | 29dBm |
| 4 | LOJACK | 167-175MHz | 29dBm |
| 5 | 4G WiMAX | 2500-2690MHz | 28.5dBm |
| 6 | DCS/PCS | 1805-1990MHz | 28.5dBm |
| 7 | 4G1 LTE | 700-803 or 790-862MHz | 29dBm |
| 8 | 3G | 2110-2170MHz | 28.5dBm |
| Type B | |||
| 1 | Wi-Fi 2.4G | 2400-2500MHz | 28.5dBm |
| 2 | GPSL1 | 1570-1580MHz | 28.5dBm |
| 3 | CDMA/GSM | 851-960MHz | 29dBm |
| 4 | WIFI 5.8G | 5725-5850MHz | 27dbm |
| 5 | 4G WiMAX | 2500-2690MHz | 28.5dBm |
| 6 | DCS/PCS | 1805-1990MHz | 28.5dBm |
| 7 | 4G1 LTE | 700-803 or 790-862MHz | 29dBm |
| 8 | 3G | 2110-2170MHz | 28.5dBm |
| Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC) | |||
| Dimensions: (length ,width, height) 163*85*43mm (not include antenna) | |||
| Packing size: 250x240x100cm Net weight: 1kg Gross weight: 1.35kg |
|||
| Total power: 4W Shielding radius: (2-20) meters at -75dBm Still depends on the strength signal in given area Built-in battery:7.4V/4700mAh Continue working: 1.5 hours |
|||
| Warranty: one year from delivery date | |||
