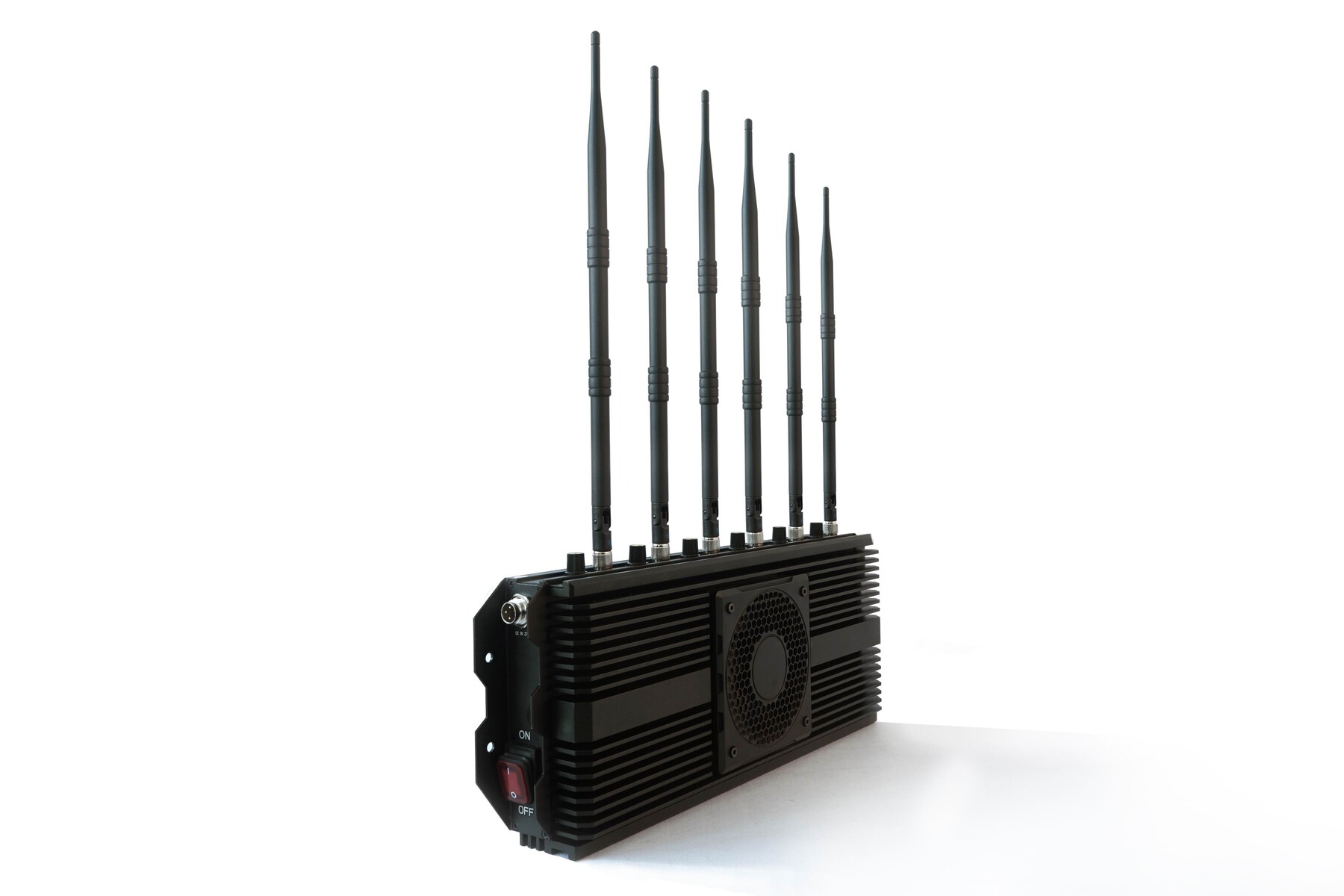

Do you have such ideas that you can use a mobile phone jammer whenever and wherever or you can also apply it at a large area? We suggest this Adjustable 80W High Power Cellphone Jammer & WiFi Jammer Up to 150 Meters Range, which will meet your demand perfectly.

This is an adjustable 80w up to 150 meters range high power cell phone jammer and WiFi jammer featured with high power and multiple 2G/3G/4G and WiFi signal jamming , which can be powerful for you. As an adjustable high power cell phone and wifi jammer, it can be adjusted according to various occasions and your requirements, which will make everything easy for you. Besides, with a 80 watt power, this high power signal jammer can interfere with the cell phone working efficiently, it will allow you to use it at a wide scope at the same time while you don’t have to use more amount of jammers to enhance the working area, and it can also allow the maximum distance range of 150 meters to the covering area. At the same time, this cell phone and wifi jammer also matches a cooling fan, then it will make continuous work easy to carry on with better cooling system. An AC 110V~220V main power had already been adapted by this adjustable signal jammer will make it easy to use when there exist sockets.

What is important is that this jammer can also be used to customer tailor the frequency bands you want. Welcome to supply frequencies and we will customize for you.

Specifications

• Affected Frequency Ranges

1. Europe/Asia/Africa/Middle East Market
   -CDMA800:869-894MHz
   -GSM900:925-960MHz
   -GSM1800:1805-1880MHz
   -3G WCDMA:2110-2170MHz
   -WiFi2.4GHz:2400-2485MHz
   -4G 2600:2620-2690MHz
   -4G 800:780-830MHz

2. American Market
   -CDMA850:851-894MHz
   -PCS1900:1920-1990MHz
   -3G CDMA2000:2110-2170MHz
   -WiFi2.4GHz:2400-2485MHz
   -4G 2300:2300-2400MHz
   -4G 700:725-770MHz

• Power supply: AC110V~220V/ DC24V

• Total Power: 80Watt

• Power consumption: about 350W

• Shielding Range:Up to150 meters (Still determined by your given environment

• Weight(without Omni antennas): about 5.3Kg

• Device Size:41.5*17.5*7.5CM

Installation Steps

1) Connect the antennas.

    Try to connect the other end of the cable to the antennae .Please keep the correct antennas to the interface on the device.

    Make CH1 to CH1, CH2 to CH2, CH3 to CH3 and CH4 to CH4 ,CH5 to CH5,CH6 TO CH6.

    Try to screw the antennas tightly manually.

2) Connect the jamming device to power supply.

3) Start the jammer Plug the power supply adaptor to the AC power supply and you will find the indicator light on the adaptor.

4) The machine running into normal working, the fans inside the jammer start to work, there is some noise from device inside.

    The jamming system enters into normal working status.

5) Once you stop the jammer, switch off it, and then the device will stop working.

6) As this jammer is a high power jammer, it is normal the jammer machine will get hot after it continuously work for some time.

7) Please try to put the device in a higher position while it is working. The advised height is about 2 meters between the jammer and the floor, to avoid the loss of function of the device, please avoid the device placed near some metal materials.

8) Do not switch on the device before the antennas are not installed, If the antenna is not properly installed in accordance with the manuals, the shielding range will be not so good. Even the device will be burned and damaged. Make sure the correct installation of theantennas.

Accessories

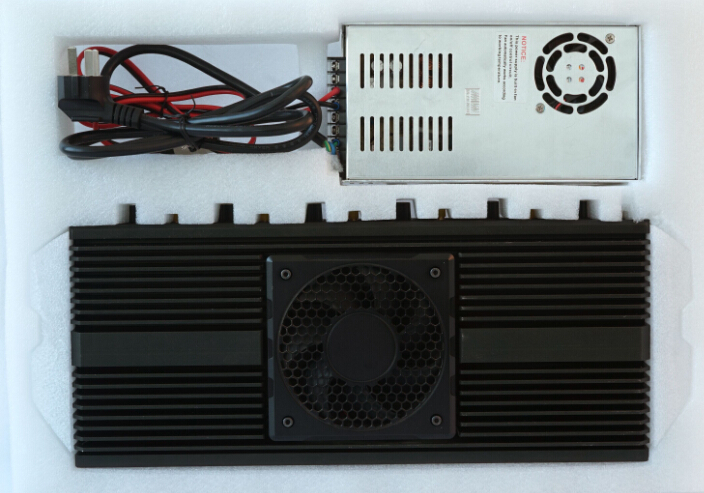

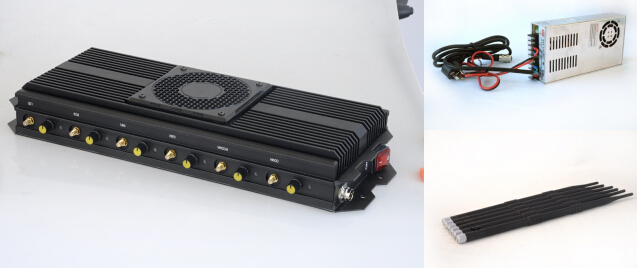

• 80W High Power Cellphone WiFi Jammer x 1

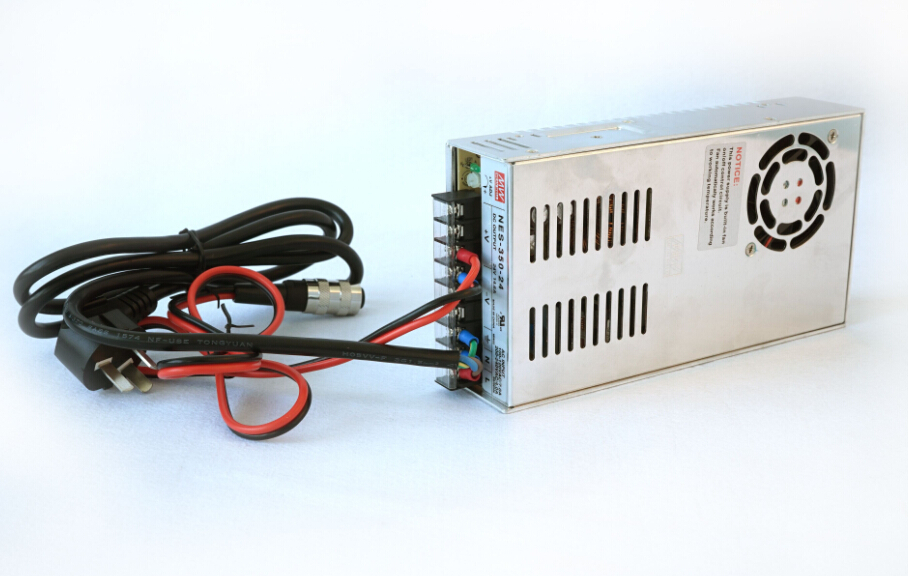

• Power Adaptor x 1

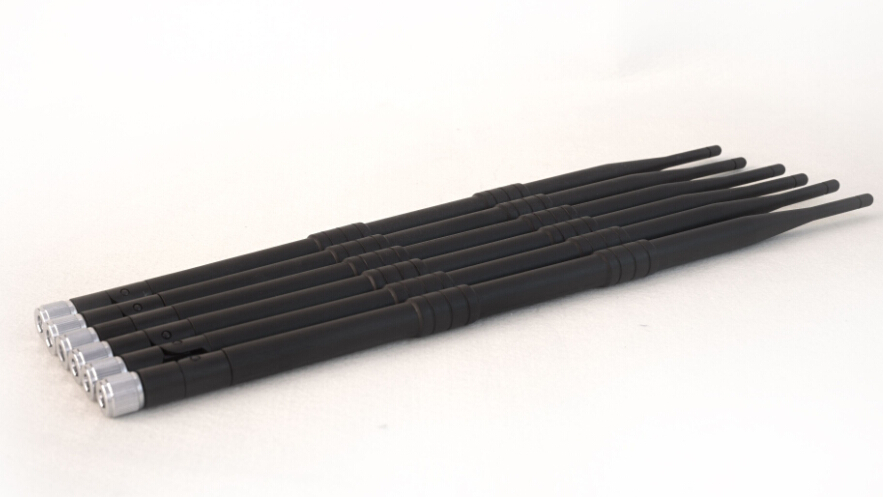

• Antenna x 6
