All-in-One Adjustable Desktop Cell Phone Signal 2G/3G/4G + All GPS + RC + UHF/VHF+ WiFi 2.4G 5.2g 5.8g Jammer with 18 Antennas
Product Description
Product Description
This is the newest model with 18 antennas, which can block all cell phone siganls, all GPS bands, 2.4G 5.2 G 5.8G WiFi, RC signals, VHF, and UHF at the same time. And this Adjustable Desktop Cell Phone Signal 2G/3G/4G + WiFi 2.4G 5.2G 5.8G + All GPS + RC + UHF/VHF Jammer With 18 Antennas is adjustable and built-in 5pcs cooling fan to support non-stop working.
Application Area
-
It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more
-
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
Advantages
-
All in one with 18 bands frequency, including 5G.
-
With Infrared remote control, Remote switching power ON/OFF is possible.
-
Good cooling system with 5 cooling fans inside, to make it work non-stopped.
-
Low noise.
-
Can adjust or turn off any single band without influencing the other bands operation
-
Stable capability.
-
Could be used in car directly, with DC 12V Car storage battery charger.
Specification
|
Working Frequency Bands: |
|||
|
Channel |
Output port |
Frequency range |
Average out-putting power |
|
1 |
CDMA |
851-894MHz |
35dBm |
|
2 |
GSM |
925-960MHZ |
35dBm |
|
3 |
DCS/PCS |
1805-1990MHz |
35dBm |
|
4 |
3G |
2110-2170MHZ |
35dBm |
|
5 |
4G LTE |
790-826MHz or 725-770MHz |
35dBm |
|
6 |
4G Wimax |
2620-2690MHz or 2345-2400MHz |
35dBm |
|
7 |
GPSL1 |
1570-1580Mhz |
35dBm |
|
8 |
GPSL2+L5 |
1170-1280MHz |
35dBm |
|
9 |
GPSL3+L4 |
1370-1390MHz |
35dBm |
|
10 |
Lojack |
167-175 MHz |
35dBm |
|
11 |
VHF |
135-174MHz |
35dBm |
|
12 |
UHF |
400-470MHz |
35dBm |
|
13 |
WiFi 2.4G |
2400-2500MHz |
35dBm |
|
14 |
WiFi 5.2G |
5100-5600MHz |
35dBm |
|
15 |
WiFi 5.8G |
5600-5900MHz |
35dBm |
|
16 |
315 (Car Remote Control) |
315 MHz |
35dBm |
|
17 |
433 (Car Remote Control) |
433MHz |
35dBm |
|
18 |
868 (Car Remote Control) |
868MHz |
35dBm |
|
Power supply: AC adapter (AC110V220V-DC12V) |
|||
|
Shielding Radius: (10-40) meters@-75dBm still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal. |
|||
|
Dimension: (width, height, length) 450x240x60mm Net weight: 7kg |
|||
|
Total output power: 48W |
|||
|
Full set weight: 7.5KG |
|||
|
Ambient Temperature: ±10ºC - 50ºC |
|||
|
Relative Humidity: ≤80% |
|||
|
Power Consumption: ≤360W |
|||
|
Power Input: AC110V/220V,DC12V |
|||
|
Antenna Parameters: Omni antennas,gain:2~3dBi |
|||
|
Switch Control: Manually |
|||

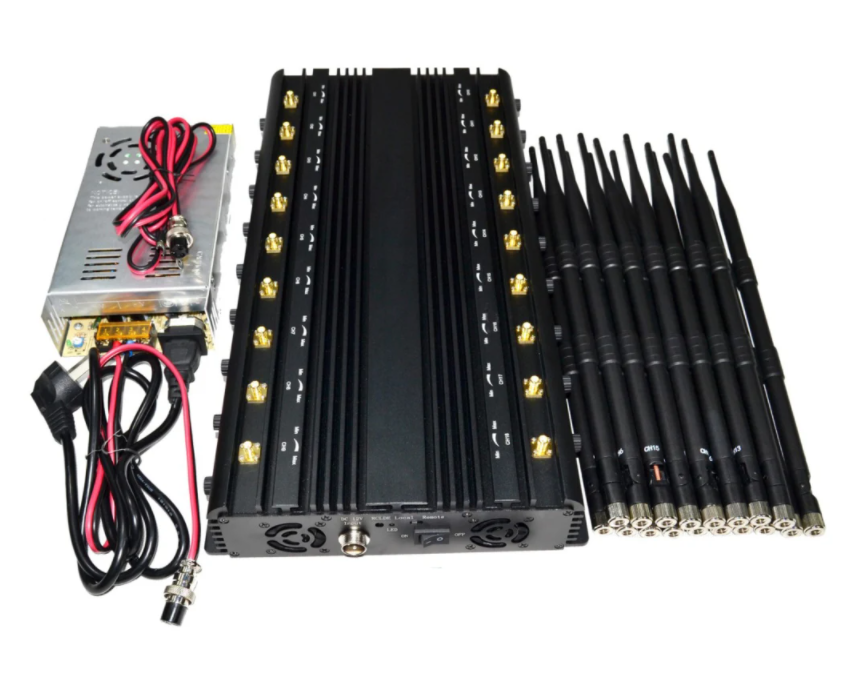

Package Contents
-
Jammer Host x 1
-
AC Adapter x 1
-
Car Adapter x 1
-
Antenna x 18
-
