Have you ever thinking that the devices that designed for blocking remote controlled improvised explosive devices used by terrorist can be gained now? Here this 400W Digital VIP Protection Bomb Jammer with Remote Control and Monitoring you are viewing here just owns such kind of function.

Firstly, looking at the jamming ability of this VIP Protection Bomb Jammer you will know it is powerful since it can cut off the signals of 20 - 100 MHz, 100 - 500 MHz, 500 - 750 MHz, and 750 - 1000 MHz at the same time and depending on the signal strength in the detailed place the shielding range is 50-200m at standard environment and the jamming radius depends on several conditions such as transmitter frequency and output power, distance to receiver, and obstacles between, etc.

Besides this high power digital VIP protection bomb jammer is designed with high input voltage and low voltage protection and VSWR protection against antenna miss-match including open and short circuit.  Also this high power remote controlled VIP protection bomb signal blocker owns the over Heat protection - thermal protector and over current protection design as well. What’s more, the remote control and monitoring, output power LCD Indication, output power adjusting per Band and Bandwidth adjusting within Band by LCD and output power ON/OFF per band design have also been applied on this VIP protection bomb jammer as well. Also the state-of-art technology for maximum performance and jamming the signals transmits to activate bombs has also been used on this VIP protection bomb jammer as well.

For more details of this VIP protection bomb jammer you can just come here and have a look at the following specifications then.

Technique specifications

RF Characteristics

• Output Power: 400 watts

• Range Jamming: 50-200m at standard environment

• Internal Modulation: Direct Digital Synthesis

• Power Supply: 220VAC/24VDC/300A

• Sweep rate: Fixed

• Operating hours: 24 hours

Power Amplifier Protectors

• Over Heat protection - thermal protector.

• Over current protection.

• High input voltage and low voltage protection.

• VSWR protection against antenna miss-match including open and short circuit.

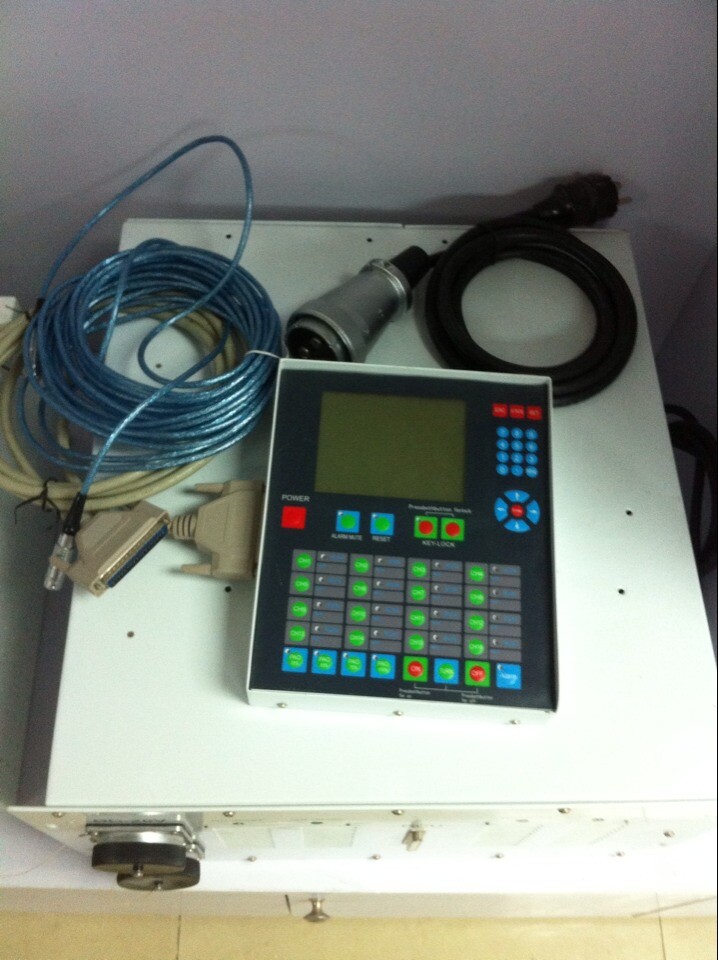

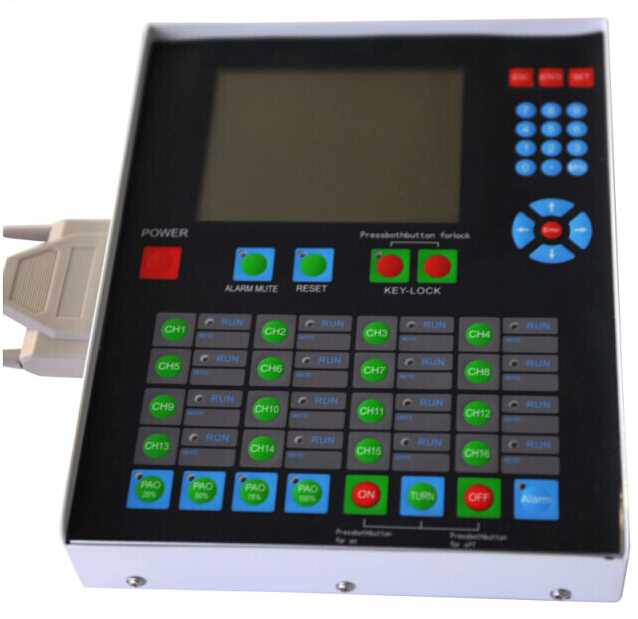

Remote Control and Monitoring

• Output power LCD Indication.

• Output power adjusting per Band and Bandwidth adjusting within Band by LCD.

• Output power ON/OFF per band.

Antenna: External Broadband Omni-Directional Antenna
Frequency                Gain               Handling Power              VSWR

20 - 100 MHz           6 dBi               500 watts                <3:1

100 - 500 MHz          6 dBi               500 watts                 < 2:1

500 - 750 MHz          3 dBi               500 watts                  < 2:1

750 - 1000 Mhz         6 dBi               500 watts                   < 2:1

Jamming Frequency Range

• Frequency Band: 20 to 1000 MHz (You can select 4 bands at most from the above frequency bands)

Environment of Operation

• Operating Temp.: -10?C to +70?C

• Humidity: 0% - 90%

Physical Data

• Dimensions: 482*400*255mm

• Weight: 35kgs

Accessories

• 4 pcs Broadband Omni Directional Antennas

• 4 pcs Cables with connectors for Installing Antennas

• 1 pcs Wire Remote Control and Monitoring

• 1 pcs Power Supply: 220VAC/24VDC/300A
