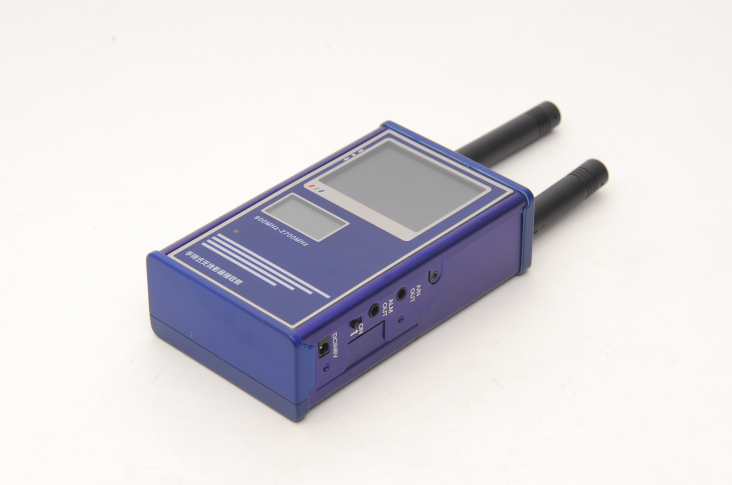

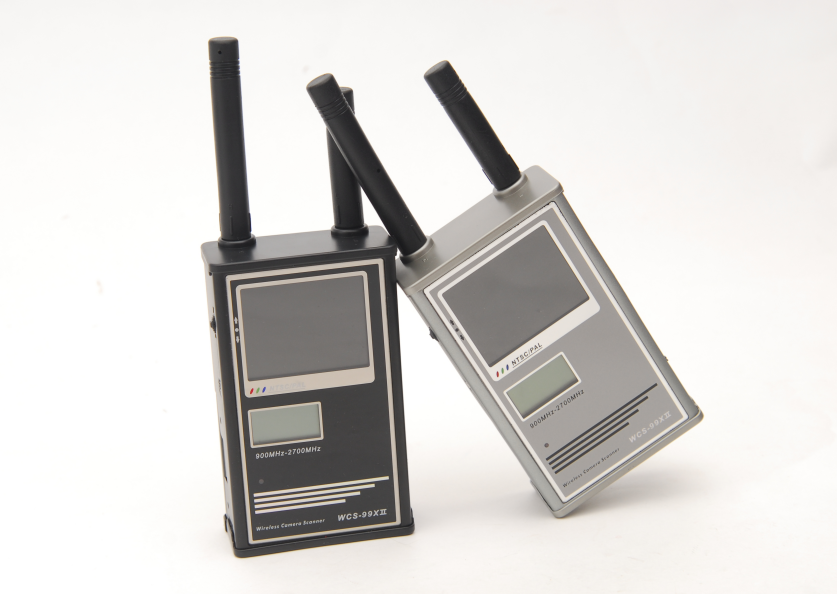

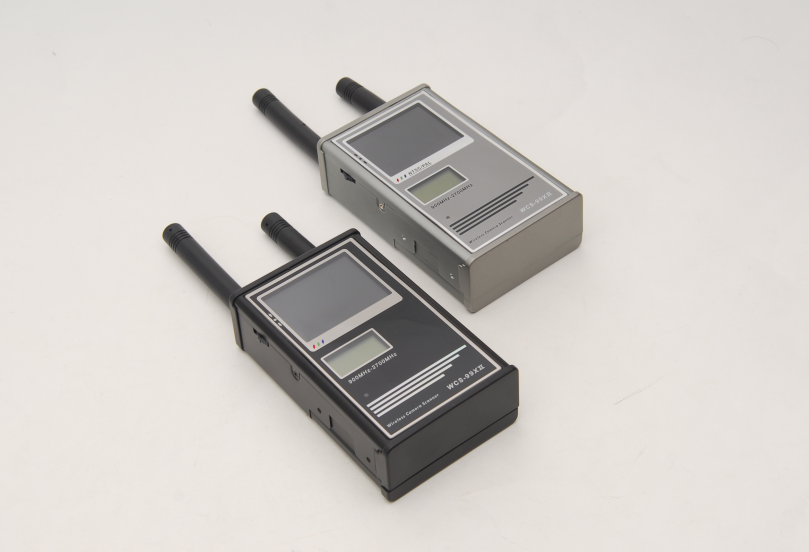

Portable Wireless pinhole camera detector/ scanner is the high technology product. Used to detect wireless spy products in certain range. The unit can automatically search and receive the wireless signal and display the on line image. The security guard can find the hidden wireless spy camera easily by the image.

Advantage

• Full-design

• Automatic Scan

• 2.5-inch screen effects clear

• Real-time monitoring

Working area

The Portable Wireless pinhole camera scanner is forbidden to use for spy, snooping or any other illegal offences.

• Hotels, restaurants to avoid spy or snooping;

• Dressing room in shopping mall;

• Private office;

• Business meeting rooms

Specification

• Scanning frequency: 900MHz ~ 2700MHz

• Working range: 1－50meters

• Action automatic scanning / Manual

• Automatic scanning and 20 seconds / time (H) - 10 sec / times (MH, M, ML, L)

• Manually scanning fine-tuning: 1 MHz / times / Shuttle: 10 MHz / sec.

• Antenna Omni-directional antenna (SMA)

• Panel Display: 2.5-inch LCD

• TFT color screen / black and white

• Access System PAL / NTSC - CCIR / EIA

• The largest current consumption largest 650mA

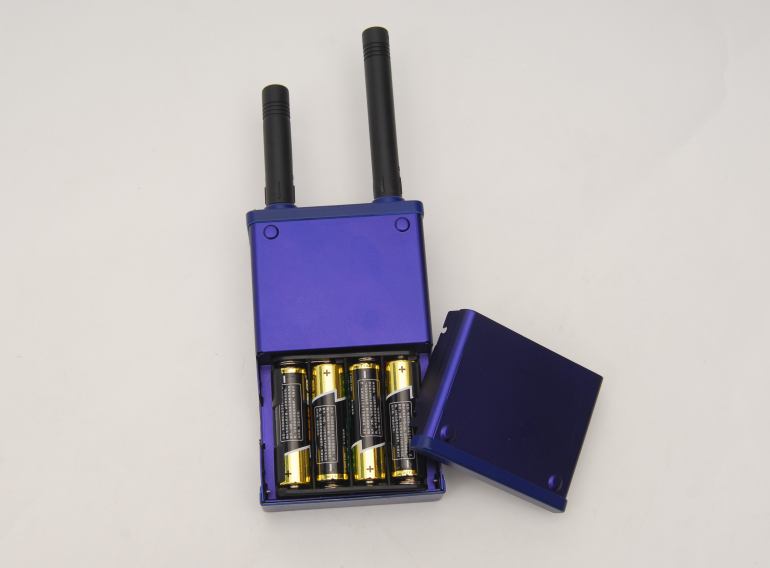

• Battery life time of 3 to 5 hours (alkaline batteries AA/1.5 V/4)

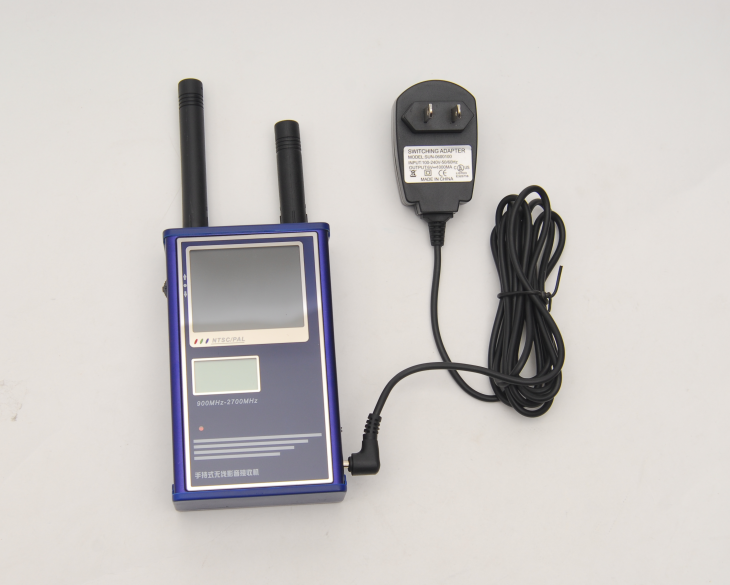

• Power supply input: 100 ~ 240 VAC 50/60Hz 0.4A / output: 6VDC 1A

• Antennas: 82 mm

• Short antenna: 58 mm

• Main Unit Size: 120*74*35 mm

• Product Weight: 250g

• Package Size: 300*200*75mm

• Package Weight: about 1kg

Packing list

• Scanner equipment *1

• Antenna *2

• Transformer *1

• Video output adapter (3.5 phone to RCA) *1

• Earphone *1

• Manual *1
