Handheld Muti-functional Hidden 16 Antennas 5G Jammer Cell Phone WiFi GPS UHF VHF RC All In One Signal Blocker
Product Description

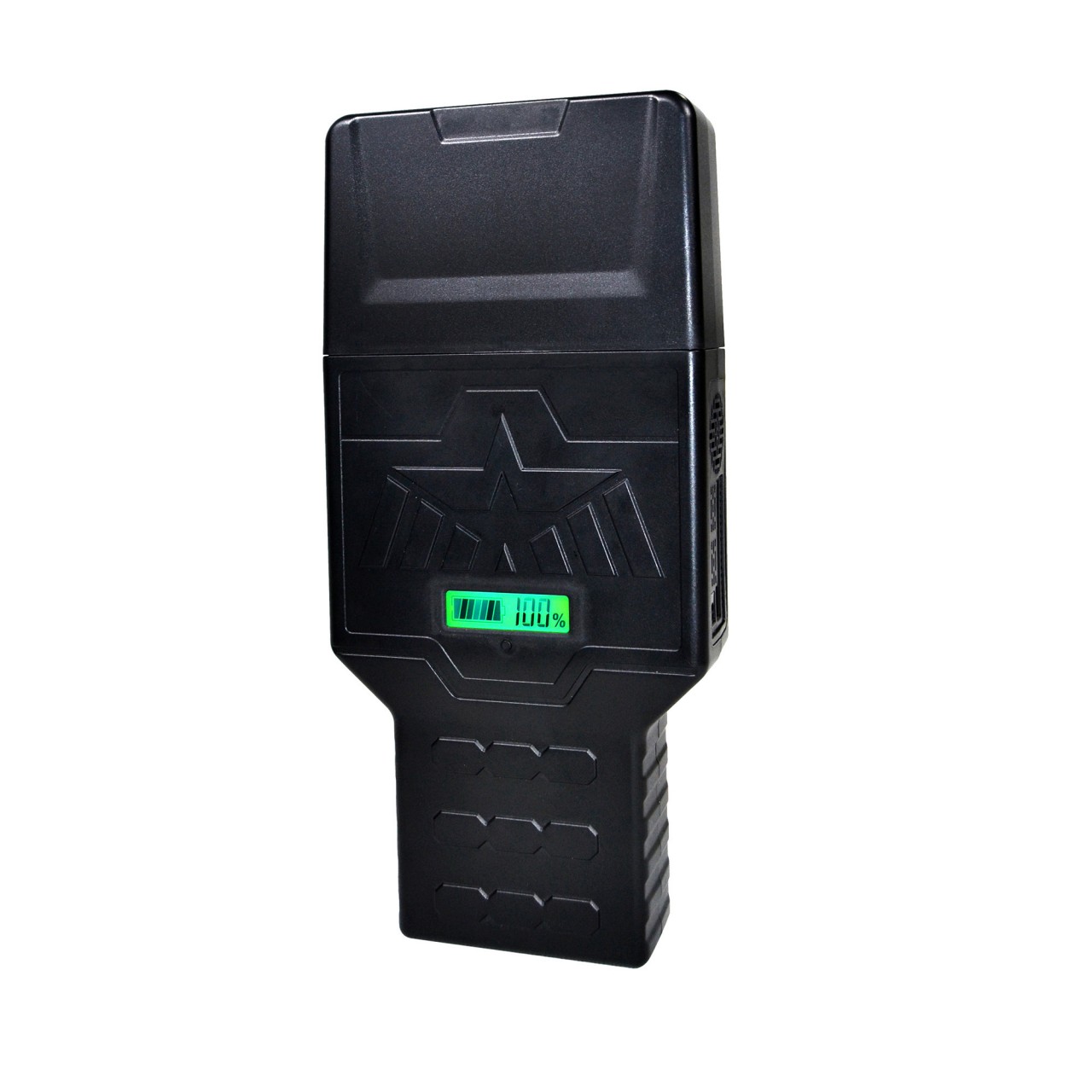

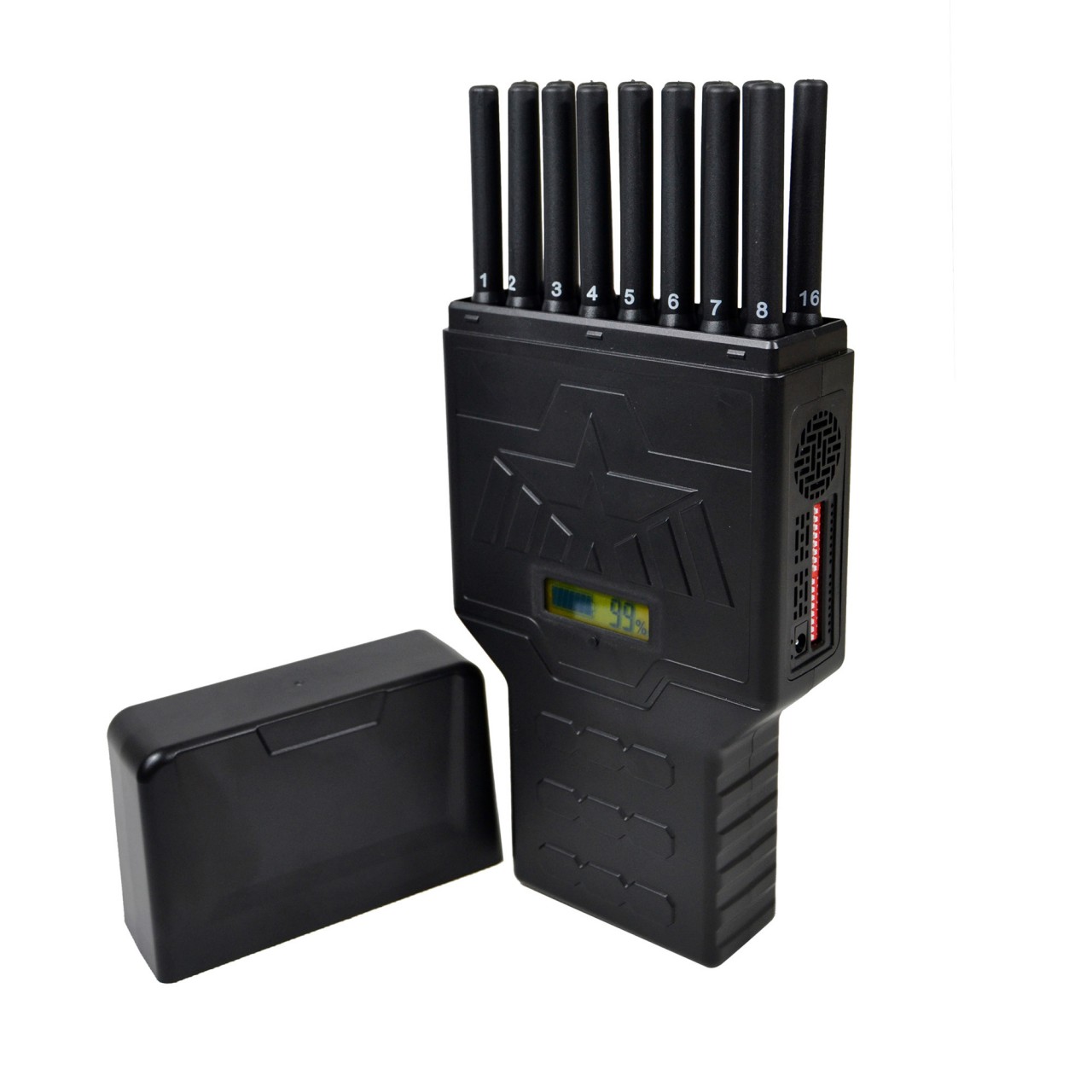

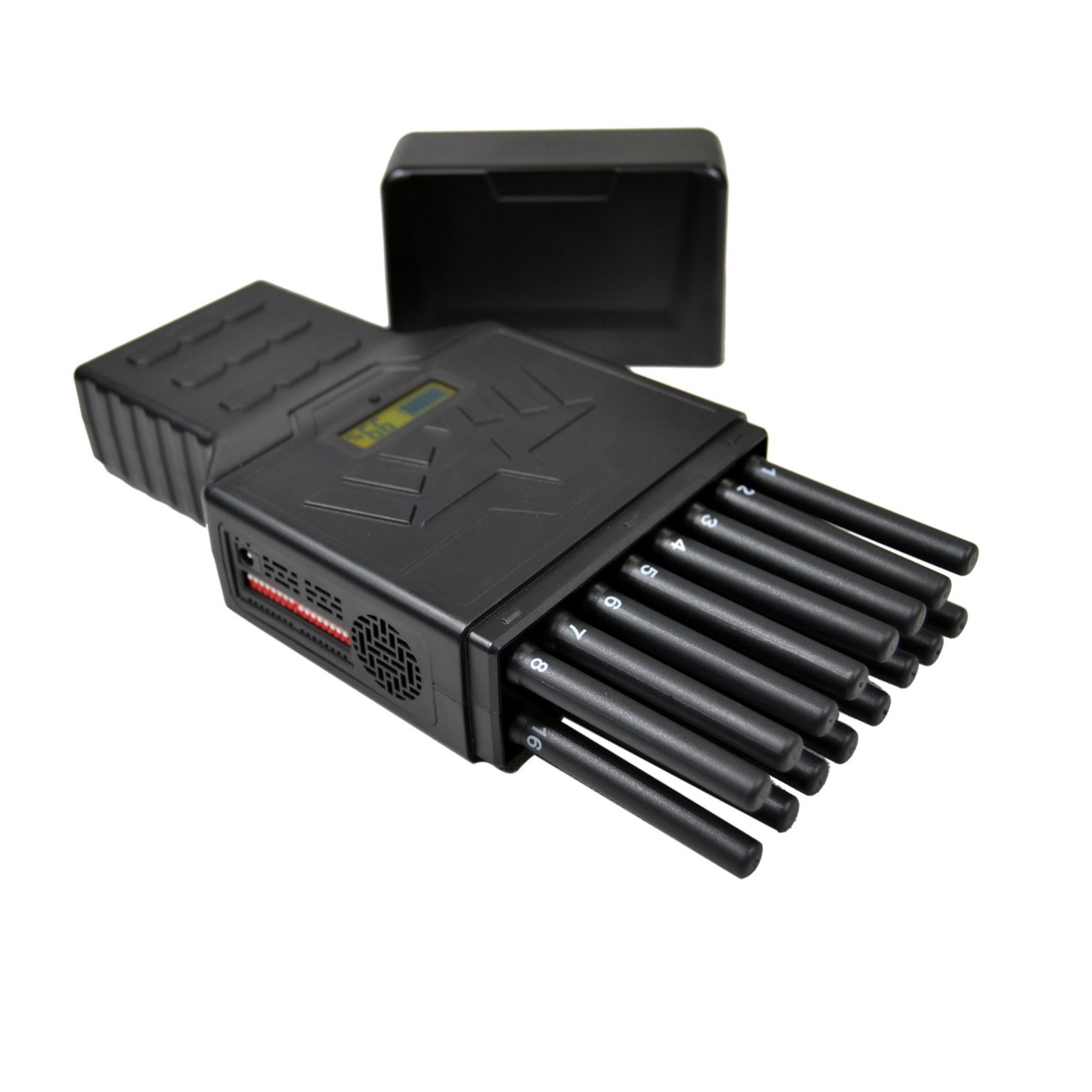

This signal jammer blocks LOJACK GPS, Wi-Fi 5G, Walkie-Talkie UHF/VHF and RF signals like 315, 433, 868. It contains two sets of antennas, one is the shorter antennas set, which can be hidden in the antenna cover, easier to carry and private to use. Another one is a set of longer high gain antennas, which make the device effects better. Compared to previous jammer devices, its new design with a battery LCD display, you can easily know the left battery capacity.This new designed jammer is popular in 2020 and in years to come.
Advantage
- Hidden antenna handheld design;
- 16 bands all-in-one frequencies blocking all cell phone signals including the newest 5G, LOJACK GPS, Wi-Fi, RF signals;
- 12 watt high output power, Jamming range 2 to 20 meters (at-75dBm, depends on signal strength in given area);

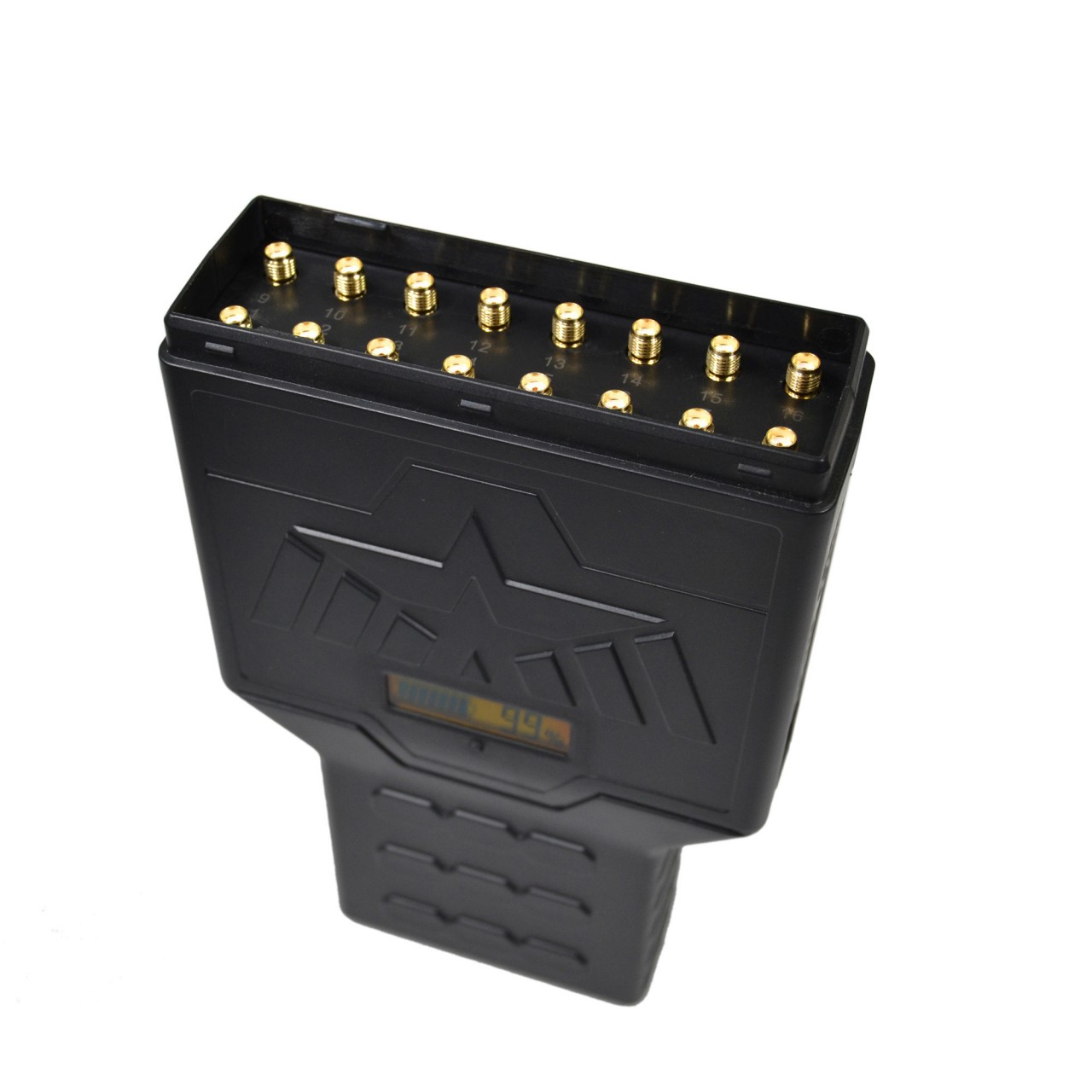

- Two sets different length antennas used in hidden or have better jamming effect;
- Battery capacity LCD display (Capacity percentage, working Voltage/Current ABS Shell with good cooling system with cooling fans inside and bigger hot sink, temperature lower than 50℃

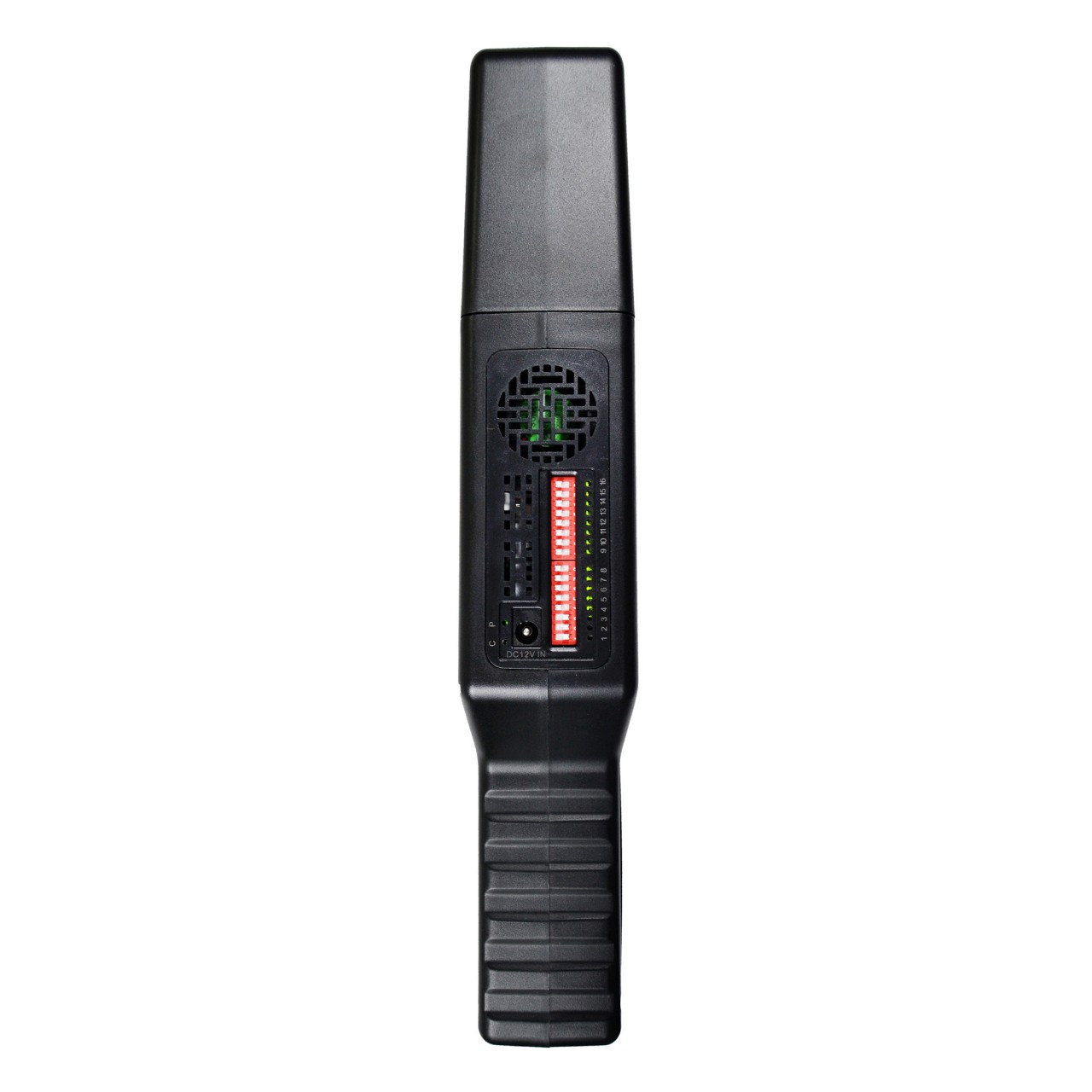

- With DIP switch, can turn on/off any signal band without affect other bands;
- With car charger, 12V DC/AC power supply is also available;
- With built-in bigger battery, can work more than (2.0+ hours) 120 minutes, Easily repeated charging.
Application
- It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
- For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
Specification
-
Affected Frequency range
|
1 |
CDMA & RC868 & GSM: 851-960 MHz |
28.5 dBm/0.7 W |
|
2 |
DCS & PCS: 1805-1990 MHz |
28.5 dBm/0.7 W |
|
3 |
3G 2100: 2110-2170 MHz |
28.5 dBm/0.7 W |
|
4 |
4G 700: 700-803 MHz or 758-826 MHz |
28.5 dBm/0.7 W |
|
5 |
4G2300 or 4G2300: 2500-2690 MHz or 2300-2400MHz |
28.5 dBm/0.7 W |
|
6 |
RC315: 315 MHz |
28.5 dBm/0.7 W |
|
7 |
RC433: 433 MHz |
28.5 dBm/0.7 W |
|
8 |
5G LTE: 3400-3800 MHz |
28.5 dBm/0.7 W |
|
9 |
5G LTE2: 617-685 MHz or 1427-1518 MHz |
28.5 dBm/0.7 W |
|
10 |
WiFi 2.4G&4G2300: 2345-2500 MHz |
28.5 dBm/0.7 W |
|
11 |
WiFi 5.2G: 5100-5500 MHz |
28.5 dBm/0.7 W |
|
12 |
WiFi 5.8G: 5500-5900 MHz |
28.5 dBm/0.7 W |
|
13 |
GPSL1: 1570-1580 MHz |
28.5 dBm/0.7 W |
|
14 |
GPSL2L3L4L5: 1170-1390 MHz |
28.5 dBm/0.7 W |
|
15 |
VHF & Lojack: 135-174 MHz |
28.5 dBm/0.7 W |
|
16 |
UHF & CDMA450: 400-470 MHz |
28.5 dBm/0.7 W |
-
Power supply: adapter 50 to 60 Hz AC (110-240V AC/12V DC) Car Charger: DC12V IN
-
Dimensions: (length ,width, height) 280x130x46 mm (include hidden antenna)
-
Length of antenna :166 mm
-
Gain:2.0 dbi
-
Packing size: 330*250*80 mm
-
Net weight: 1.5 KGS
-
Gross weight: 2.0 KGS
-
Total power: 12 W
-
Shielding radius: From 2 to 20 meters at -75 dBm (Still depends on the strength signal in given area)
-
Built-in battery:7.4V/12000 mAh Continue working: more than 2 hours
-
Warranty: One year from delivery date

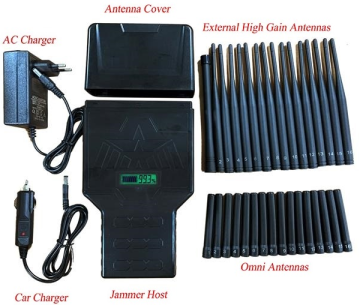

Package Content
-
Jammer Host x 1
-
AC Charger x 1
-
Car Charger x 1
-
Omni antenna x 16
-
External high gain antenna x 16
