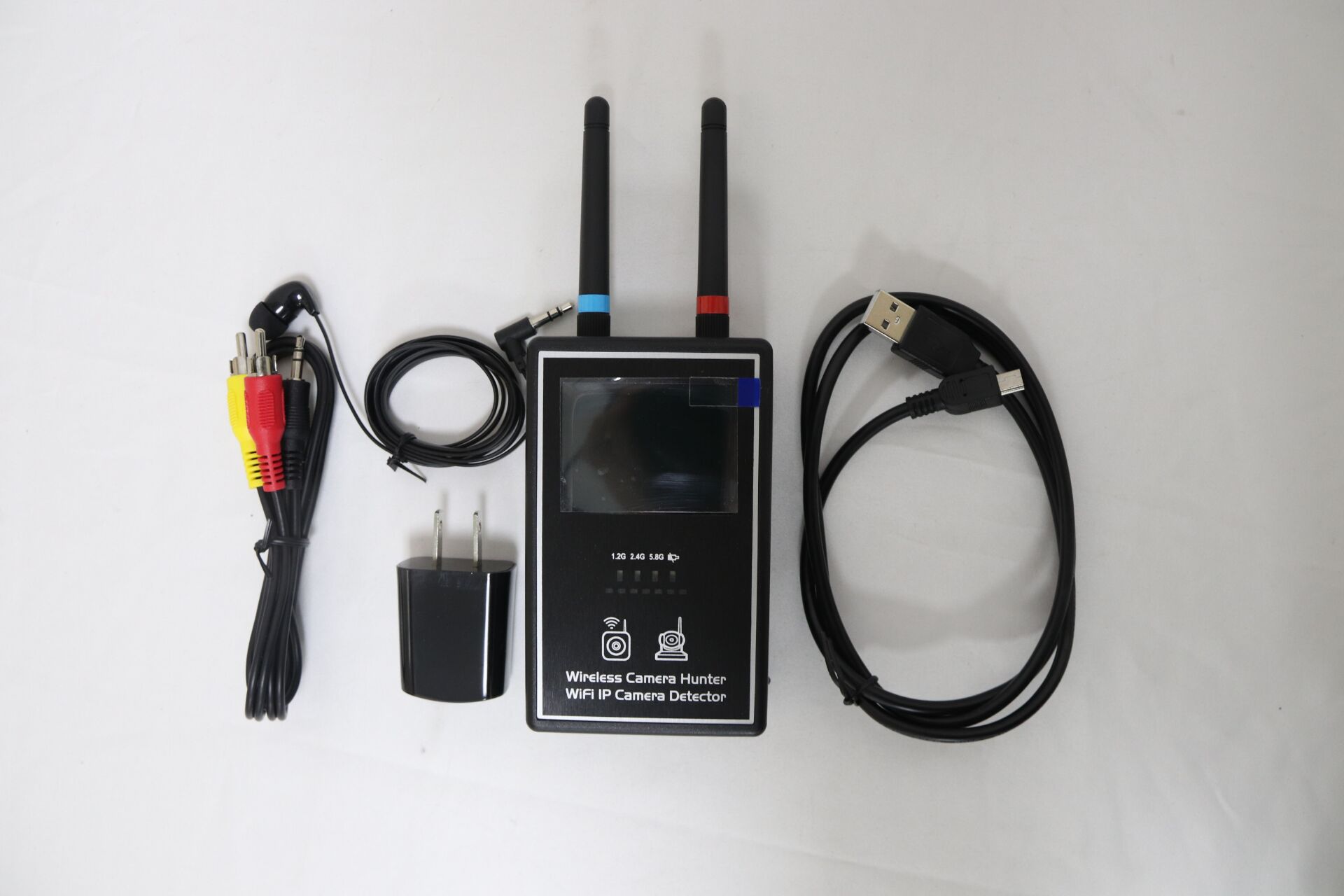

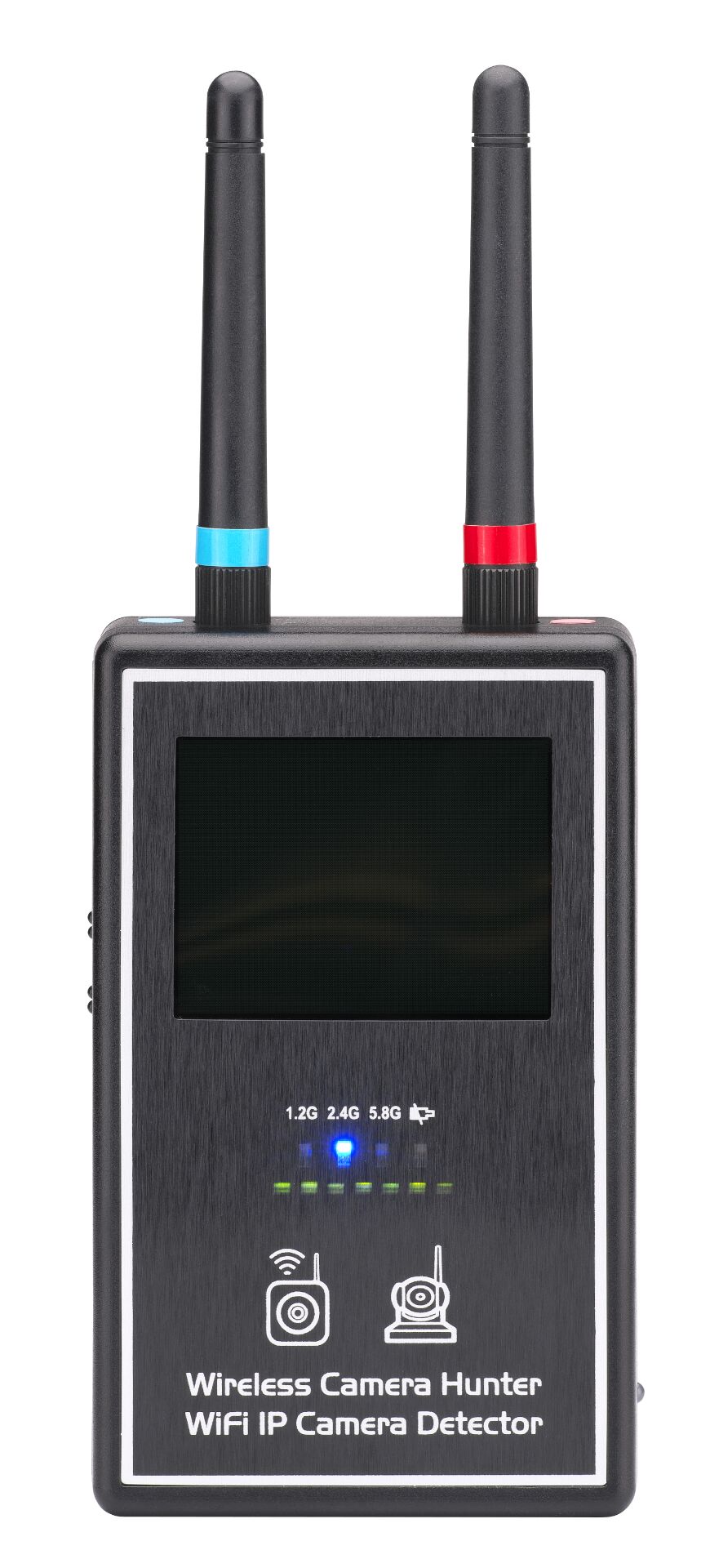

Mini Wireless Camera Hunter WiFi IP Camera Detector
This device will display the frequency of received video signal.
AUDIO & VIDEO output
This device has an AV output for recording the received audio and video signals.
Power saving
The screen will shut down automatically if do not receive video signal to save half of the power consumption.
SENSITIVITY ADJUSTMENT
This device has a sensitivity tuner with number 9 ~ 1, special for "WiFi IP camera scan mode" only. Default at 9 is the highest sensitivity.
Lower the sensitivity can reduce the detecting distance, according to this way, can approach to the location of WiFi IP camera.
Support of Power bank
This device has a USB port for connecting with power bank to extend the working time in outdoors. A 7000mA power bank can last for continuous scan about 15 hours.
Specification (Change of specification without prior notice)
|
Dimension |
L 11.6 x W 7 x T 3.3 cm (including antenna: L 19 cm) |
|
Weight |
about 215g (not include battery) |
|
Power |
1. Switching power adaptor 2. AAA / UM-4 dry battery or rechargeable battery 3. Support external power bank (5V 1.5A and more) |
|
Detecting Frequency |
1. Wireless video camera: 900 ~ 1300 MHz, 2340 ~ 2550 MHz, 5645 ~ 5945 MHz 2. WiFi IP camera: 2410 ~ 2480 MHz, 5180 ~ 5320 MHz,
5745 ~ 5825 MHz
|
|
Video protocol |
Auto-switching for NTSC, PAL and SECAM |
|
Operation mode |
Auto – Lock – Manual fine tune |
|
Scan indication |
1. Wireless video camera: Image and frequency of scanned video signal 2. WiFi IP camera: LED |
|
Warning mode |
1. Beep 2. Vibration 3. Earphone for silent detection |
|
Scanning band |
1. 1.2 GHz - 2.4 GHz - 5.8 GHz three video camera bands 2. 2.4G WiFi CH1 – CH13 3. 5G WiFi CH 36 – CH 64, CH 149 – CH 165 |
|
Detecting Distance depending on output power of source transmitter |
1. Wireless video camera: up to 200 feet 2. WiFi IP camera: up to 12 feet |
