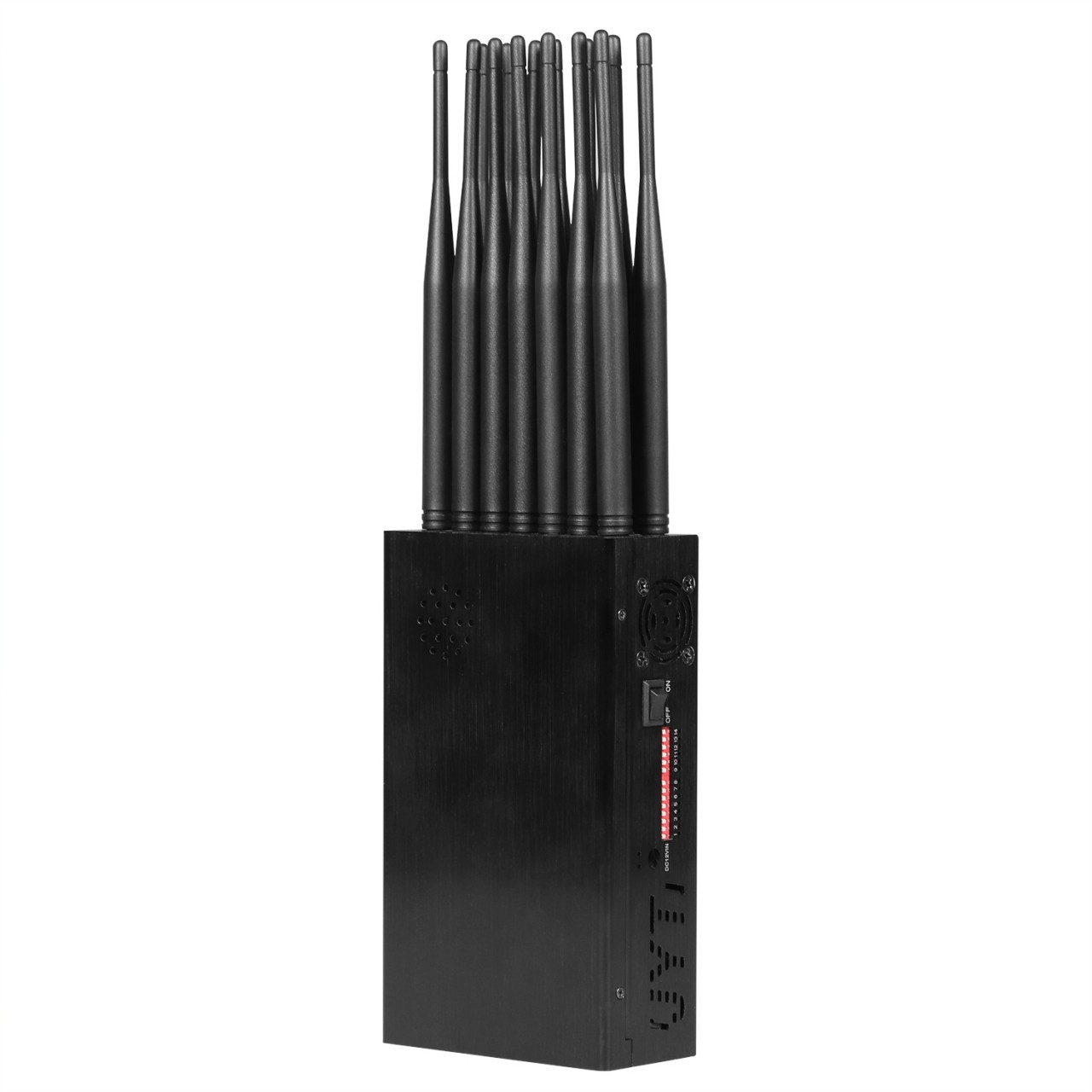

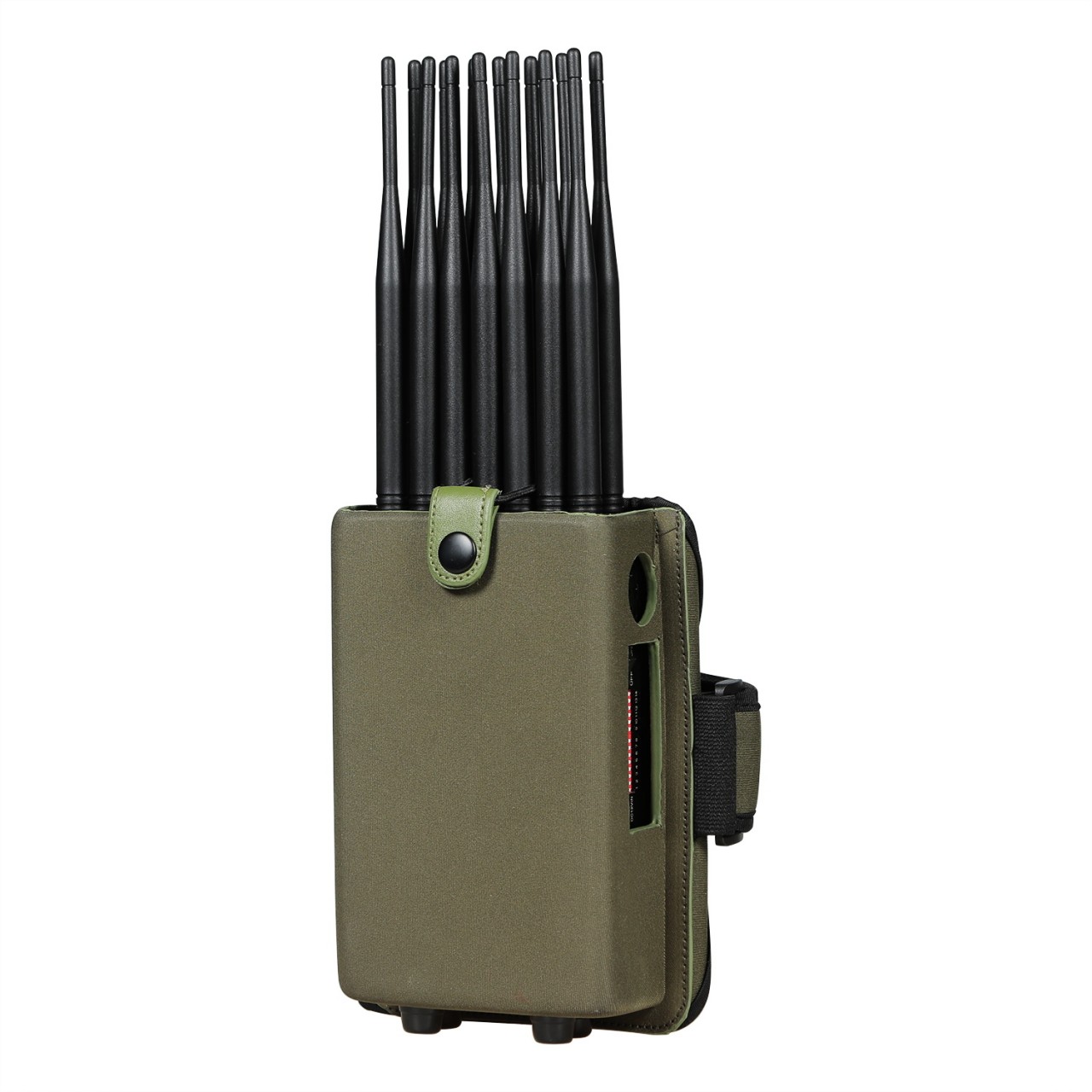

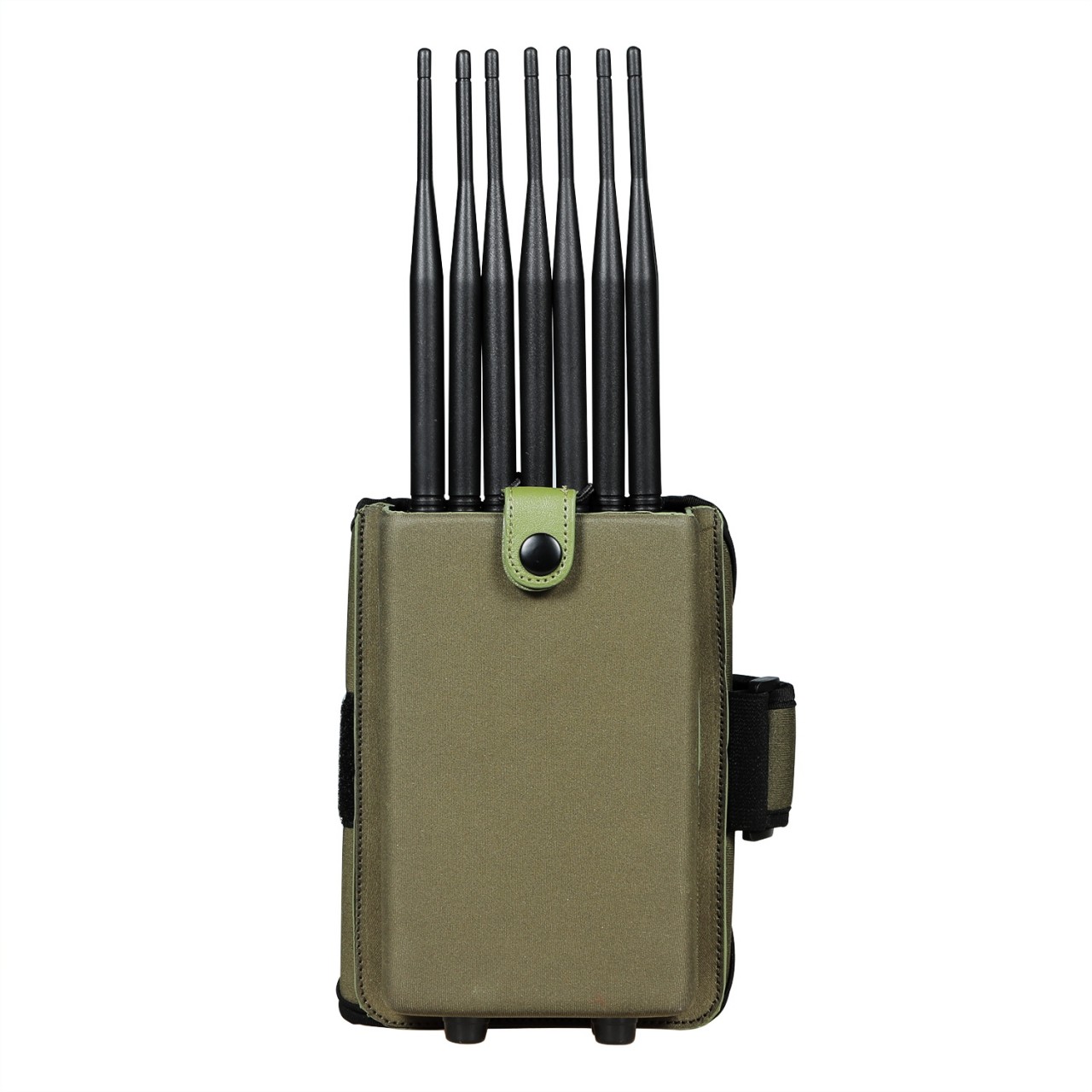

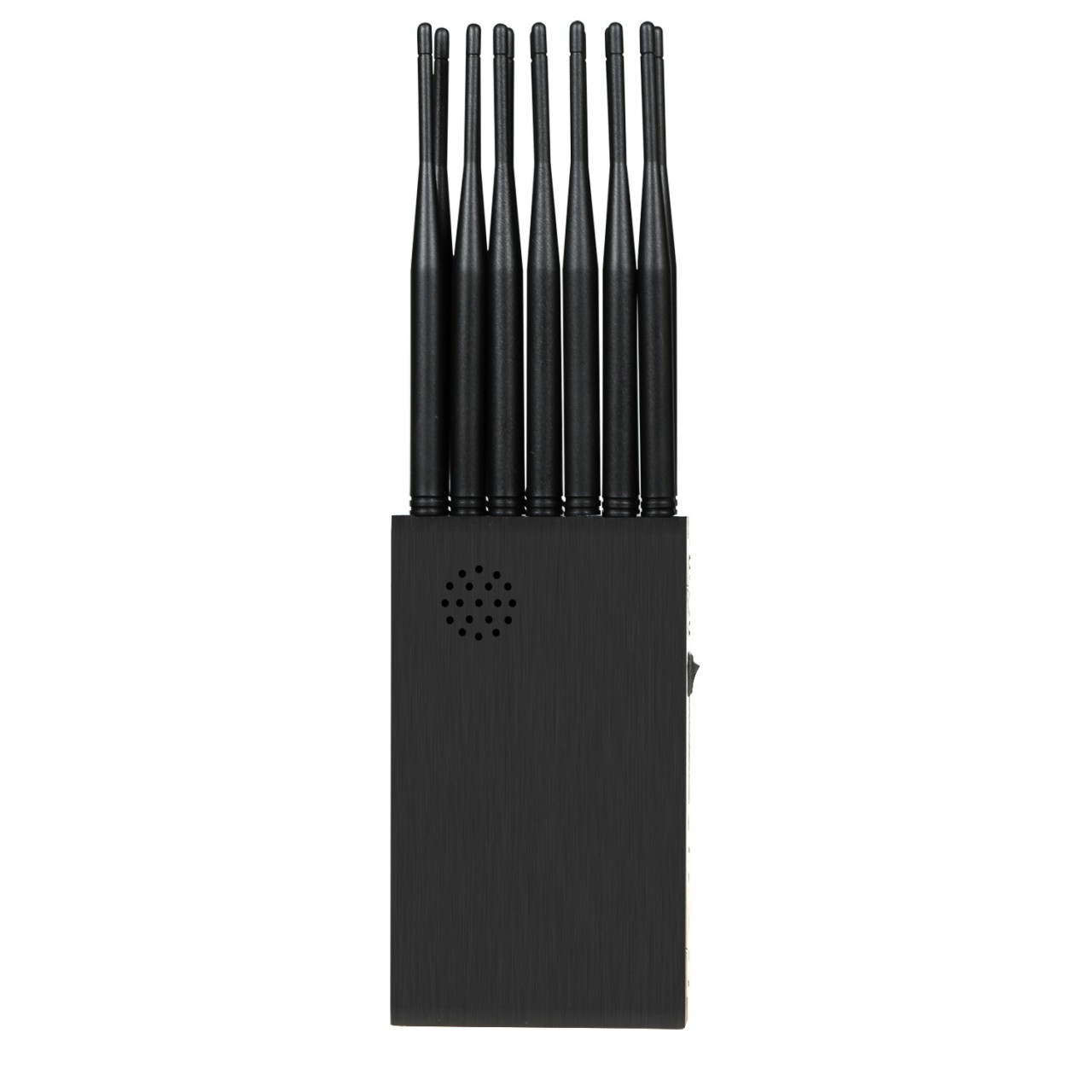

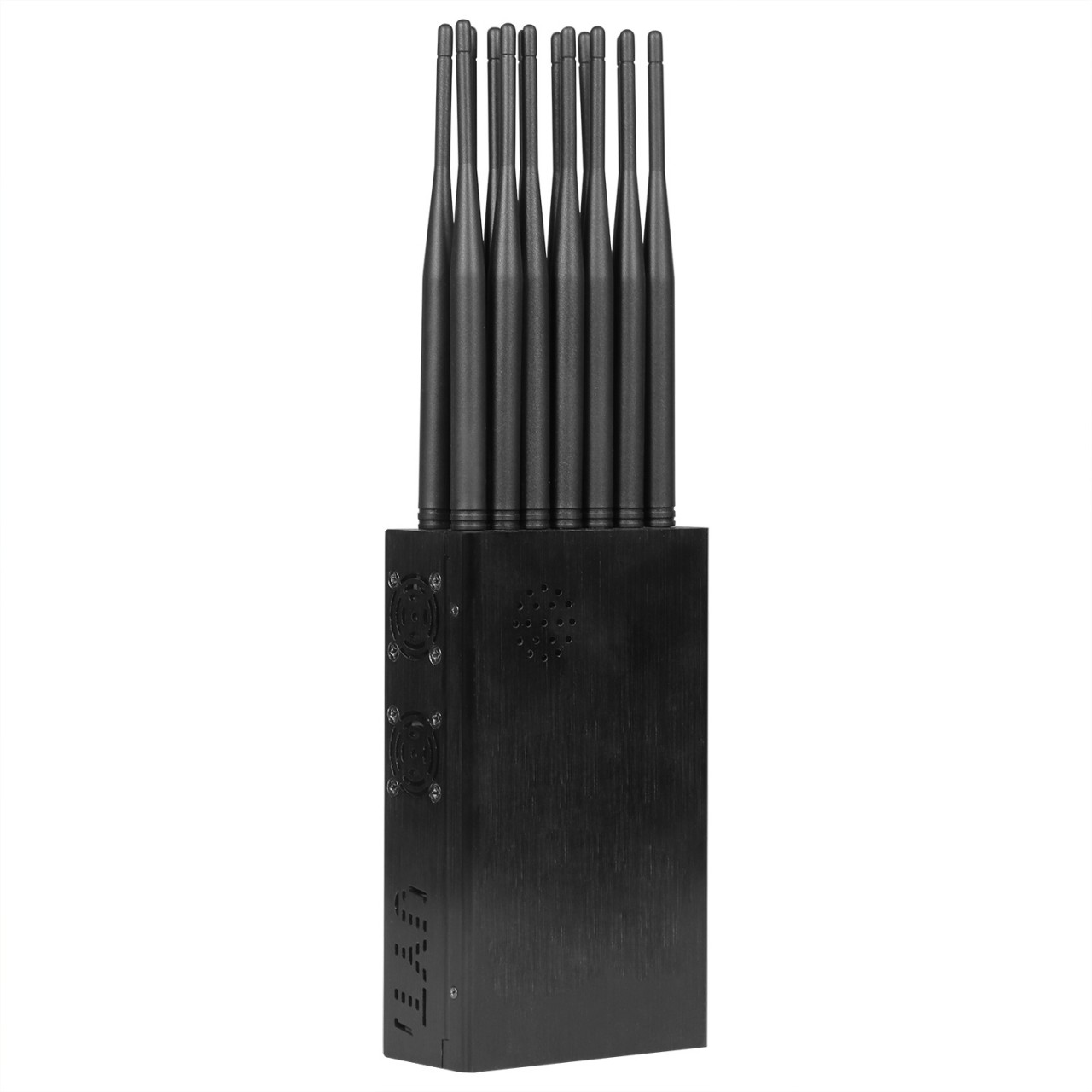

Portable 14 Antenna Integrated Full-band Mobile Phone Signal Jammer Shield 315/433/868 GPS WIFI/5GWIFI LoJack Blocker
Product Description
This world's first integrated mobile phone signal jammer can simultaneously shield GPS, WIFI2.4G, 5GWIFI, 315 433 868 and other radio frequency signals, which can meet your target for most of the affected frequencies. Hand-held design is easy to carry. It has a good cooling system with 3 cooling fans inside.
- The 14-band integrated frequency shields all mobile phone signals, GPS, WIFI2.4G, 5GWIFI, and radio frequency signals.
- The interference range is 5 to 25 meters (@-75dbm, depending on the signal strength in a given area.)
- Hand-held design, easy to carry. It can be put in a pocket or hung on a belt.
- Through the DIP switch, you can turn on/off any signal frequency band without affecting other frequency bands.
- With car charger, it can be used directly in the car, and it can also provide DC12V.AC power.
- Good cooling system, equipped with 3 cooling fans, the surface temperature is lower than 42℃, and it can even work continuously for 2 hours (used at room temperature)
- Built-in battery, can work for 2 hours: use the world's safest large-capacity battery, rechargeable.
Applications：
1.It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more.
Specifications：
Affected Frequency Ranges
| Channel | Output Port | Frequency Ranges |
| 1 | CDMA&GSM | 850-960MHz |
| 2 | DCS&PCS | 1805-1990MHz |
| 3 | 3G | 2110-2170MHz |
| 4 | GPS | 1570-1580MHz |
| 5 | WiFi | 2400-2500MHz |
| 6 | 4G LTE | 725-770MHz (American standard)Or 790-826MHz (European standard) |
| 7 | 4G Wimax | 2345-2400MHz (American standard) Or 2496-2690MHz (European standard) |
| 8 | GPS L2-L5 | 1170-1230MHz |
| 9 | RC 315 | 315 MHz |
| 10 | RC 433 | 433 MHz |
| 11 | RC 868 | 868 MHz |
| 12 | LOJACK | 167-175 MHz |
| 13 | WIFI 5.2G | 5100-5680MHz |
| 14 | WIFI 5.8G | 5680-5900MHz |
Shielding Range: from 5 to 20 meters (-75dBm, depending on the distance of base station in an open filed)
Total output power: 12W
Power supply: 50-60Hz, 100-240V AC,DC12V.4A
Dimension: 175*102*50 mm (not include antennas)
Full set weight: 2.5 KGS
Package Contents：
-
Jammingdevie x 1
-
Antennas x 14
-
AC Charger x 1
-
Car Charger x 1
-
Carry Case x 1
