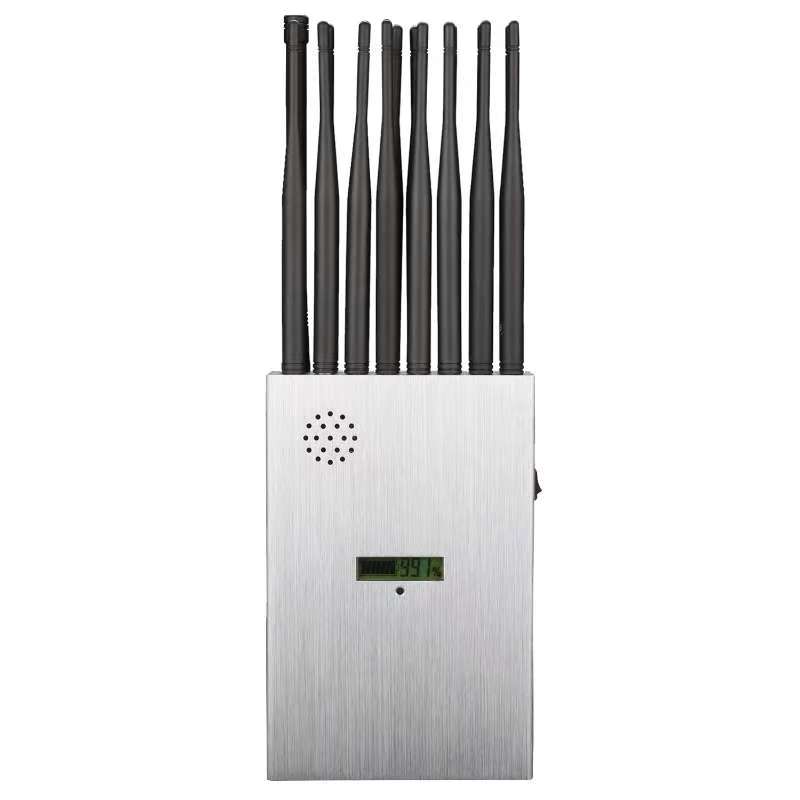

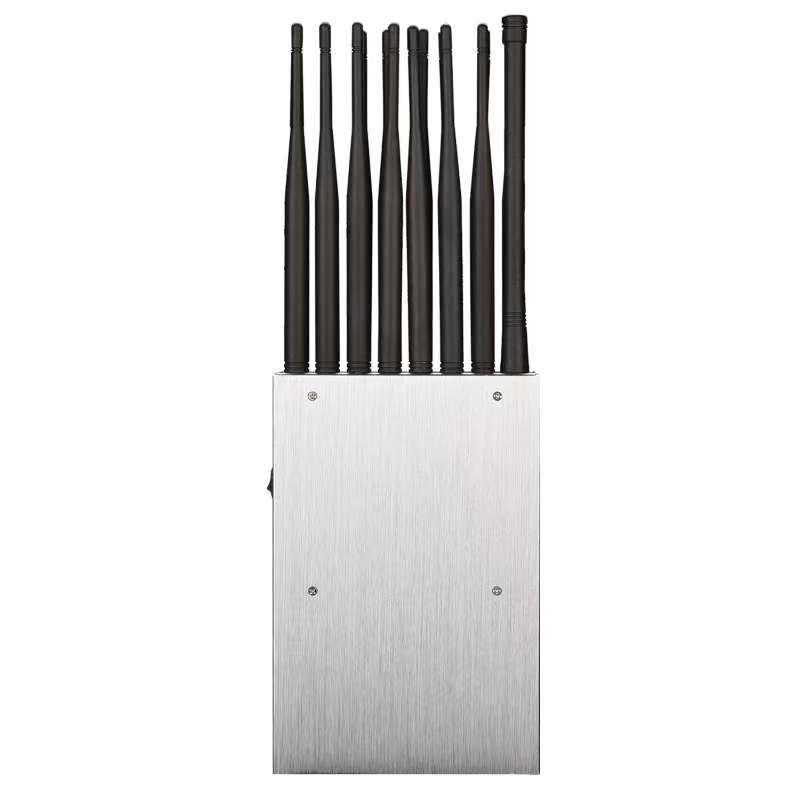

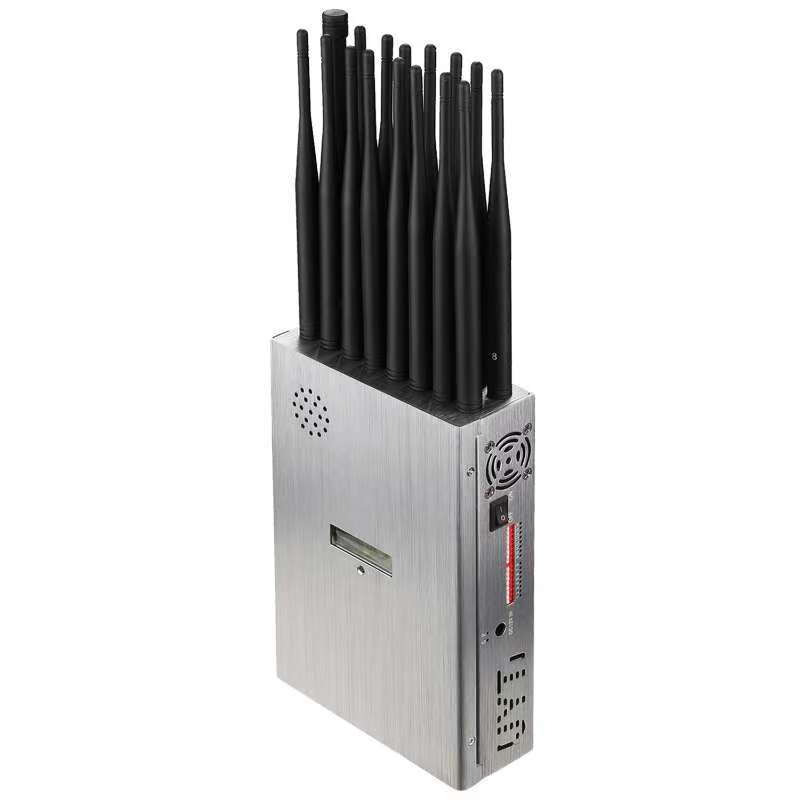

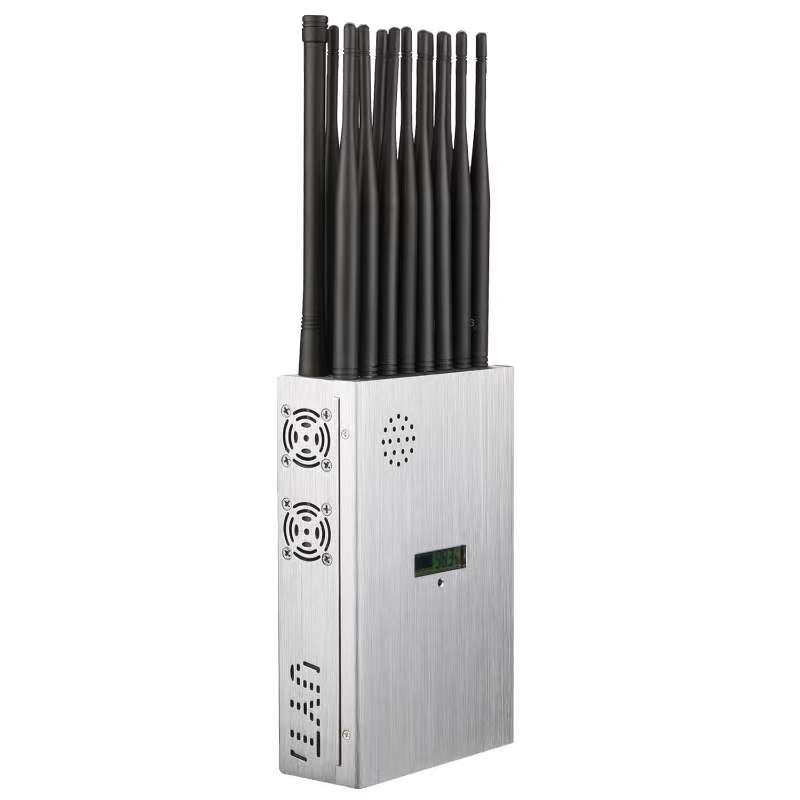

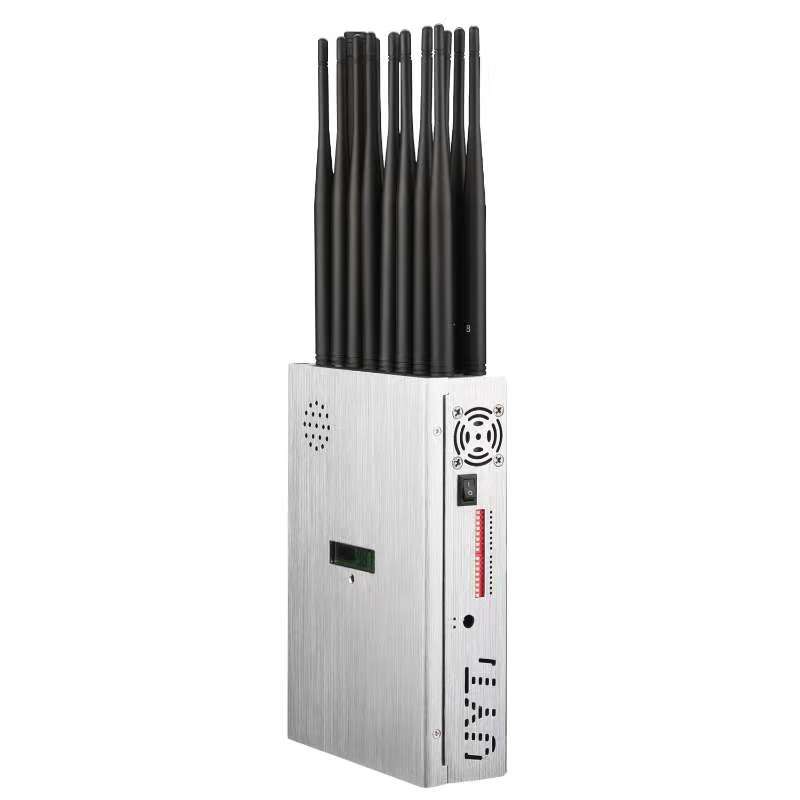

Portable 16 band 5G mobile phone WiFi GPS UHF VHF Jammer RC all-in-one signal blocker with LCD screen
Product Description
Portable LCD screen Portable 16 band 5G mobile phone WiFi GPS UHF VHF Jammer RC all-in-one signal blocker with LCD screen can shield LOJACK GPS, Wi-Fi 5G, walkie-talkie UHF/VHF and RF signals (such as 315, 433, 868). Its new design has a battery LCD display, you can easily know the remaining battery capacity, it is more convenient to use.
Advantage
-
16 bands all-in-one frequencies blocking all cell phone signals including the newest 5G, LOJACK GPS, Wi-Fi, RF signals, etc;
-
16watt high output power, Jamming range 2 to 25meters (at-75dBm, depends on signal strength in given area);
-
Battery capacity LCD display (Capacity percentage);
-
With DIP switch, can turn on/off any signal band without affect other bands;
-
With car charger, 12V DC/AC power supply is also available;
-
With host protective cover, convenient and safe to carry
Specification
|
Frequency bands |
Output port |
Frequency range |
Average out-putting power |
| 1 |
Lojack |
167-175 MHz |
27dBm |
| 2 |
GPS L2-L5 |
1170-1230MHz |
27dBm |
| 3 |
DCS/PCS |
1805-1990MHz |
27dBm |
| 4 |
RF 433 |
433 MHz |
27dBm |
| 5 |
GPS L1 |
1570-1580MHZ |
27dBm |
| 6 |
WIFI 2.4G |
2400-2500MHz |
27dBm |
| 7 |
3G |
2110-2170MHz |
27dBm |
| 8 |
GSM&CDMA |
850~960 MHz |
27dBm |
| 9 |
4G LTE |
725-770MHz (USA standard) Or 790-826MHz (EU standard) |
27dBm |
| 10 |
RF 868 |
868MHz/27dbm |
27dBm |
| 11 |
RF 315 |
315MHz/27dbm |
27dBm |
| 12 |
4G WIMAX |
2345-2400MHz (USA standard) Or 2620-2690MHz (EU standard) |
27dBm |
| 13 |
WIFI 5.2G |
5100-5680 MHz |
27dBm |
| 14 |
WIFI 5.8G |
5680-5900MHz |
27dBm |
| 15 |
5G LTE1 |
3400-3500 MHz |
27dBm |
| 16 |
5G LTE2 |
3600-3800 MHz |
27dBm |
|
Power supply: AC Charge (AC110-220V-DC12V) & Car Charge (DC12V) Shielding Radius: 5 - 25 meters@-75dBm still depends on the strength signal in the given area. |
|||
|
Dimension: (width, height, length) 195 x 128 x 58 mm and not include antennas Total weight: 2.25kg |
|||

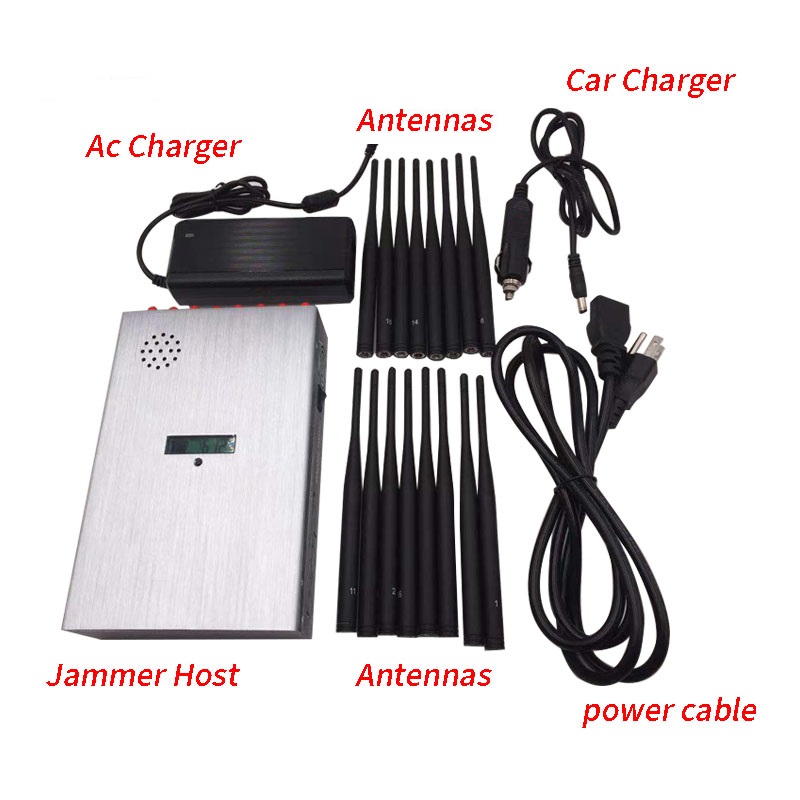

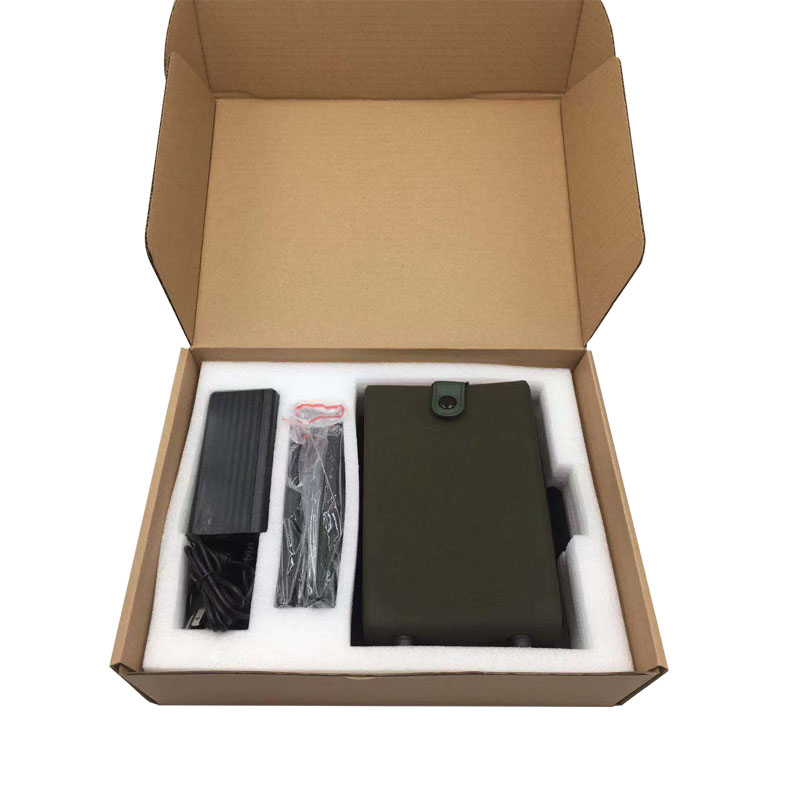

Package Content
-
Main unit (thejammer device) x 1pcs
-
Power AC adapter x 1pcs
-
Car charger x 1pcs
-
Omni antennas x 16 pcs
