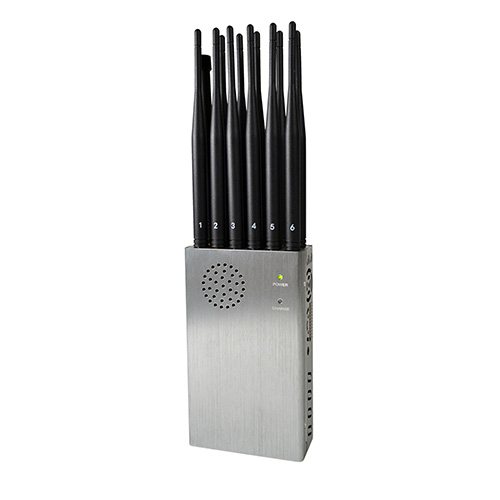

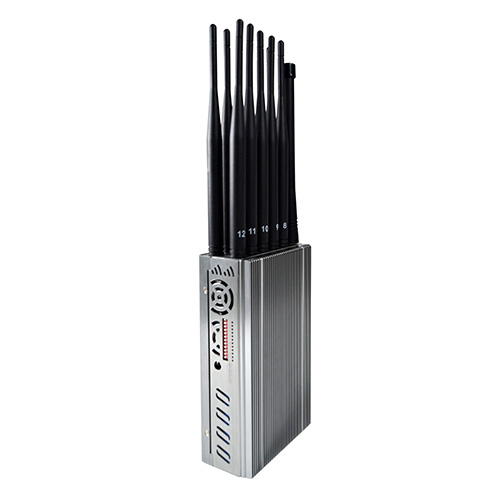

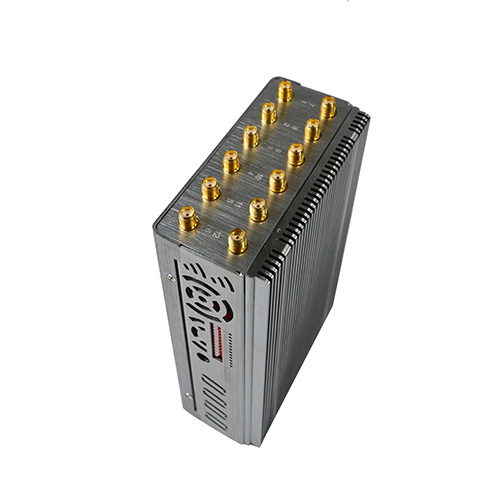

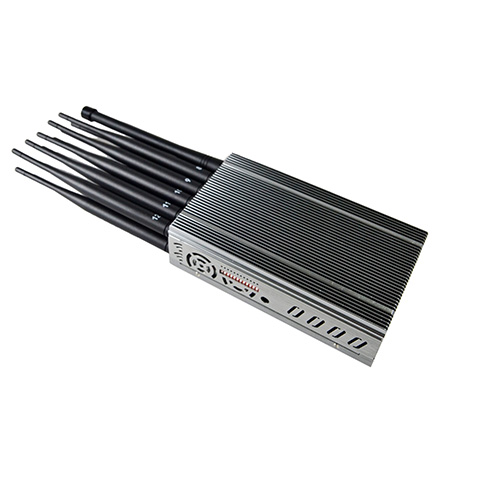

Portable Mobile Phone 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1 +LOJACK+433 315 868 RC Blocker

Portable Mobile Phone 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1 +LOJACK+433 315 868 RC Blocker 1
Portable Mobile Phone 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1 +LOJACK+433 315 868 RC Blocker 1
Portable Mobile Phone 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1 +LOJACK+433 315 868 RC Blocker 2
Portable Mobile Phone 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1 +LOJACK+433 315 868 RC Blocker 3
Portable Mobile Phone 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1 +LOJACK+433 315 868 RC Blocker 4
Portable Mobile Phone 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1 +LOJACK+433 315 868 RC Blocker 5
Product Name : Portable Mobile Phone 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1 +LOJACK+433 315 868 RC Blocker
Product ID : HAG-RC165
Total power : 8.4W
Shielding radius : (2-20) meters at -75dBm Still depends on the strength signal in given area
Jamming Types : CDMA, GSM, DCS, PCS, 3G, 4G, WiFi 2.4G & Bluetooth, WiFi 5.8G, GPS L1, RC 315 433 868, VHF, UHF, Lojack
Built-in battery : 7.4V/10000mAh
Continue working : more than 2.0+ hours
Directions

Product Description

The latest all-in-one design portable wireless signal Jammer,12 bands jamming all types of Android phones, Tablets, Smart Phones, iPhones, Win phones etc. that use 2G, 3G, 4G, and CDMA 450Mhz,Block LOJACK GPS, Wi-Fi 5G,Walkie-Talkie UHF/VHF and RF signals like 315, 433, 868 is popular in years to come

Advantages:

  • The latest handheld design 12 all-in-one frequencies blocking all cell phone signals, LOJACK GPS, Wi-Fi, RF signals
  • 8.4 watt high output power and high gain antennas, Jamming range 2 to 20 meters (at-75dBm, depends on signal strength in given area)
  • Good cooling system with cooling fans inside and bigger hot sink
  • With DIP switch, can turn on/off any signal band without affect other bands
  • With car charger, can used in car directly, 12V DC/AC power supply is also available
  • With built-in bigger battery, can work more than (2.0+ hours) 120 minutes, can be repeated charging

Application

  •  It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
  • For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument

Manufacturer Specifications

Channel

Output port

Frequency range

Average out-putting power

1

4GLTE 700

700-803 or 790-862MHz

28.5dBm/0.7W

2

CDMA or RC868

851-894 or 868MHz

28.5dBm/0.7W

3

GPSL1

1570-1610MHz

28.5dBm/0.7W

4

Wi-Fi 2.4G

2400-2500MHz

28.5dBm/0.7W

5

3G

2110-2170MHz

28.5dBm/0.7W

6

4G2600 or 2300

2500-2690 or 2300-2400MHz

28.5dBm/0.7W

7

LOJACK or VHF

167-175 or 135-175MHz

28.5dBm/0.7W

8

RC315

315MHz

28.5dBm/0.7W

9

RC433 or UHF

433 or 400-470MHz

28.5dBm/0.7W

10

GSM

925-960MHz

28.5dBm/0.7W

11

DCS or PCS

1805-1880 or 1920-1990MHz

28.5dBm/0.7W

12

Wi-Fi 5.8G

5725-5850MHz

28.5dBm/0.7W

Jamming Types: CDMA, GSM, DCS, PCS, 3G, 4G, WiFi 2.4G & Bluetooth, WiFi 5.8G, GPS L1, RC 315 433 868, VHF, UHF, Lojack

Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC)  Car Charger: DC12V IN

Dimensions: (length ,width, height) 165*96*46mm (not include antenna)

Length of antenna :166mm   Gain:2.0dbi

Packing size: 25*24*8cm             Net weight: 1.5kg               Gross weight: 2.0kg

Total power: 8.4W
Shielding radius: (2-20) meters at -75dBm Still depends on the strength signal in given area
Built-in battery:7.4V/10000mAh Continue working: more than 2.0+ hours

Warranty: one year from delivery date

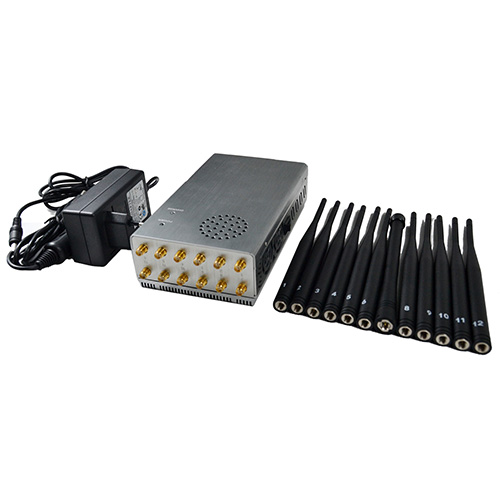

Package Contents

1 x Jammer Host

1 x AC Charger

1 x Car Charger

12 x Antenna

1 x Nylon Case
