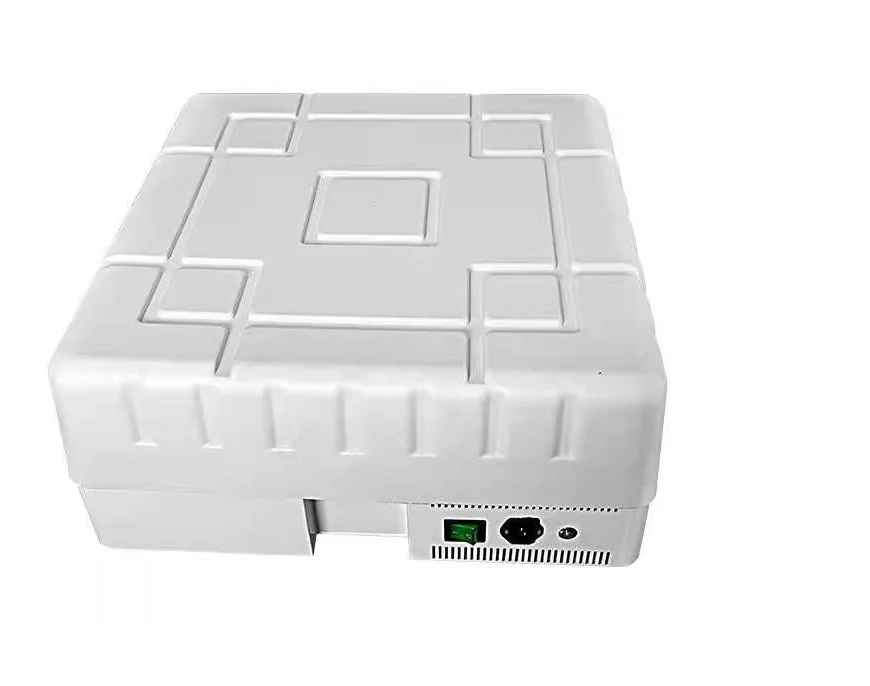

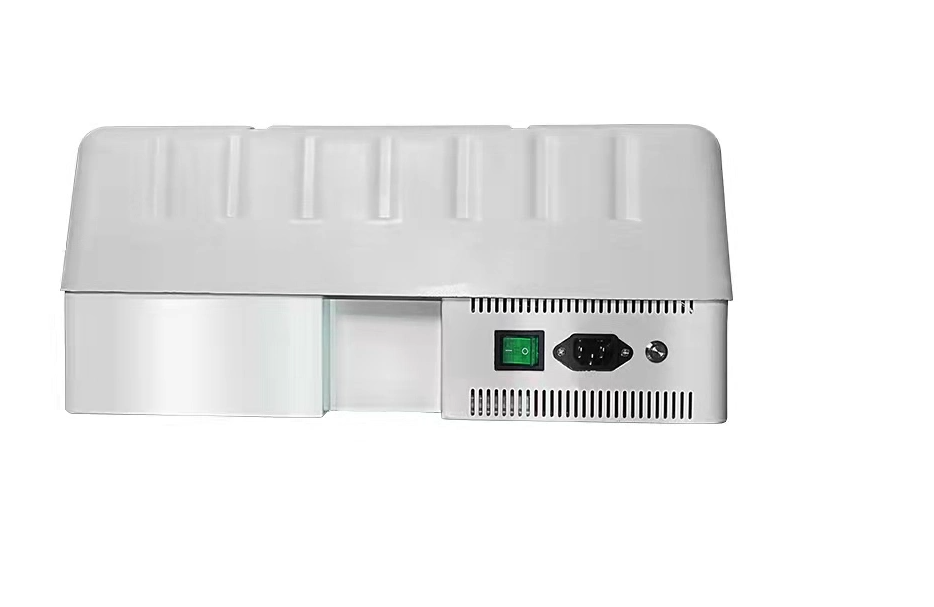

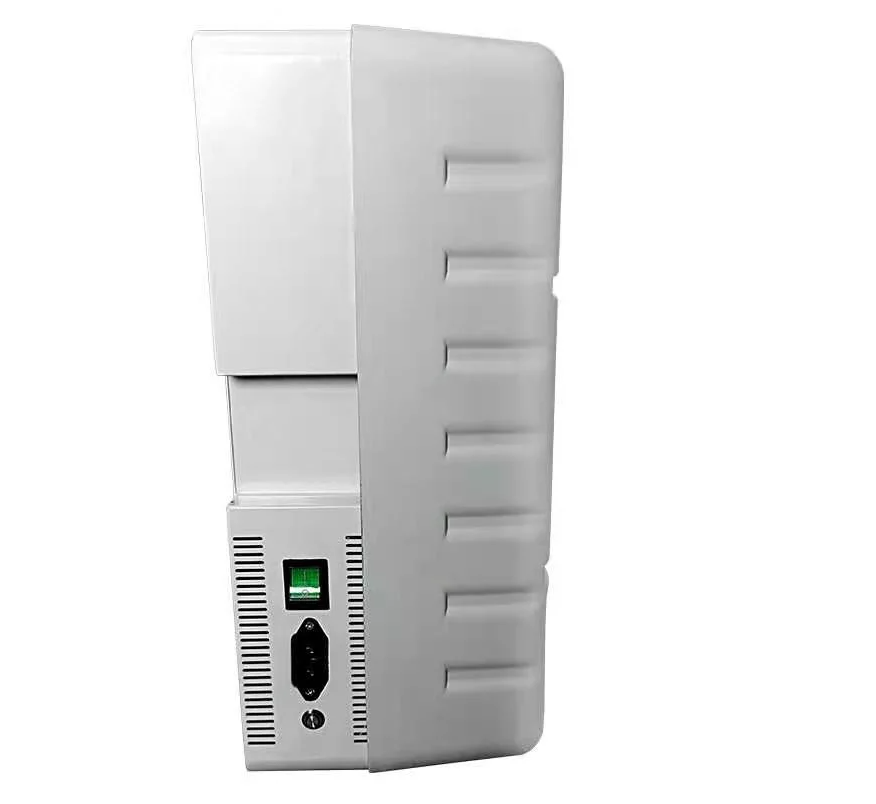

Wall Mount 14dBi 11 Channel WiFi Cell Phone Signal Jammer for Military Base 50m
Product Description
Product Description
we are adopts the latest radio frequency interference technology
and works out this high-tech Phone Wifi signal jammer. It is made of the built in antenna
RF Amplifier Unit, Multiplexer,Main Control Board, Smart cooling system, Power Supply system.
* It can definitely shield all 2G 3G 4G 5G Phone signal and WIFI 2.4G 5.8G signal in 50 meter range.
Then the phone and wifi signal won't work anymore in that certain area.
* The signals to shield can be customized by the different country standard and the customer specific needs.
* Its main feature is the ultra high gain 14dBi Massive Mimo antenna.
The traditional signal jammer usually share a high gain antenna for all channels or use small gain 5dBi or
9dBi antenna for each channel.
NZ-150W can transmitt a high gain 14dBi signal in each channel and have a stable long distance jamming effect.
Product Feature
* High output power 150W, Single module design for all 11 channels, effectively shield Phone Wifi signal
in 50 meter range (-75dB, open environment, depends on BTS distance)
* Can shield all 2G 3G 4G 5G phone signal and WiFi 2.4G 5.8G
* WIFI on/off single control to choose only shield phone signal
* Latest massive mimo antenna, Each channel can transmitt ultra high 14dBi signal to stable and effective
jamming the target area
* Precise voltage design for easy working even under large voltage fluctuation
* Imported IC chip with strong power and stable output power performance
* Durable PVC outshell and Metal alloy backplate, Steady structure, Anti-Broken, Heat-Resistant, Waterproof
Dustproof

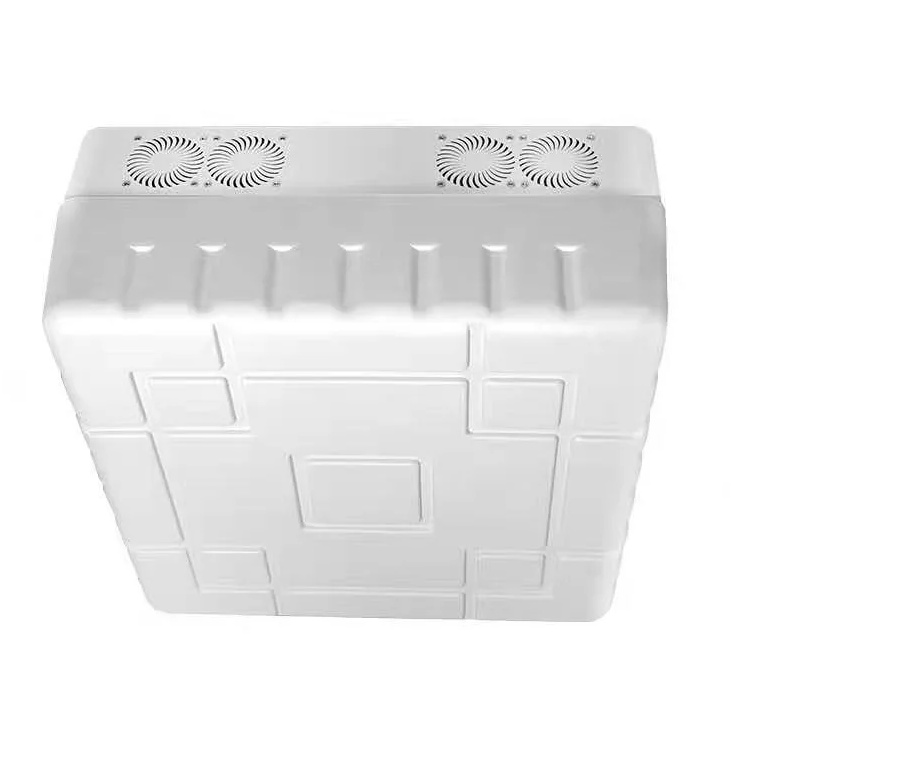

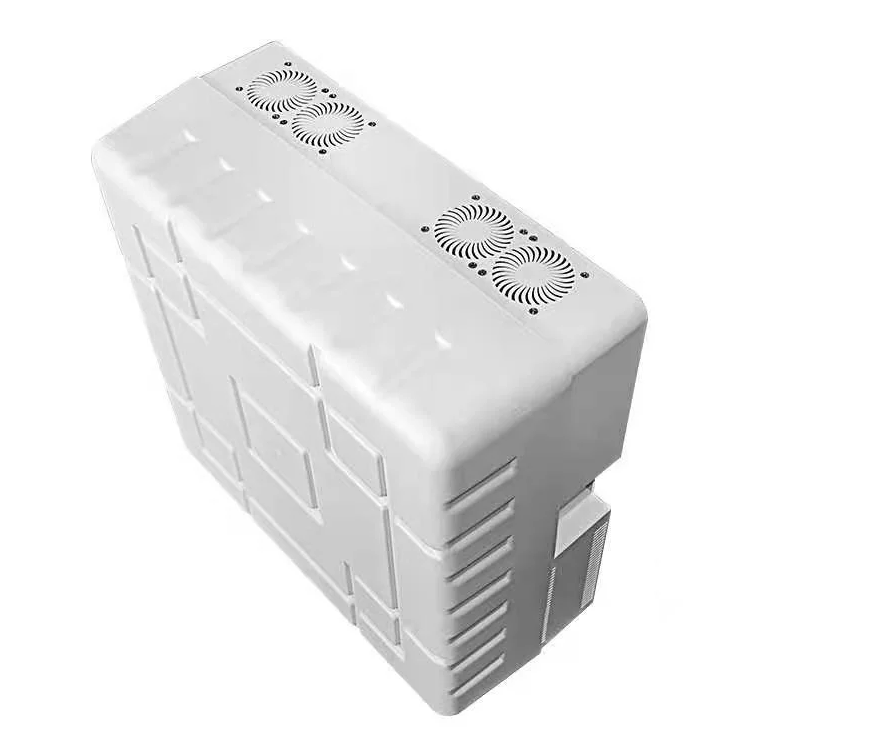

* Smart cooling system with built-in ultra thick heatsink, heat dissipation fin and large fans; ventilation holes
at four sides; ensure the fast cooling effect and long life span
* Wall mount design; Easy installation; Suitable installation height for better jamming coverage
* User friendly and no harm to body health
Product Specification
* Signal Jammer
(Frequency can be customized by country standard and specific need )
| Integrated Band | Working Frequency (MHz) | Average Output Power |
| 1 | 870-880 | 15W |
| 2 | 925-960 | 15W |
| 3 | 1880-1920 | 15W |
| 4 | 2010-2170 | 15W |
| 5 | 2110-2125 | 15W |
| 6 | 2300-2400 | 15W |
| 7 | 2400-2500 | 15W |
| 8 | 2515-2675 | 15W |
| 9 | 3400-3600 | 15W |
| 10 | 4800-4900 | 10W |
| 11 | 5725-5850 | 5W |
| Body Size | 450*450*200mm | |
| Body Weight | 17.0kg | |
| Working Temperature | -40ºC~75ºC | |
| Working Humidity | 35~85% | |
| Power Consumption | ≤240W | |
| Power Input | AC160V~240V | |
| Power Output | DC 24V/10A | |
| Installation Height | 1.8~2.5m | |
| Installation Environment | Indoor, Etc | |
* Built-In Antenna
| Electrical | |
| Frequency Range | 800-960/1800-1900/2000-2100/2300-2400/2500-2700/3400-3600/5700-5900MHz |
| Gain | 10.5/13/14 ± 1dBi |
| VWSR | ≤1.5 |
| Polarization | 45° |
| Horizontal Beamwidth | 955° |
| Vertical Beamwidth | 35±10°/35±10°/15±10° |
| Third order intermodulation | / |
| Front to back ratio | ≥23 |
| Isolation | ≥25 |
| Input Impedance | 50 |
| Max Output Power | 100W |
| Connector Type | 11*SMA-J |
| Thunder Protection | DC Ground |
| Mechanical | |
| Limit Wind Speed | 30m/s |
| Working Humidity | 10-95% |
| Working Temperature | -30-70ºC |
Product Application
1)Avoid the illegal phone use at Prison, Detension house, Police station, Law court, Procuratorate,etc
2)Avoid the important document leaking or business secret leaking, such as in Real-estate transaction
Business conference room, Military Base and Important confidential site, Government sites, Admistration
Department, Criminal case on site checking, Law enforcement, Critical Security sites, etc.
3)Avoid Hazadous place accidents caused by misuse of Phone Wifi signals, such as Petrol station, Chemical
factory, Oil depot, Hazadous substance storage warehouse and assemblies, etc.
4)Avoid phone calls noise at Library, Movie theatre, Theatre, Concert hall, Memory hall, Auditorium, Church, etc.
5)Avoid examination cheating in school, training classes, sports competition,etc.
6)Avoid phone playing during working time; effectively avoid assembly injury and death accident for phone playing
improve working efficiency, such as Textile mill, Metallurgical plant, etc.
Packing List
* Signal Jammer * 1pcs
* AC Adapter * 1pcs
* Details User Manual * 1pcs
