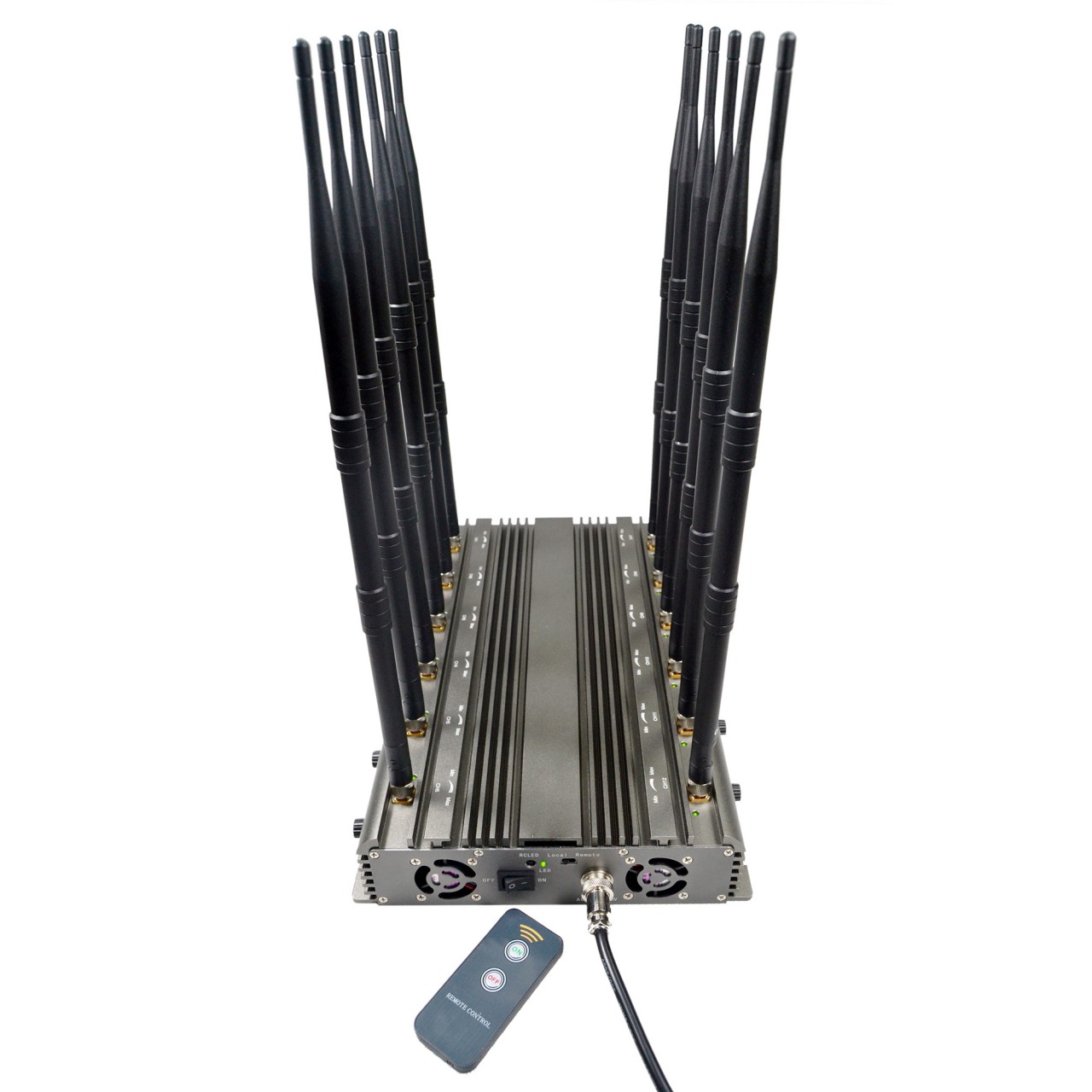

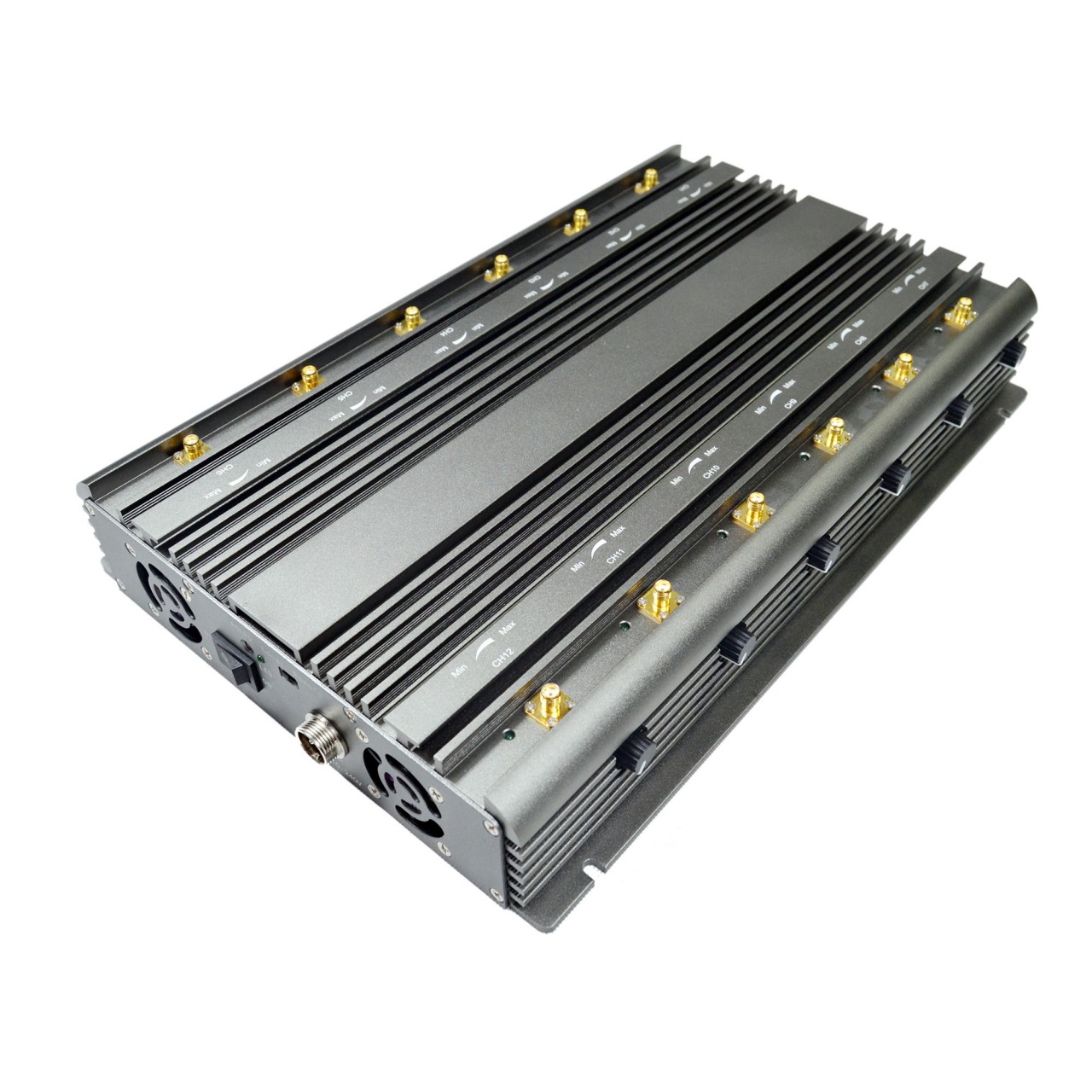

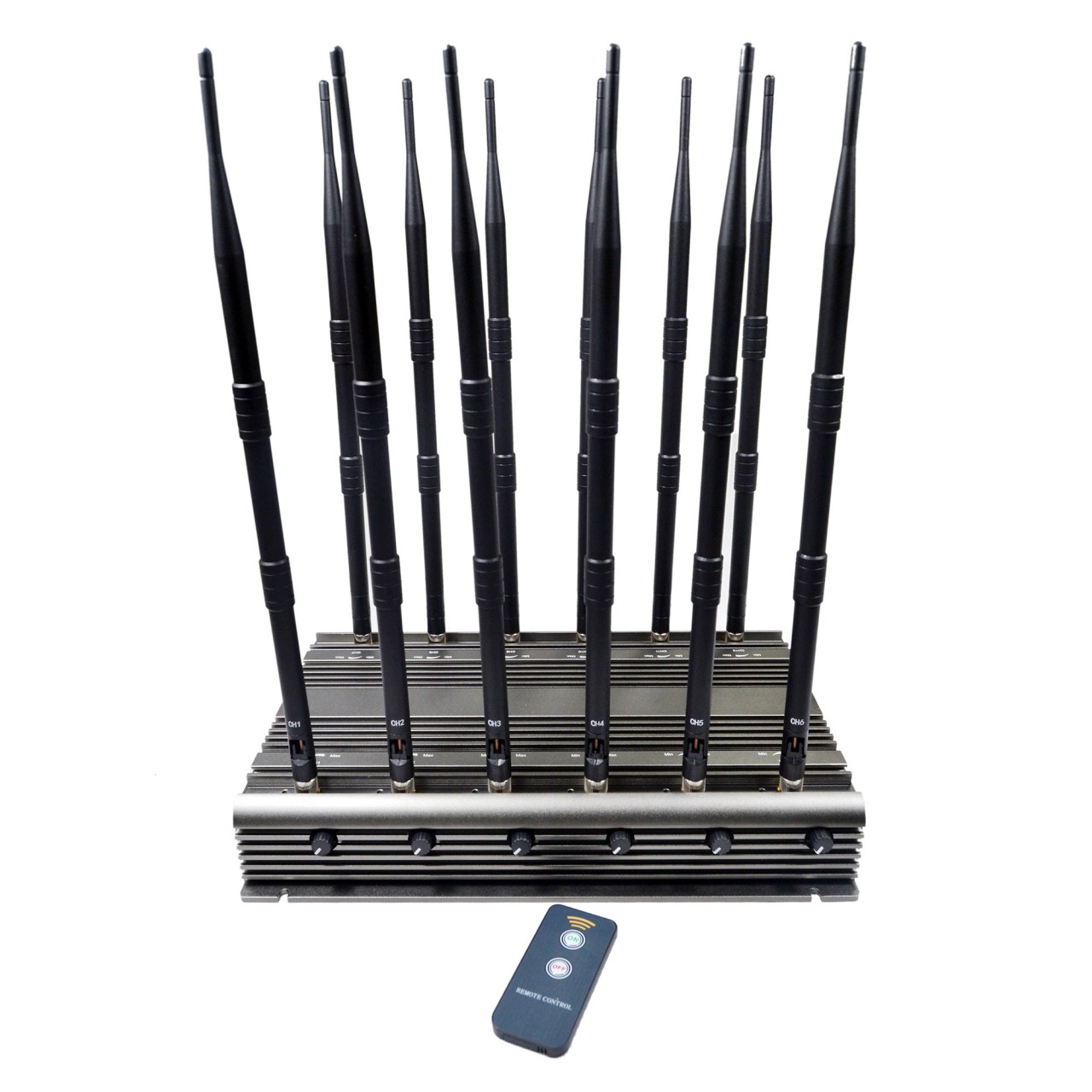

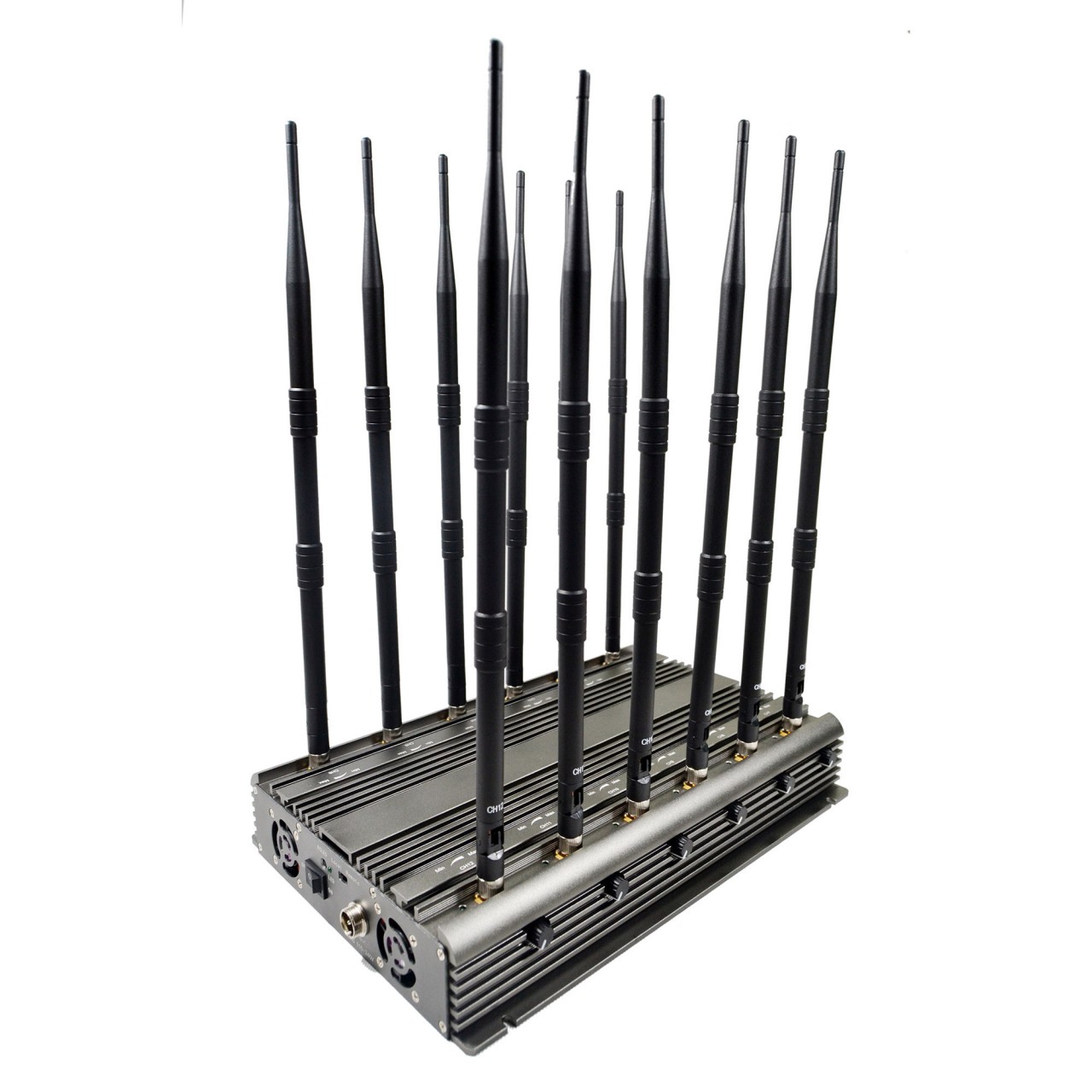

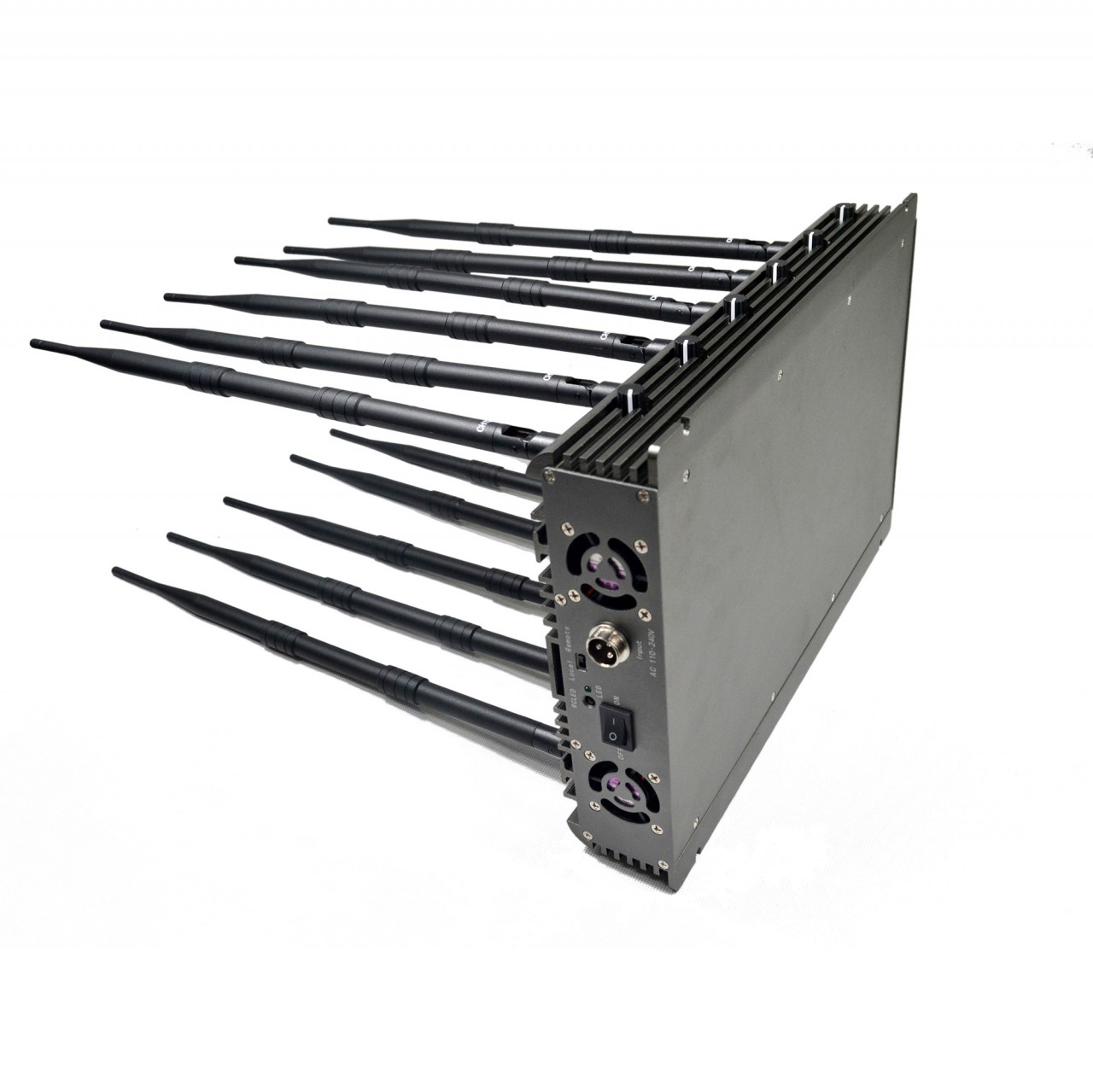

12 Antennas Adjustable Powerful Cellphone 2G/3G/4G + WIFI(2.4G,5.8G) + LOJACK + UHF VHF Signal Jammer Desktop with Remote Control

12 Antennas Adjustable Powerful Cellphone 2G/3G/4G + WIFI(2.4G,5.8G) + LOJACK + UHF VHF Signal Jammer Desktop with Remote Control 1
12 Antennas Adjustable Powerful Cellphone 2G/3G/4G + WIFI(2.4G,5.8G) + LOJACK + UHF VHF Signal Jammer Desktop with Remote Control 1
12 Antennas Adjustable Powerful Cellphone 2G/3G/4G + WIFI(2.4G,5.8G) + LOJACK + UHF VHF Signal Jammer Desktop with Remote Control 2
12 Antennas Adjustable Powerful Cellphone 2G/3G/4G + WIFI(2.4G,5.8G) + LOJACK + UHF VHF Signal Jammer Desktop with Remote Control 3
12 Antennas Adjustable Powerful Cellphone 2G/3G/4G + WIFI(2.4G,5.8G) + LOJACK + UHF VHF Signal Jammer Desktop with Remote Control 4
12 Antennas Adjustable Powerful Cellphone 2G/3G/4G + WIFI(2.4G,5.8G) + LOJACK + UHF VHF Signal Jammer Desktop with Remote Control 5
Product Name : 12 Antennas Adjustable Powerful Cellphone 2G/3G/4G + WIFI(2.4G,5.8G) + LOJACK + UHF VHF Signal Jammer Desktop with Remote Control
Product ID : HAG-UVC12
Total Power : 70W
Shielding Range : Up to 60m (Still depends on the strength signal in given area)
Frequency Bands : cover 5.8G WiFi, Meanwhile,it can block 2G,3G,4G LTE Wimax cell phone signals,wifi signal,low frequencies like UHF,VHF signals as well as Lojack signal
Supply Supply : AC110-240V to 24V adapter
Working time : Built-in good cooling system inside 5 fans, Working non-stopped
Directions

Product Description



This model cover 5.8G WiFi, Meanwhile,it can block 2G,3G,4G LTE Wimax cell phone signals,wifi signal,low frequencies like UHF,VHF signals as well as Lojack signal.What's more, it is designed with higher output power, which total up to 70W. In addition, 5 built-in cooling fans make it non-stop working.



Advantages



  • 12 channel design, 4-8 watt each band

  • High output power, Total up to: 70W,  jamming up to 60m (Still depends on the strength signal in given area)

  • External high gain 3-5dbiOmni-directional antennas all the TX frequency covered down link only

  • Build-in AC110-240V to 24V adapter,Safe and easily use.

  • Built-in good cooling system inside 5 fans, Working non-stopped

  • 2-5meters with Infrared Remote Control Turn ON /OFF Power

  • Can adjust or turn off any single band without influencing the other bands operation

  • Independent module design with frequency source of each channel, easy maintenance (if have any damaged frequency band, replace with new PCB directly, no need for professional equipment such as frequency analyzer)



Application



  • It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security

  •  For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument



 Specifications



 Working Frequency Bands:

Channel

Output port

Frequency range

Average out-putting power

1

CDMA

851-894MHz

39dBm/8W

2

GSM

925-960MHz

39dBm/8W

3

DCS or PCS

1805-1880 or 1920-1990MHz

37.8dBm/6W

4

3G

2110-2170MHz

37.8dBm/6W

5

4G1 LTE

700-803 or 790-862MHz

39dBm/8W

6

4G LTE1700

1700-1800MHz

37.8dBm/6W

7

4G Wimax

2500-2690 or 2300-2400MHz

37dBm/5W

8

WIFI2.4G

2400-2500MHz

37dBm/5W

9

WIFI5.8G

5725-5850MHz

36dBm/4W

10

LOJACK

167-175MHz

37dBm/5W

11

VHF

135-174MHz

37dBm/5W

12

UHF

400-470MHz

37dBm/5W

Power supply: Build-in AC adapter 50 to 60Hz, (AC110-240V IN,DC24V working)

Cooling System:High efficiency aluminum alloy radiator, Build-in5 cooling fan

Working Time:Not-stop Working

Dimensions: (length ,width, height) 355x 238x 60mm(not Include Antenna)

Packing size: 47x42x11.5cm            Net weight: 5kg       Gross weight: 5.5kg

Total power: 65-71W, 4-8W each band
Shielding radius: (20-60) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 20meters

Warranty: one year from delivery date

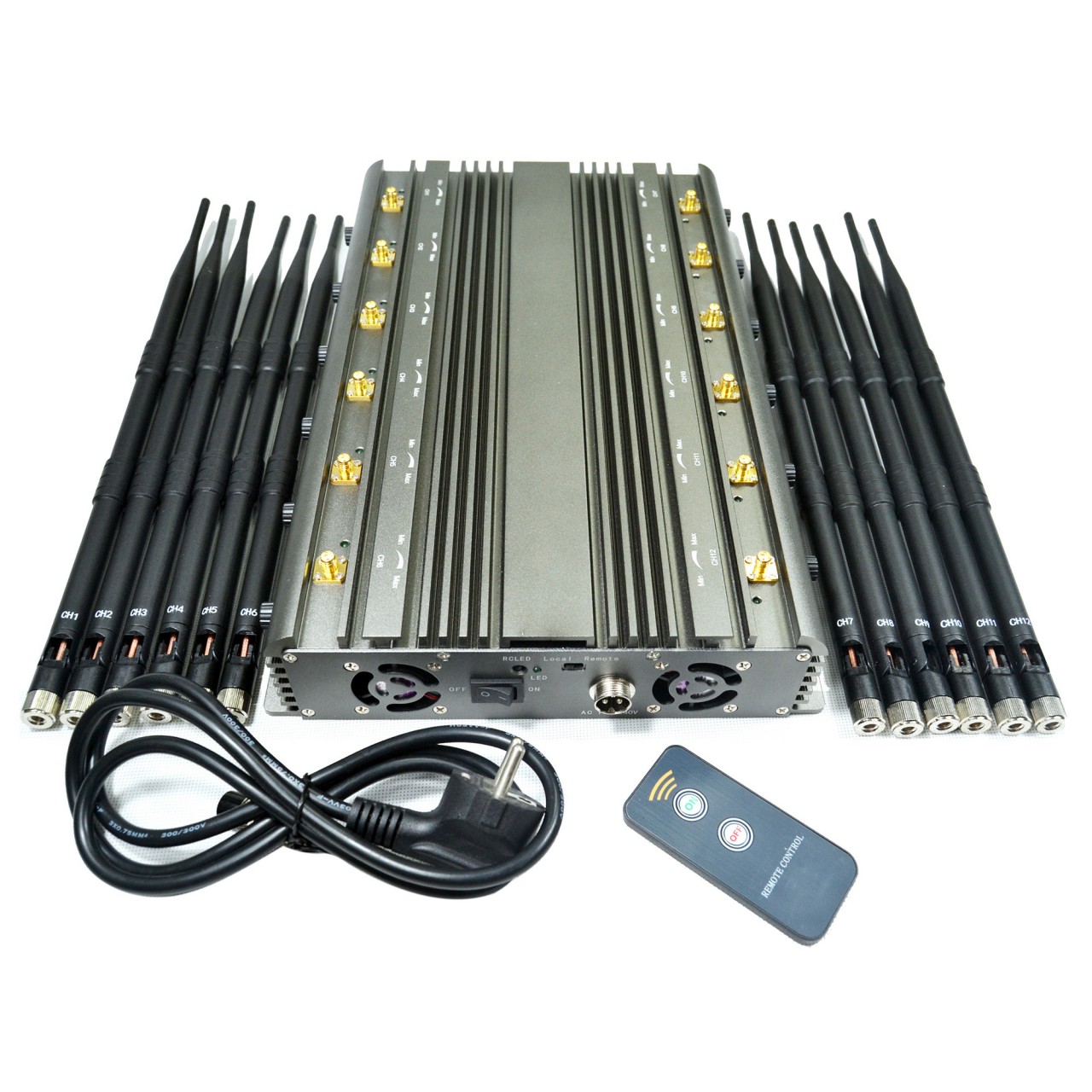

Package Contents



  • 1 x Jammer Host

  • 12 x Antenna

  • 1 x AC Adaptor

  • 1 x Remote Control
