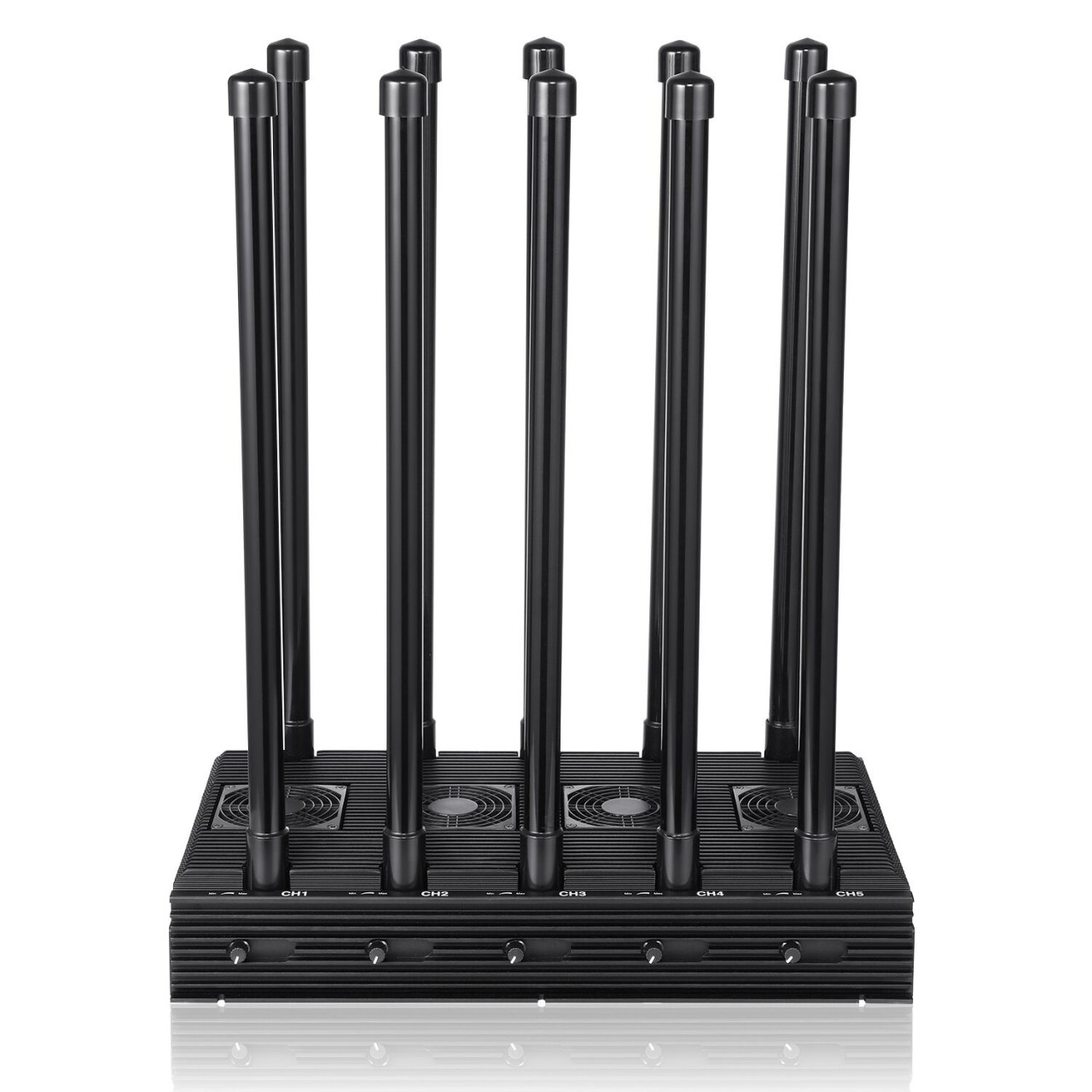

This 10 Antennas 220W Medium Power 2G/3G/4G Cell Phones WiFi(2.4G, 5G) UHF VHF Jammer Blocker with Intelligent Cooling System is the latest medium power design. As the world first high power desktop cellphone signal jammer each channel output power up to 25W-30W, which can block GSM, CDMA, DCS/PCS, 3G, 4G, 2.4G WiFi,5G WiFi, VHF, UHF at the time.Good cooling system with 11 cooling fans inside. There have 4 Temperature control fans on the host,the fans not working immediately while the jammer started. The temperature control fans auto start running after the host surface temperature raise to 50℃ to ensure the jammer working steadily.

Advantages

1. Large coverage, covering all 2G, 3G, 4G cell phone signals, 2.4G WiFi,5G WiFi, VHF and UHF sigal.

2. High power cell phone signal jammer, up to 25W-30W output power.

3. Good cooling system with 11 cooling fans inside.

4. There have 4 Temperature control fans on the host,the fans not working immediately while the jammer started. The temperature control fans auto start running after the host surface temperature raise to 50℃ to ensure the jammer working steadily.

5. Low noise.

6. Can adjust or turn off any single band without influencing the other bands operation.

7. Work non-stopped.

8. Stable capability.

Application Area

1.  It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more;

2. For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.

Specifications

• Affected Frequencies Bands:

CDMA/GSM: 851-960MHz

DCS/PCS：1805-1990MHz

3G: 2110-2170MHz

4G LTE:  290-826MHz or 725-770MHz

4G WIMAX: 2620-2690MHz or 2345-2400MHz

WIFI2.4G: 2400-2485MHz

WIFI5.2G: 5250-5680MHz

WIFI5.8G: 5680-5900MHz

VHF: 135-174MHz

UHF: 400-470MHz

• Total Output power: 220W

• Power supply: AC adapter   (AC110V220V-DC24V)

• Shielding Radius:(40-100) meters@-75dBm,still depends on the signal strength in given area.

• Cooling System: 11 built-in cooling fans, 4 of them are intelligent temperature control fans

• Antenna Parameter: 10 Omni Directional Antennas, Gain: 5dBi.

• Working time: non-stopped working

• Dimension: (length, width, height) 520x310x90mm  Net weight: 13kg  Full set weight: 17kg

• Warranty: one year from delivery date

Package Contents

• Multifunction jammer x 1

• AC adapter x 1

• Antenna x 10
