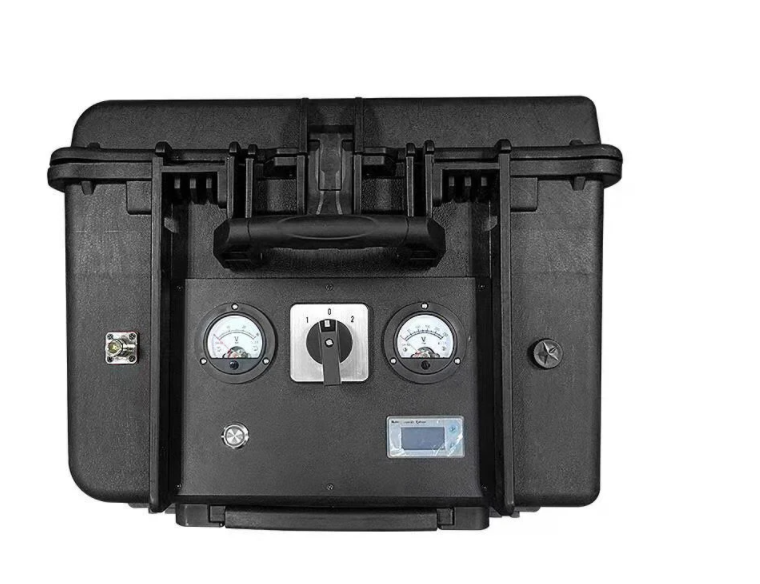

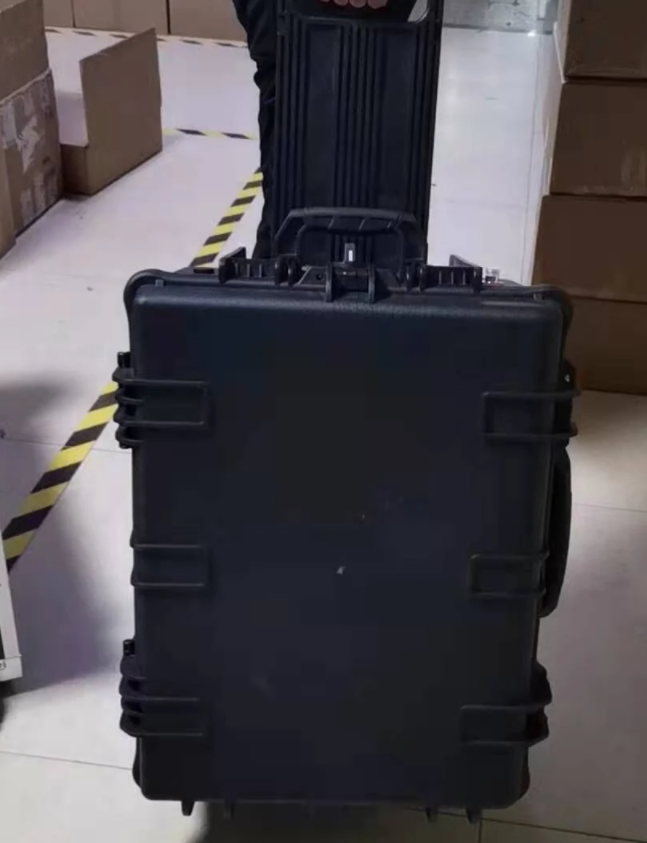

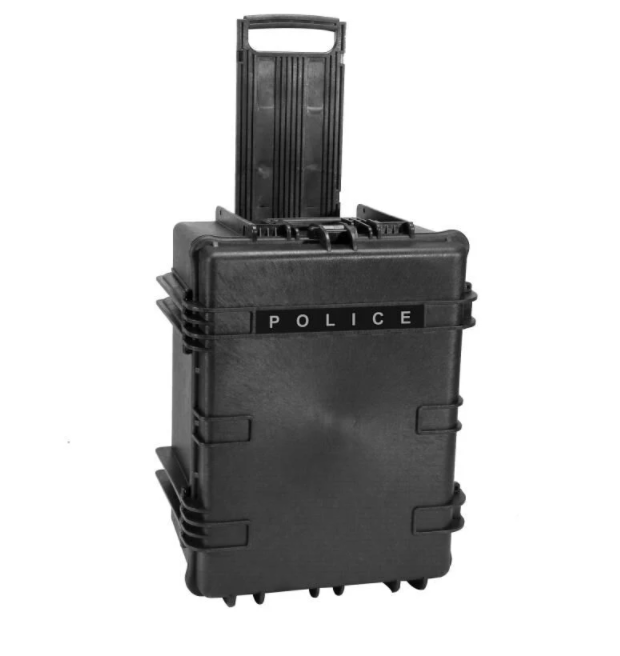

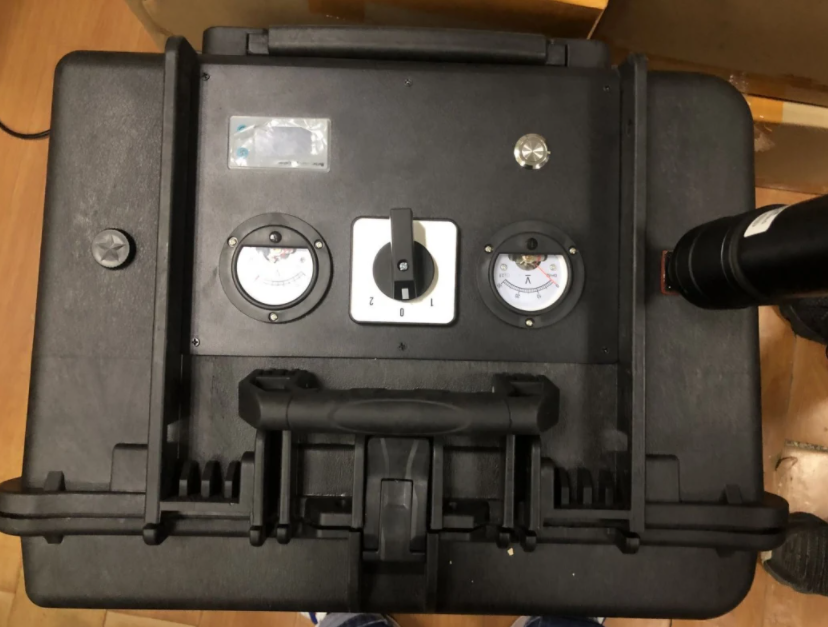

12 Band High Power Portable Mobile Signal Bomb Jammer With Built-in Antenna
Product Name : 12 Band High Power Portable Mobile Signal Bomb Jammer With Built-in Antenna
Product ID : HAG-B301
Output Power : 400W
Shielding radius : 50-500m depending on the environment signal strength
Frequency Band : 20MHz to 6000MHz ranges selectable
Power supply : 220VAC, 48VDC battery (optional)
Continuous working hours : 2hours by battery, rechargeablel ong time (AC 220V)
Directions
Product Description
The Jammer is a portable bomb jammer designed for blocking remote controlled improvised explosive devices used by terrorist.
The Jammer is using state-of-art technology for maximum performance and jamming the signals transmits to activate bombs.
Jamming radius of this Jammer depends on several conditions such as transmitter frequency and output power, distance to receiver, and obstacles between, etc.
Because of the variety of jamming targets and a wide range of uncertainties, we have adopted the more advanced and effective jamming signal modulation method, which will increase the jamming efficiency in each band, so that to provide security protection and ensure the safety of VVIPs.
Features:
Frequency bands and output power selectable
Integrated main equipment, battery, and antennas increases mobility of the device
Different frequency bands can be controlled independently by different switches
Local or wire control operation mode can be selected based on actual environment
AC or DC power supply can be selected
Power amplifiers protection design ensures the working reliability of the device
When equipment overheating, output over power, standing wave of fault alarm, shielding device will automatically shut down the failed module, avoid jammer damage;
Technical specifications:
Working frequency range: 20MHz to 6000MHz ranges selectable
RF output ports: Up to 8 RF frequecy band output ports selectable
RF output power: Up to 400W
Internal Modulation: Direct digital synthesis(DDS) or analog
Effective jamming range: 50-500m depending on the environment signal strength
Jamming target: toy remote control, car remote control, pager, walkie talkie, CDMA, GSM, DCS, PHS, 3G, Wi-Fi, remote control: wire control panel available(optional)
Power supply: 220VAC, 48VDC battery (optional)
Continuous working hours: long time (AC 220V)
2hours by battery, rechargeable

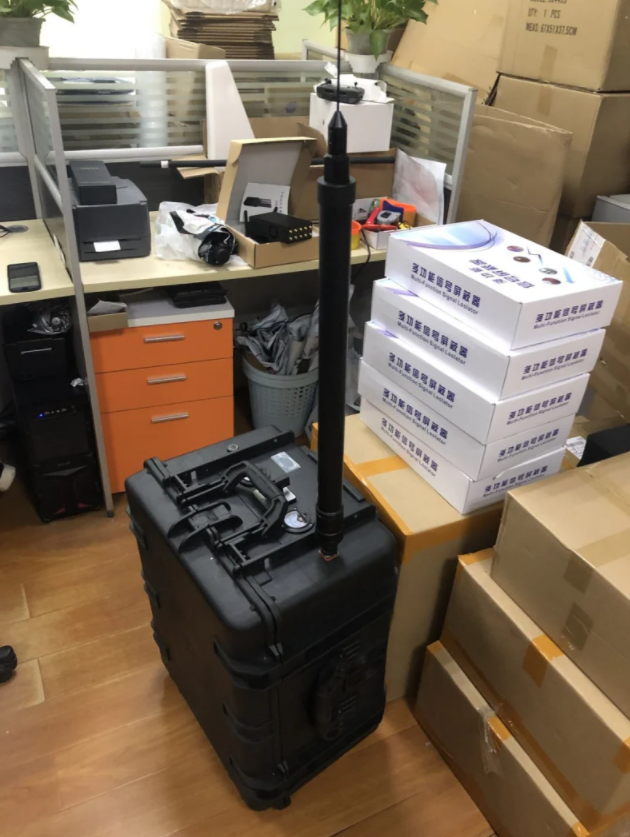

Antennas type: built-in 17dBi high-gain directional antenna
Main equipment dimension: 820*540*360mm
Main equipment weight: 50kg
Operating temp: -20ºC - +50ºC
Humidity: 5% - 95%
Applications:
Prevent remote controlled improvised explosive devices from being activated and stop terrorist attacks
Protect explosives handling experts
Protect important places such as bus/train stations, plazas, schools, mass gatherings, stadiums
Risk mitigation and explosives removal in specified spots
Police used for VVIP convoy, ECM, anti-drug, riot control
Military used for border control, ECM
The Jammer is using state-of-art technology for maximum performance and jamming the signals transmits to activate bombs.
Jamming radius of this Jammer depends on several conditions such as transmitter frequency and output power, distance to receiver, and obstacles between, etc.
Because of the variety of jamming targets and a wide range of uncertainties, we have adopted the more advanced and effective jamming signal modulation method, which will increase the jamming efficiency in each band, so that to provide security protection and ensure the safety of VVIPs.
Features:
Frequency bands and output power selectable
Integrated main equipment, battery, and antennas increases mobility of the device
Different frequency bands can be controlled independently by different switches
Local or wire control operation mode can be selected based on actual environment
AC or DC power supply can be selected
Power amplifiers protection design ensures the working reliability of the device
When equipment overheating, output over power, standing wave of fault alarm, shielding device will automatically shut down the failed module, avoid jammer damage;
Technical specifications:
Working frequency range: 20MHz to 6000MHz ranges selectable
RF output ports: Up to 8 RF frequecy band output ports selectable
RF output power: Up to 400W
Internal Modulation: Direct digital synthesis(DDS) or analog
Effective jamming range: 50-500m depending on the environment signal strength
Jamming target: toy remote control, car remote control, pager, walkie talkie, CDMA, GSM, DCS, PHS, 3G, Wi-Fi, remote control: wire control panel available(optional)
Power supply: 220VAC, 48VDC battery (optional)
Continuous working hours: long time (AC 220V)
2hours by battery, rechargeable
Antennas type: built-in 17dBi high-gain directional antenna
Main equipment dimension: 820*540*360mm
Main equipment weight: 50kg
Operating temp: -20ºC - +50ºC
Humidity: 5% - 95%
Applications:
Prevent remote controlled improvised explosive devices from being activated and stop terrorist attacks
Protect explosives handling experts
Protect important places such as bus/train stations, plazas, schools, mass gatherings, stadiums
Risk mitigation and explosives removal in specified spots
Police used for VVIP convoy, ECM, anti-drug, riot control
Military used for border control, ECM
