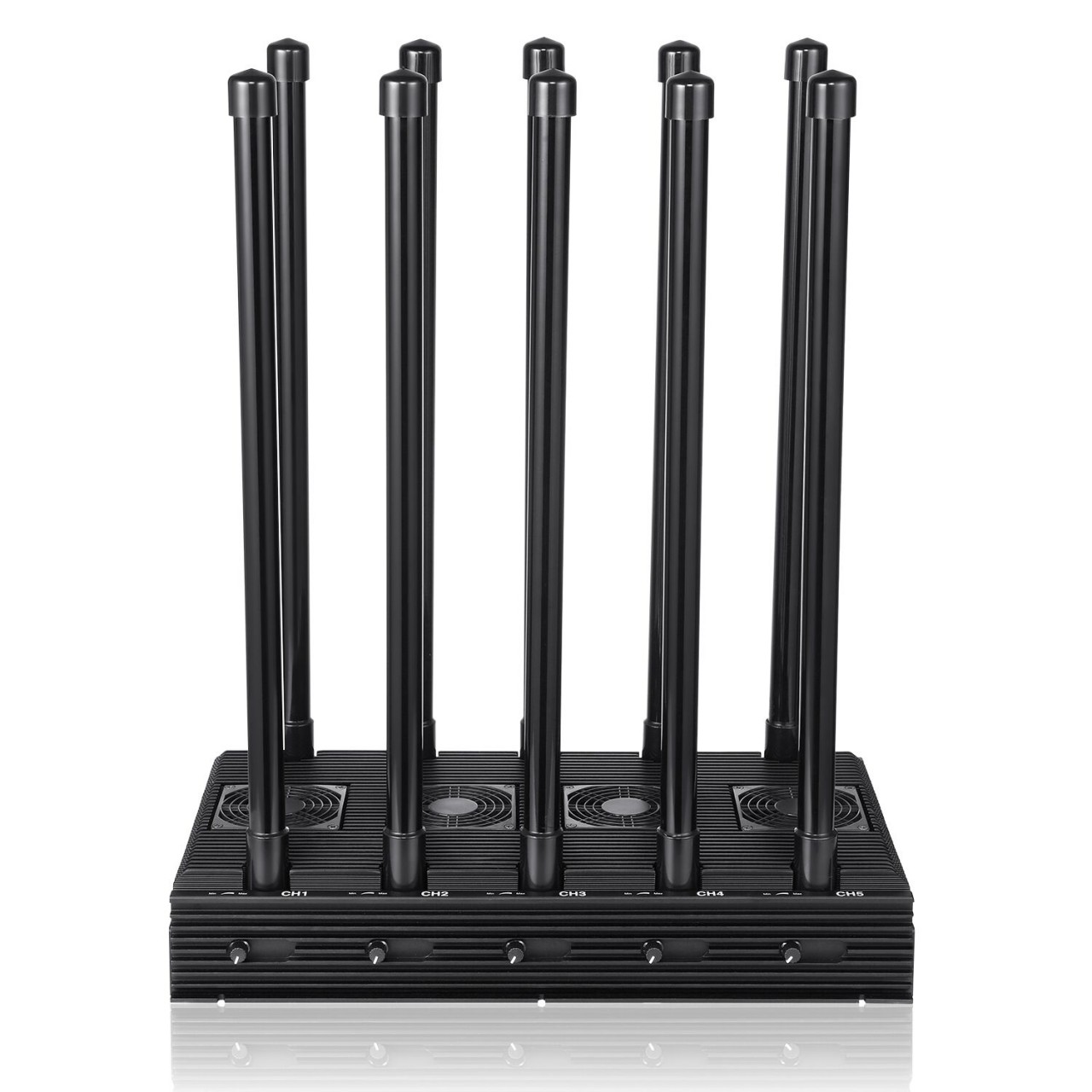

260W Intelligent Cooling System 10 Antennas 2G 3G 4G WIFI GPS Lojack Signal Jammer
Product Description
As the world first high power desktop cellphone signal jammer each channel output power up to 25W, which can also block GSM, CDMA, DCS/PCS, 3G, 4G, Wi-Fi, GPS, 5G and WIFI. This cellphone jammer can meet your target of most general type of cell phone frequencies. High power with large cover range up to 150 meters. The good cooling system with 11 cooling fans inside.There are 4 temperature control fans on the cell phone host, the fans not working immediately while the jammer started.The temperature control fans auto start running after the host surface temperature raise to 50℃, to ensure the jammer working steadily. It great for school classroom avoid exam cheat and oil/gas station keep in secure. Each band of the signal jammer the output power can be adjustable according to your request.
Advantages
-
Large coverage, covering all 2G, 3G, 4G, 2.4G, WIFI, GPS and Lojack signals.
-
High power cell phone signal jammer, up to 25 watss output power for each channel.
-
Good cooling system with 11 cooling fans inside.
-
There have 4 temperature control fans on the host,the fans not working immediately while the jammer started.The temperature control fans auto start running after the host surface temperature raise to 50℃ to ensure the jammer working steadily.
-
Low noise.
-
Can adjust or turn off any single band without influencing the other bands operation.
-
Work non-stopped.
-
Stable capability.
-
This jammer can not be used in vehicle directly,you can optional allocation 24V,35A battery, if you want to use jammer on the vehicle (Please contact us for the details) .
Jamming frequencies
|
Output Port |
Frequency |
Average Out-putting Power |
Channel Out-putting Power |
|
CDMA |
850-894 MHz |
30W/44.8 dBm |
15dBm/30 KHz(min) |
|
GSM |
925-960 MHz |
30W/44.8 dBm |
15dBm/30 KHz(min) |
|
DCS |
1805-1880 MHz |
25W/44 dBm |
13dBm/30 KHz(min) |
|
PCS |
1920-1990 MHz |
25W/44 dBm |
13dBm/30 KHz(min) |
|
3G |
2110-2170 MHz |
25W/44 dBm |
8dBm/30 KHz(min) |
|
WIFI2.4G |
2400-2500 MHz |
25W/44 dBm |
7dBm/30 KHz(min) |
|
GPS |
1570-1580 MHz |
25W/44 dBm |
13dBm/30 KHz(min) |
|
4G LTE |
790-826 MHz or 725-770 MHz |
25W/44 dBm |
15dBm/30 KHz(min) |
|
4G WIMAX |
2620-2690 MHz or 2345-2400 MHz |
25W/44 dBm |
7dBm/30 KHz(min) |
|
Lojack |
165-174 MHz |
25W/44 dBm |
7dBm/30 KHz(min) |
|
Power supply: AC adapter (AC110V220V-DC24V) |
|||
|
Shielding Radius: 60 to150 meters @-75dBm, still depends on the signal strength in given area. |
|||
|
Antenna Parameter: Omni Directional Antenna, Gain:5dBi. |
|||
|
Optional Frequencies:315 MHz, 433 MHz, 868 MHz, 170-1280 MHz, 1370-1390 MHz, 5100-5680 MHz, 5680-5900 MHz, 3400-3600 MHz,3600-3800 MHz |
|||
|
Total output power: 260 watts |
|||
|
Dimension: 520 x 310 x 90 mm (length, width, height). Net weight: 12 KGS. Full set weight: 15 KGS |
|||
|
You can select 10 of above frequency bands as your needed, in default we will send by country different. |
|||
Accessories
-
Multifunction jammer x 1
-
AC adapter x 1
-
Antenna x 10
