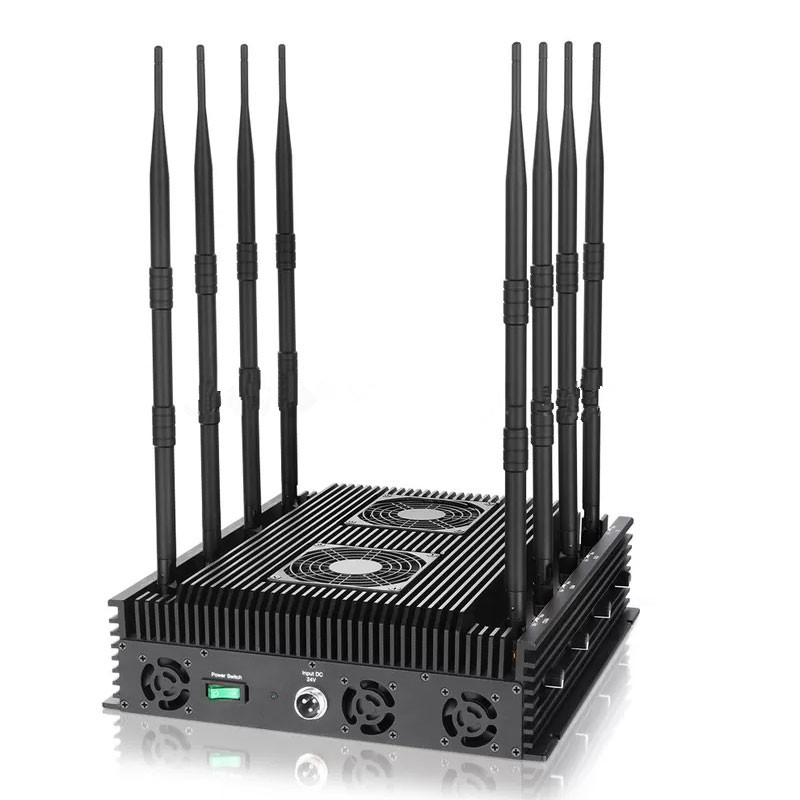

Adjustable 8 Antennas Block 2g, 3G, 4G, WiFi, GPSL1, Lojack Signal Jammer
Product Description
Application
-
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security.
-
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
Advantage
-
8 channel design, 6-10 watts for each band
-
High output power, total up to 68 watts, jamming up to 80 meters (depends on the strength signal in given area)
-
External high gain 3 dbi Omni-directional antennas all the TX frequency covered down link only.
-
Build-in AC110-240V to 24V power adapter, safe and easily for use.
-
Built-in good cooling system with 9 fans, working non-stopped.
-
Power is adjustable, you can turn off any single band without influencing the other bands operation.
-
Independent module design with frequency source of each channel, easy for maintenance (if have any damaged frequency band, replace with new PCB directly, no need for professional equipment such as frequency analyzer)
-
ODM and OEM orders are welcome, you can select any 8 bands for your requirement.
Notice: If you want to use this device in car, please buy an inverter of DC12V/24V to AC110-240V, Power ≥ 200 Watts.
Specification
|
Jamming Frequencies: |
||
|
Output Port |
Frequency |
Average Out-putting Power |
|
CDMA/GSM |
850-960 MHz |
10W/40 dBm |
|
Lojack |
135-174 MHz |
6W/37.5 dBm |
|
DCS/PCS |
1805-1990 MHz |
10W/40 dBm |
|
3G |
2110-2170 MHz |
8W/39 dBm |
|
WIFI2.4G |
2400-2500 MHz |
6W/37.5 dBm |
|
GPSL1 |
1570-1580 MHz |
8W/39 dBm |
|
4G LTE |
790-826 MHz or 725-770 MHz |
10W/40 dBm |
|
4G WIMAX |
2620-2690 MHz or 2300-2400 MHz |
6W/37.5 dBm |
|
Dimension: 310 x 290 x 90 mm (not Include Antenna) Gross Weight: 8.5 KGS |
||
|
Warranty: one year from delivery date |
||
Frequency bands can be customized, the below frequencies you can instead of above one to combined 8 bands,in default we will send by country different.
|
1 |
GPSL2+L5 |
1170-1280MHz |
8W/39dBm |
|
2 |
GPSL3+L4 |
1370-1390MHz |
8W/39dBm |
|
3 |
315 |
310-320MHz |
6W/37.5dBm |
|
4 |
433 |
430-440MHz |
6W/37.5dBm |
|
5 |
868 |
868MHz |
10W/40dBm |
|
6 |
VHF |
135-174MHz |
6W/37.5dBm |
|
7 |
UHF |
400-470MHz |
6W/37.5dBm |
|
8 |
LOJACK |
135-174MHz |
6W/37.5dBm |
|
9 |
WIFI 5.2G |
5100-5500MHz |
1.2W/31dBm |
|
10 |
WIFI 5.8G |
5500-5900MHz |
1.2W/31dBm |
|
11 |
5G LTE1 |
3400-3600MHz |
8W/39dBm |
|
12 |
5G LTE2 |
3600-3800MHz |
8W/39dBm |
Package Contents
-
Jammer Host x 1
-
AC Plug x 1
-
Antenna x8
