H&G Technology CO., LTD

Intrusion of a UAV (Unmanned Aerial Vehicle) or Drone can present a nuisance and potentially a real security threat at public events and secure facilities. This High Power 300W 6 Channels Drone Signal Jammer for UAV Up to 1000m is designed to clear the area of these unwanted vehicles.

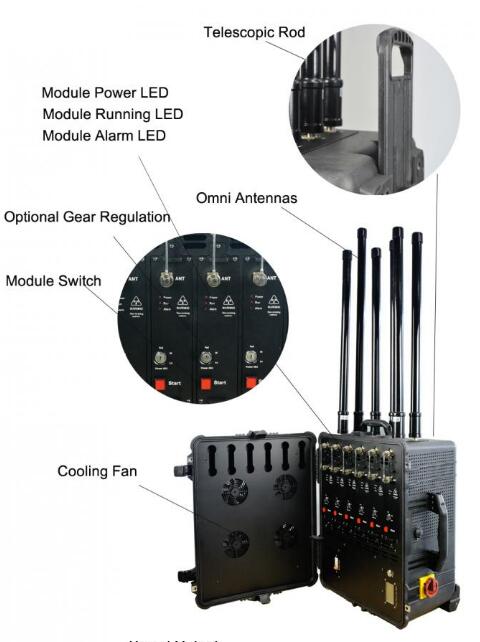

Features

• Ultra-wideband jamming coverage;

• Draw-bar box designed for portability and easy moving;

• Built-in rechargeable battery can be used for 90~120 minutes after being fully charged;

• Manual switch and remote control;

• Each channel module can start or close individually;

• Efficient frequency division ensures the best interference effect on signals of different frequencies;

• Efficient power distribution minimizes power loss and improves efficiency; the power can be regulated as needed ( optional gear regulation);

• Military standard casing, which is anti-throw, pressure-resistant and durable;

• AC110-220V/Built-in battery supply (DC24V)/Vehicle power supply (DC24V);

• Built-in efficient cooling fan and cooling fin ensures the product work stably in a long service life

Applications

It is suitable to protect important leadership or VIP security, individual combat, SWAT teams, EOD teams, anti-terrorist units, anti-drug units, bomb squad, security checkpoints, administrative law enforcement, hostage negotiations, border control and military security forces and other application areas.

Specification

• Affected Frequencies Bands(Frequency parameters can be customized. Typical frequencies are shown below):

WiFi 2.4G: 2400-2450MHz

WiFi 2.4G: 2450-2500MHz

WiFi 5.8G: 5727-5850MHz

GPSL1: 1520-1580MHz

433: 433MHz

868: 868-920MHz

• Transmission Power: Integrated Equipment≥300W,each channel≥50W

• Jammed Signal Types: CDMA:2.4G,2.4G,5.8G,GPSL1,433, 868-920MHz

• Output Channel: 6 output channels

• Net Weight: 49kg, Total Weight: 85kg Aviation Case included

• Dimensions: Host:(L*W*H)650*509*357mm, Antenna:760mm Φ35

• Ambient Temperature: -10℃-+50℃

• Relative Humidity: ≤80%

• Power Consumption: ≤360W

• Power Input: AC100-240V,DC24V

• Battery: 24V,46AH,Built-in standby battery can used for 90-120 minutes

• Antenna Parameters: Omni antennas,gain7dBi

• Switch Control: Manually

• Equipment Chassis: Metallic Paint

• Shielding Range: up to 1000m

Package Contents

• Jammer Host x 1

• Antenna x 6

• AC Charger x 1

• Line Control x 1
