Outdoor IP55 High Power UAV Signal Jammer Shield Device System with IP Network Monitoring for Long Distance 1000 to 3000m
Product Description
Function:
- It will force the flying UAV drone out of control, hover/land/return home, and stop data transmission to the ground by interfering the UAV control signal of WIFI 2.4G 5.8G and GPS etc.
- UAV status: searching network, no signal, no service, etc; remote control loses action function;
- ground can not receive photo and video of the UAV; UAV will be forced landing, hovering or returning home
- We can do 5.8G RF jammer module 40W or 50W, other module over 100W
-
Feature
1. Ultra high power 190W, combined with high gain directional antenna for each band
to shield radius 1000 to 3000 meter area (depends on real environment and signal strength)
2. 3 channel or More channel signal shielding IP64 level main control engine, or other customized frequency 433MHz, 868MHz, 912MHz, 916MHz, GPS/Glonass navigation signal,
3. Seperate fequency RF module and Single Switch control to exactly shield specific signal also for customized frequency and easy maintainance
4. Efficient heat dissipation system: fast blow heat away to ensure long time operation
5. Optional monitoring software monitoring for client : can support PC operation, phone APP control, drone detecting integrated system
6. VSWR protection: use power supply protection box, to ensure stable and safe power supply
7. Huawei latest high tech thunder protection box
8. Only influence downlink; No influence to base station

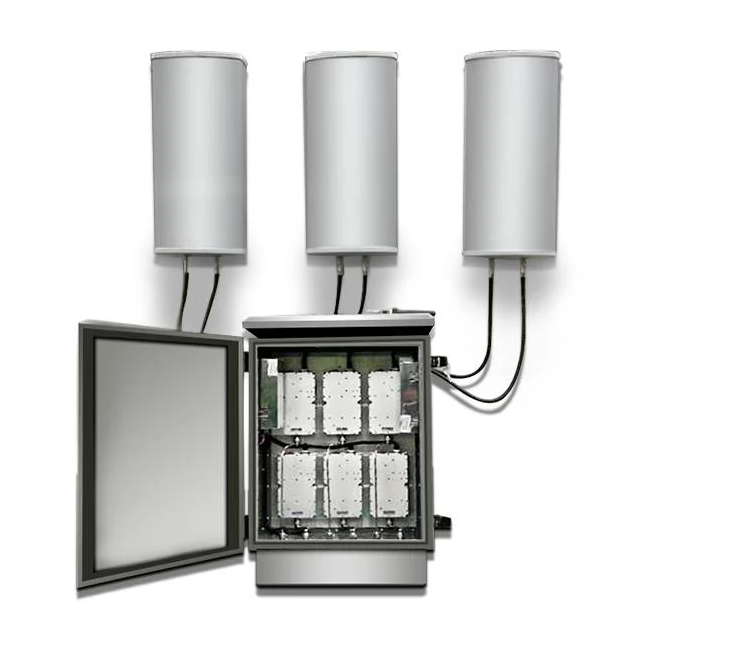

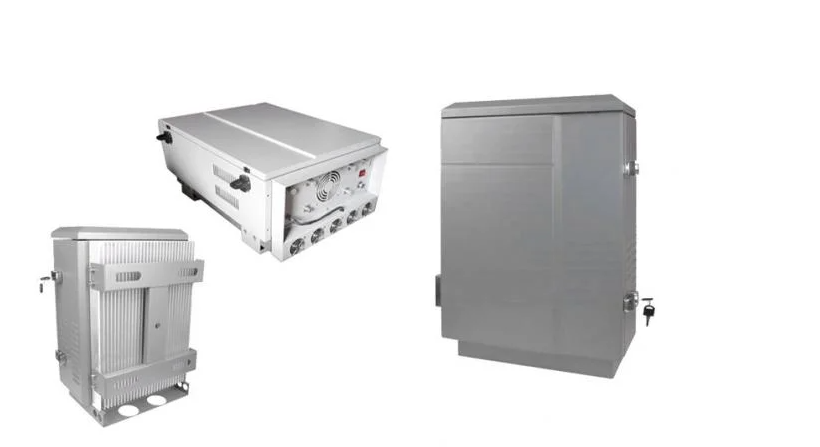

Main Engine Case
1. IP64 level reoxidation alluminum alloy design, Hinge lock protection for easy management and and
anti-damage
2. N type connector(customized) to link with Antenna

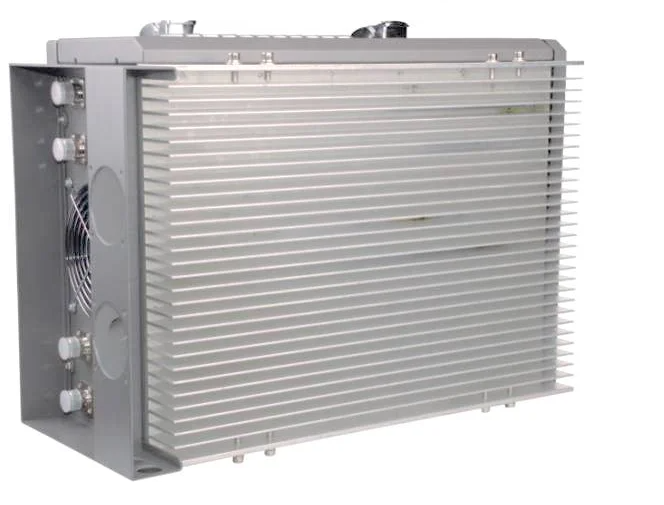

3. Efficient heat dissipation system with built in fan and fin
4. Main switch to control the complete device work

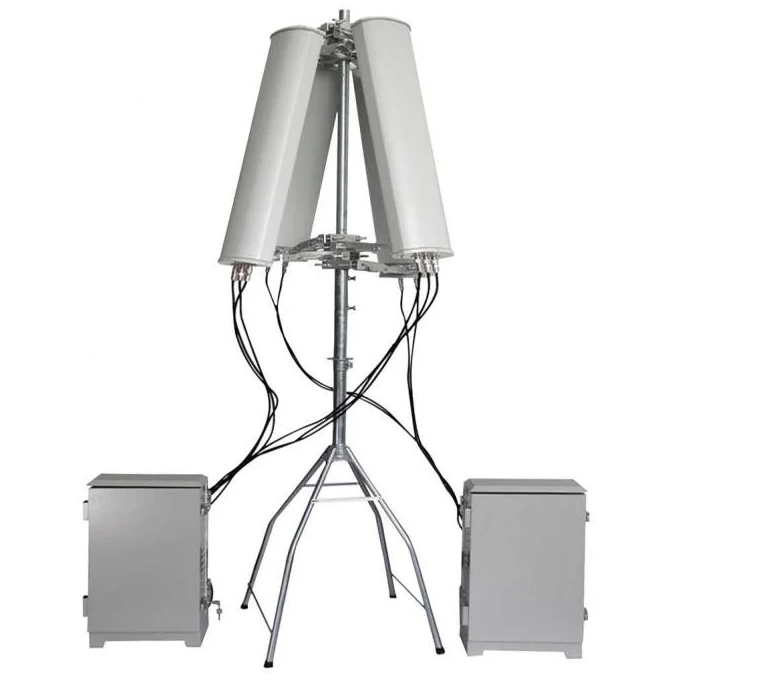

5. Optional choice for directional or omni fiberglass antenna
6. Seperate module design, For single frequency control
7. LED indicates the working-on status
8. Over temperature and VSWR protection with power supply protection box
9. Please Ensure the anntenna is connected before turning power on
Optional Frequency (10W, 20W,30W,40W, 50W, 100W)
CDMA/GSM850MHz:850-894MHz; 100W;
GSM900MHz:925-960MHz; 100W;
GSM/DCS1800MHz:1805-1880MHz; 100W;
3G/UMTS2100MHz:2110-2170MHz; 100W;
4GLte700MHz:790-826MHz; 100W;
4G/WiMAX2600MHz:2620-2690MHz; 100W;
WIFI2.4G:2400-2485MHz; 100W;
4G2500MHz:2500-2570MHz; 100W;
GPSL1:1570-1610MHz; 100W;
GPSL2:1200-1300MHz; 100W;
GPSL3:1380-1400MHz; 100W;
Wi-Fi5.8GHz:5725-5850MHz; 10W;
VHF:135-174MHz; 100W
UHF:400-470MHz; 100W
RC433MHz:433MHz; 100W
RC315MHz:315MHz; 100W
CDMA450MHz:450-470MHz; 100W;
Accessories
-
Power adaptor
-
Antennas
