Product Name : 35W High Power Wall Mounted WiFi Signal Jammer for School Examination with 15m Range
Product ID : HAG-W333
Total Power : 36 watt
Typical Coverage : 15-20 meter(depends on real environment )
Working Band : All 2G 3G 4G +WIFI
Power Supply : AC110~220,DC12V/10A
Weight : 5.5KG
Directions

Product Description


Phone WiFi Signal Jammer Wall Mount 9 Channel For School Examination


Brief Introduction
It is a customized phone wifi signal jammer specially for school and other examinations, to avoid cheating and copying in examinations by phone wifi signal.

It adopts RF jamming 9 channels and can shield phone wifi signal in large area in 10-20 meter radius
(depends on real using environment ).
In that area, the phone can not send or receive messages or calls, and Wifi network can not be used anymore.



Product Feature
  • High output power each channel about 5W, total output 35W
  • Each channel has its own single RF jamming modules for effective and long rane jamming effect
  • Built-in high gain antenna than outside antennas to reduce the outer environment damage and increase the life span
  • Alluminum alloy outshell be waterproof, dustproof, heat-resistant, anti-corrossive and moisture-resistant

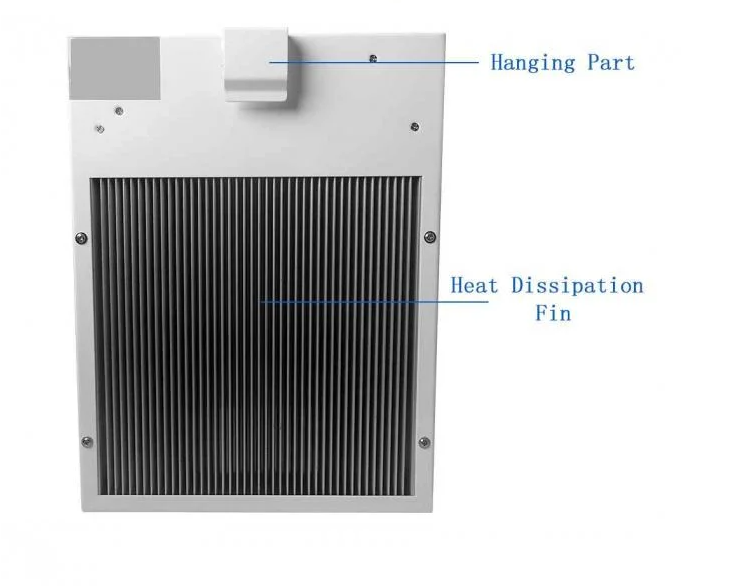

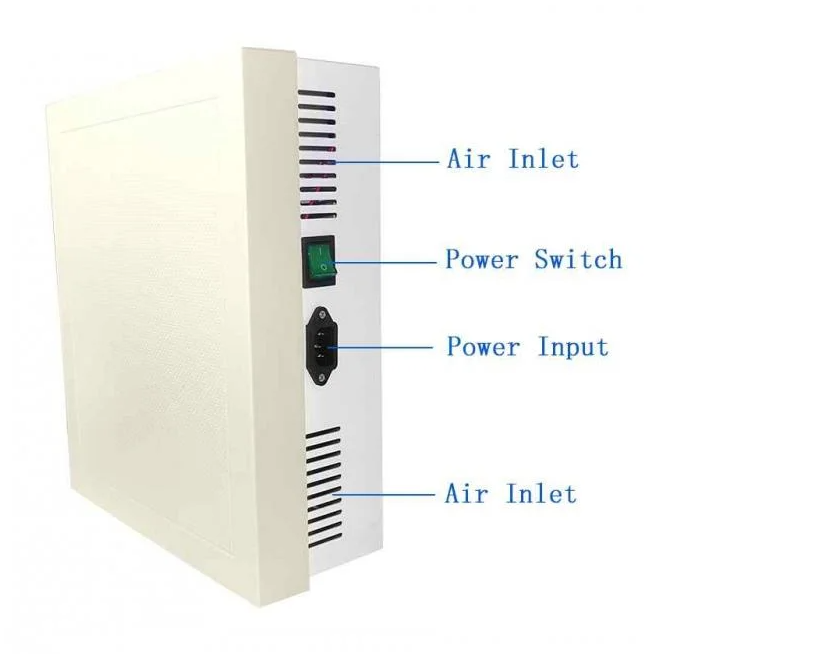

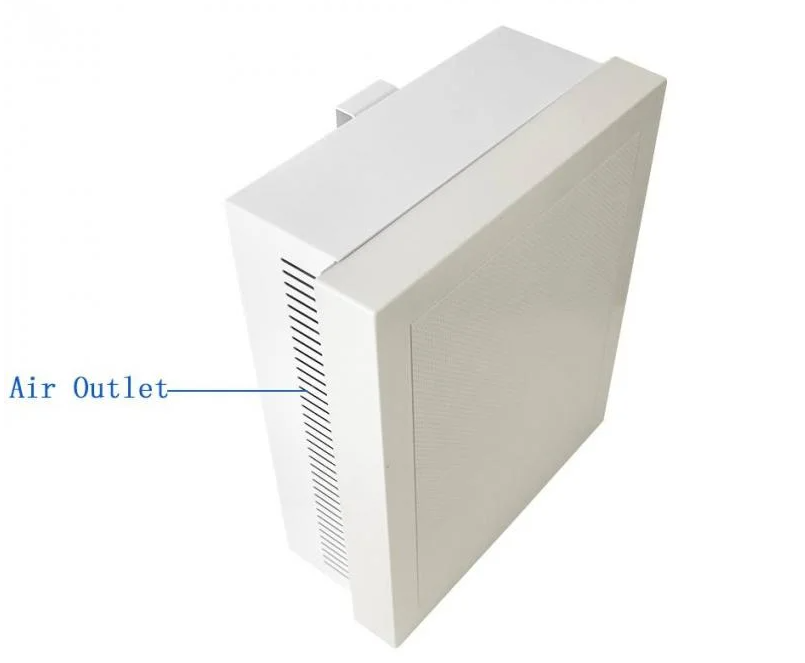

  • Smart heat-dissipation system with ventilation holes, built in ultra thick heatsink, fins and large 6*6CM fans to
  • suck cool air in and blow hot air out, for stable and long time use
  • Space-saving with small size and light weight
  • It can work continuously 24/7 non stop
  • It only shields the phone wifi signal in certain area and does not have any effect to the mobile phone base station


Specificaion

Output
Interface
Shield Band
Frequency Detail
Average RF
Output power
Output power
Each Channel
CDMA 865-880MHZ 37dBm 5dBm/30KHz(min)
GSM 935-960MHZ 37dBm 5dBm/30KHz(min)
DCS 1805-1880MHz 35dBm 5dBm/30KHz(min)
TD 2005-2015MHz 34dBm 2dBm/30KHz(min)
LTE 2300-2400MHz 32dBm 2dBm/30KHz(min)
WIFI 2400-2500MHz 34dBm 2dBm/30KHz(min)
3G 2010-2170MHZ 34dBm 4dBm/30KHz(min)
4G 2550-2660MHz 34dBm 2dBm/30KHz(min)
4G 1880-1920MHz 35dBm 2dBm/30KHz(min)
Power Supply AC110~220,DC12V/10A
Jamming Range/Radius 15-20 meter(depends on real environment )
Power consumption 50W
Total Output 36W
Weight 5.50 kg
Size 330×270×80 mm
Working Temperature  -40ºC~55ºC
Relative Humidity 35~85%
Power Consumption ≤120W
Suggested Installation Height 1.8~2.5m

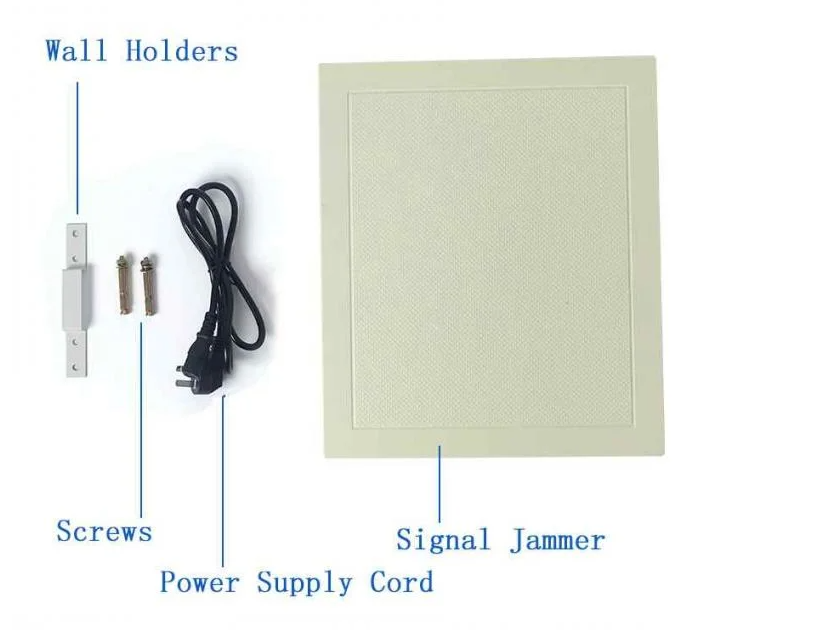

Package List

Number Item Name Quantity
1 School Signal jammer 1
2 User Manual 1
3 Installation Screws 2
4 Wall Holder 1
5 Power Supply Cord
