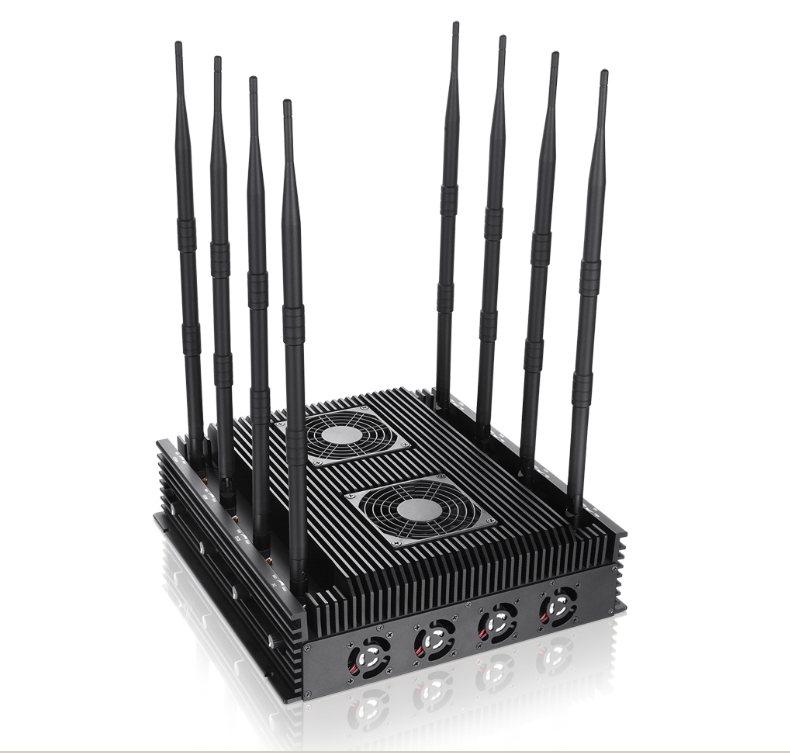

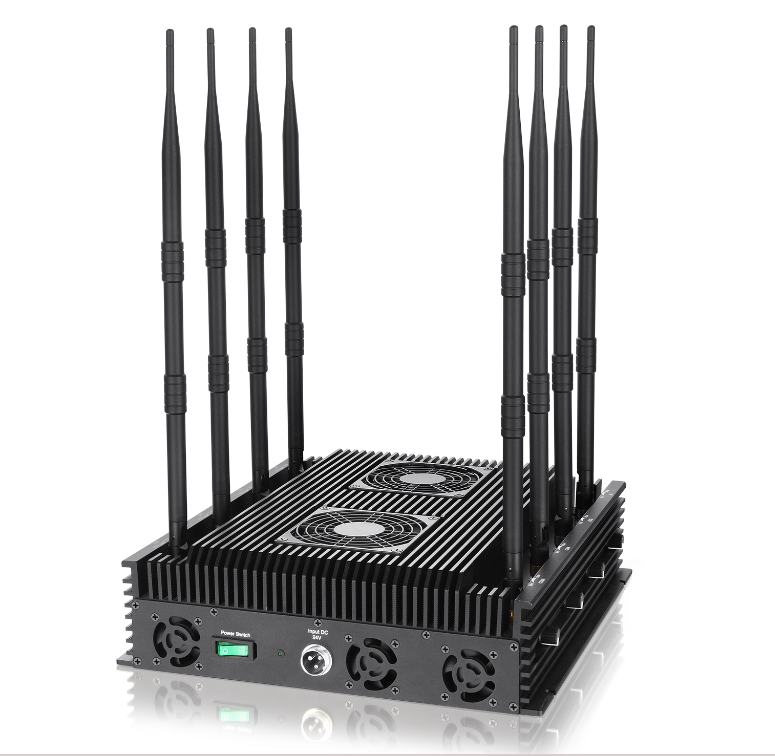

8 band WiFi GPS RF Remote Control Blocker UAV Drone Signal Jammer
Product Name : 8 band WiFi GPS RF Remote Control Blocker UAV Drone Signal Jammer
Product ID : HAG-U156
Output Power : 68W
Shielding Radius : 50-100meters @-75DBM (depends on the signal strength in the given area)
Affected Frequencies Bands : 1. GPS L2-L5:1170-1230MHz 2. GPS L1:1520-1580MHz 3. 2.4G WIFI:2400-2450MHz 4. 2.4G WIFI:2450-2485MHz 5. GSM:900-930MHz 6. 5.8G WIFI:5725-5850MHz 7. 433: 433MHz 8. 868: 868-900MHz
Working Time : Work non-stopped, Can work 24 hours * 7 days * 12 month
Size : 310x 290x 90 mm(not Include Antenna)
Directions
Product Description
Features:
1. 8 antennas design,3-10 watt each band
2. High output power, Total up to: 68W, jamming up to 100m (Still depends on the strength signal in given area)
3. External high gain 3-5dbi Omni-directional antennas all the TX frequency covered down link only
4. Build-in AC110-240V to 24V adapter, Safe and easily use.
5. Built-in good cooling system inside 9 fans and temperature control fans.Working non-stopped
6. Can adjust or turn off any single band without influencing the other bands operation
7. Independent module design with frequency source of each channel, easy maintenance (if have any damaged frequency band, replace with new PCB directly, no need for professional equipment such as frequency analyzer)
Manufacturer Specifications
Affected Frequencies Bands:
1. GPS L2-L5:1170-1230MHz
2. GPS L1:1520-1580MHz
3. 2.4G WIFI:2400-2450MHz
4. 2.4G WIFI:2450-2485MHz
5. GSM:900-930MHz
6. 5.8G WIFI:5725-5850MHz
7. 433: 433MHz
8. 868: 868-900MHz
Output Power:68W
Power supply: AC 110V/220V DC 24V
Shielding Radius:50-100meters @-75DBM (depends on the signal strength in the given area)
Working Time:Work non-stopped, Can work 24 hours * 7 days * 12 month
Size:310x 290x 90 mm(not Include Antenna) full set Weight:8.5kg

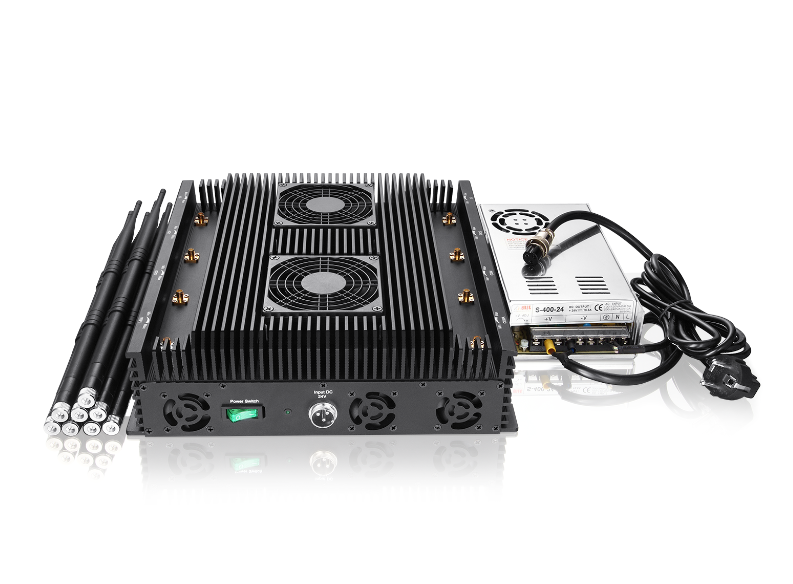

Package Contents
1 x Jammer Host
8 x Antenna
1 x AC Adapter
