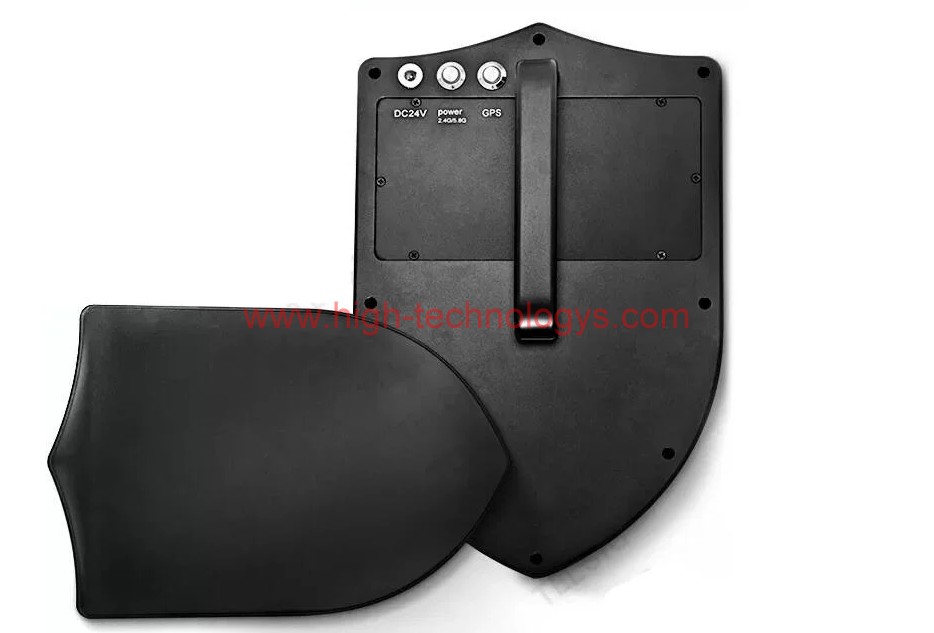

Shield Long Distance Drone Uav Blocker Intercept Anti Drone Jammer
Product Description
|
Detail Information |
|||
| Color: | Black | Frequency: | 2.4g 5.8g Gps |
|---|---|---|---|
| Marterials: | ABS+metal | Output Power: | 23W |
| Quality Warranty: | 12 Months | Built-in Battery: | 24V, 3500mAh |
Product Description
The shield drone Jammer is independently developed, produced and sold by our company. It prevents illegal drones effectively. This machine adopts 3 channel output, which can shield regular drone single (2.4G/5.8G, GPS) let them returning or forced landing, the control range is up to 2 kilometers.
Product Features:
1. Handhold, easy to carry and operate
2. Aluminum back shell, with good heat dissipation
3 The effective jamming distance is up to 2000 meters
It's very light and easy to carry.
4. It can jam remote control signals of low-flying drones, and it doesn't affect other signals. Effectively excoriate the drones spy or crash-landing.
-----Instructions-----
1. Check whether the accessories are complete when you open the box and take out the device.
2. Make sure the device is fully charged on the first use, red light charging, green light full.
3. Easily using: face to UAV and press the switch.
Press 2.4G and 5.8G buttons, aiming at stopping peeping, force UAV to returning.
Press GPS button the UAV in posture mode
Press all the buttons aiming at force UAV landing
|
Channel |
Status |
Result |
|
2.4G/5.8G |
ON |
Drone will return back automatically |
|
GPS |
OFF |
|
|
2.4G/5.8G |
OFF |
Drone in Pose Mode |
|
GPS |
ON |
|
|
2.4G/5.8G |
ON |
Drone will be forced landing |
|
GPS |
ON |
| Channel | Working frequency | Output power(±1dBm) | Output (W) | |
| CH1 | 2.4G | 2400-2485MHz | 40 dBm | 10W |
| CH3 | 5.8G | 5725-5850MHz | 37 dBm | 5W |
| CH2 | GPSL1 | 1560-1620 | 40 dBm | 10W |
| Specifations | |||
| Model No. | HAG-D187 | ||
| Power supply mode | AC100-220V, DC:24V | ||
| Battery working time | 45-70 minutes | ||
| Working temperature | -40ºC to +70ºC | ||
| Power consumption | 55W | ||
| Output Power | 25W | ||
| Packing weight: | 1.5KG | ||
| Size | 277X80X51mm | ||
| Jamming range | 500-1000meter | ||
| Panel Antenna | 10dBi Gain | ||
-----Application-----
Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms, courthouses, labor camp, all kinds of military important places, forbid aerial photography by use of drone, etc
-----Features-----
1. With imported chips, using ultra-high speed sweeping technology to generate multiple bandwidth signals
2. Wideband ultra-high gain integrated antenna and built-in battery design, easy to carry and operate
With international technology of secondary oxidation and wear resistance, aluminium shell helps for intelligent temperature controlling and cooling
Effective jamming distance is 800-1000 meters, depending on the distance of more than 100 meters between remote control and UAV.

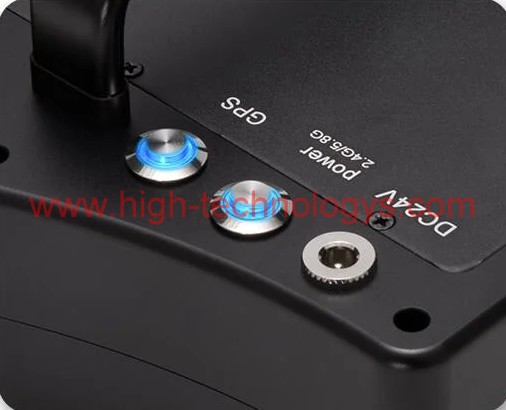

5. There is a power switch in the visible part of the body, including a power indicator, which can be operated directly by one hand.
6. Independent design of control switch, aiming at stopping peeping, driving away and forcing to land
