If you want to find nice and usefu Yagi Antenna. Distribution: by the direction of antenna pointing to the company can launch stations, outdoor antenna BaMu directional antenna. To achieve the best effect, Yagi Antenna can receive omni-directional antennas by indoor height of installation, for 2-3 meters. An interior without blocking range below 300 square meters only install 1 antenna 300-500 square meters, the scope to pack 2 Best Antenna, range 500-800 square meters to 3 antennas installed.Small Cheap Antenna with great use, you will like the way it works!


Specifications:

• Frequency range:800-960MHz
• Gain ( dB):Uplink  11DB
• I/O impedance:50Ω/N connector
• Ambient temperature:-10°C ~ 60°C
• Size:Φ740 mm;
• Power:50W max
• Joint model:N-female
• VSWR:1:1.3
• Weight:0.76kg
• Color:White

Product Notes:

• Fix up outdoor antenna reception on housetop and point to signal tower
• Connect outdoor antenna to ''outdoor'' port in repeater machine through cable
• Connect indoor antenna(s) to ''indoor'' port in repeater machine through cable also
• Plug power adaptor into AC power socket and finish installation
• If still no signal receipt after activated booster, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
• Please adjust the direction of outdoor antenna if it cannot call out
• If strength is not steady, please check if outdoor and indoor antenna are too close.
• Please ensure the outdoor and indoor antenna have distance of 20 meters at least ,with  wall between and net a same horizontal line
• The distance between the outdoor antenna and the amplifier is not more than 30 meters
• The outdoor Antenna not close to a large antenna, high-voltage lines, transformers, or metal mesh, etc.
• The distance between the indoor antenna and the amplifier is not more than 40 meters
• The indoor antennas do not close to the wall as far as possible in order to increase the coverage area
• The indoor antenna and the outdoor antenna are advised to stay away from each other for
• If lack of communication quality, please change the installation position of the outdoor antenna and adjustment the indicate direction of antenna
• It is best to enclose waterproof tape at the junction, and prevent moisture narrow the indoor signal coverage area
• Try to straight the cable, do not bend more than 90 degree

Accessories:

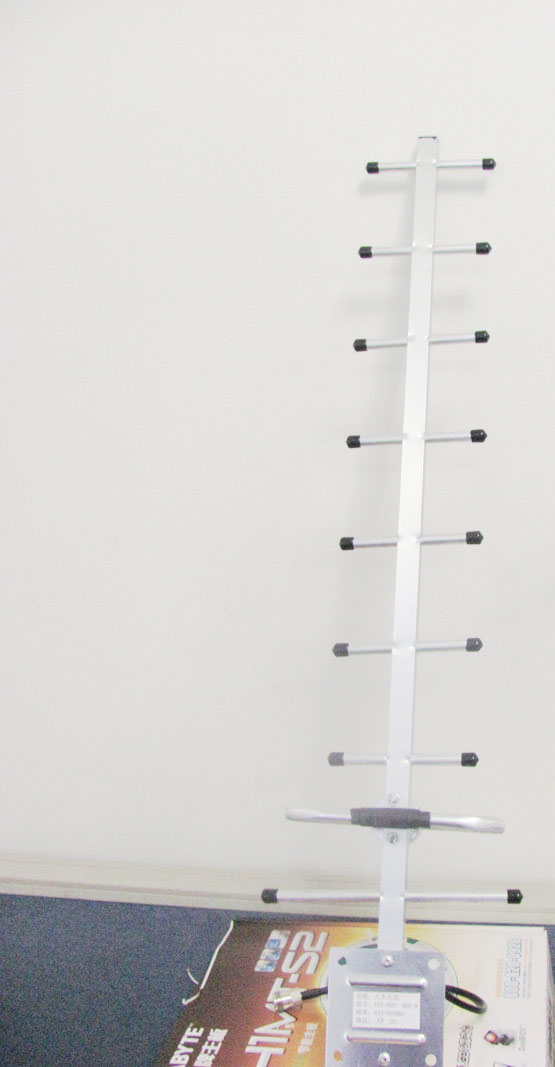

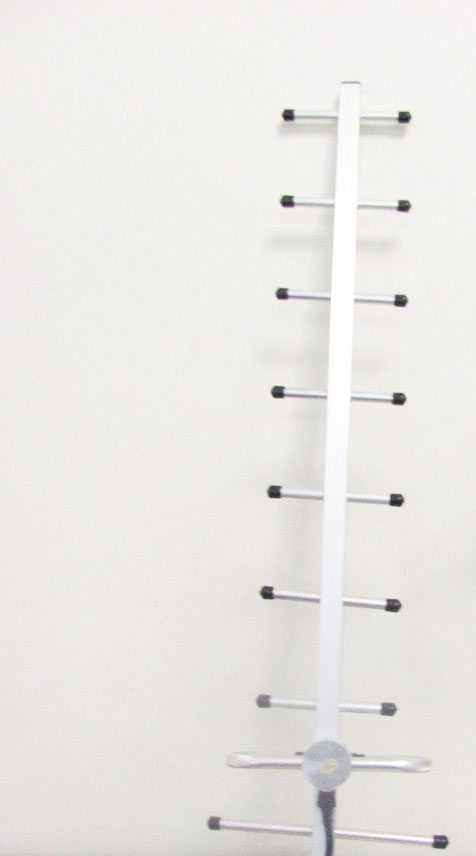

• GSM 800-960MHz Yagi Antenna Antenna
