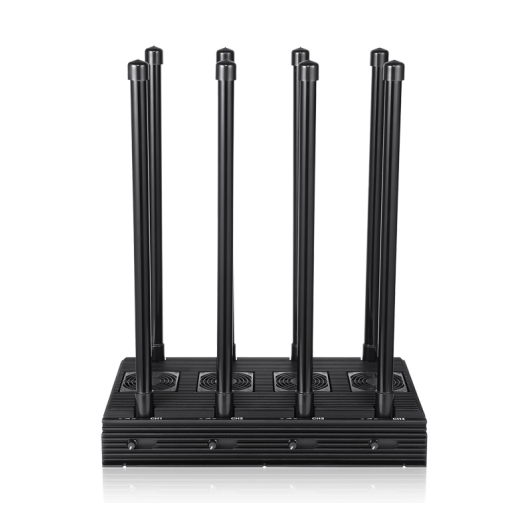

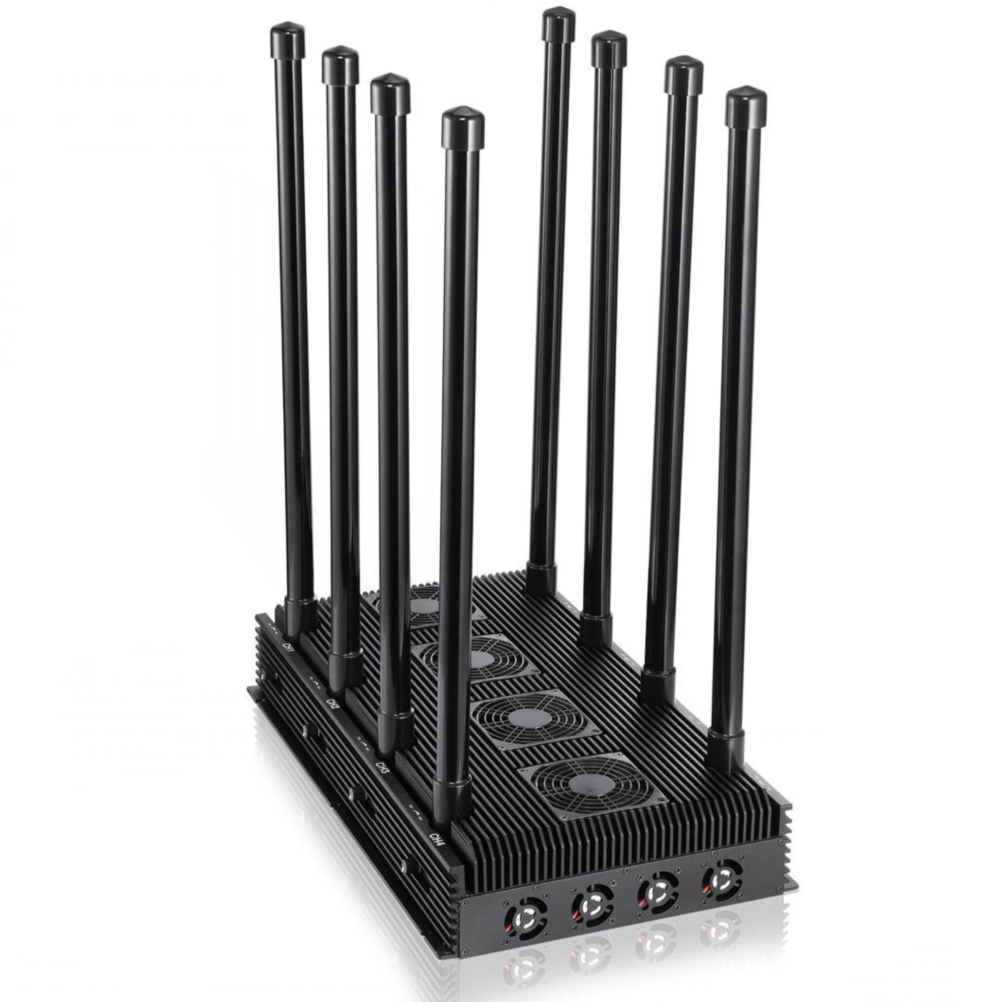

This 210W Medium Power 8 Antennas Desktop 5G Cell Phone Signal Jammer is the latest medium power design. It's a high power desktop cellphone signal jammer, each channel output power up to 25W-30W, which can block GSM, CDMA, DCS/PCS, 3G, 4G and newest 5G cell phone at the same time.

This cellphone jammer can meet your target of most general type of Cell phone frequencies. Higher power with large cover range, up to 150 meters. Good cooling system with 11 cooling fans inside. There have 4 pcs temperature control fans on the host, the fans will not working immediately while the jammer started. The temperature control fans auto start running after the host surface temperature raise to 50℃ after some time the use, to ensure the signal jammer working steadily. It great for school classroom avoid exam cheat and oil/gas station keep in secure. The each band output power can be adjustable according to your request.

Advantages

• Large coverage, covering all 2G, 3G, 4G and newest 5G cell phone signals

• High power cell phone signal jammer, up to 25W output power for each channel

• Good cooling system with 11 cooling fans inside

• There have 4 pcs temperature control fans on the host, the fans not working immediately while the jammer started. The temperature control fans auto start running after the host surface temperature raise to 50℃ to ensure the jammer working steadily

• Low noise

• Can adjust or turn off any single band without influencing the other bands operation

• Work non-stopped

• Stable capability

Application Area

1. It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more;

2. For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument else.

Specification

• Jamming Frequencies:

  CDMA: 850-894 MHz

  GSM: 925-960 MHz

  DCS & PCS: 1805-1990 MHz

  3G: 2110-2170 MHz

  4G LTE: 725-770 MHz Or 790-826 MHz

  4G Wimax: 2345-2400 MHz Or 2496-2690 MHz

  5G Cell Phone: 3400-3600 MHz

  5G Cell Phone: 3600-3800 MHz

• Total Output power: 210 W (25-30W each band)

• Power supply: AC adapter   (AC110V220V-DC24V)

• Shielding Radius:(60-150) meters@-75dBm,still depends on the signal strength in given area.

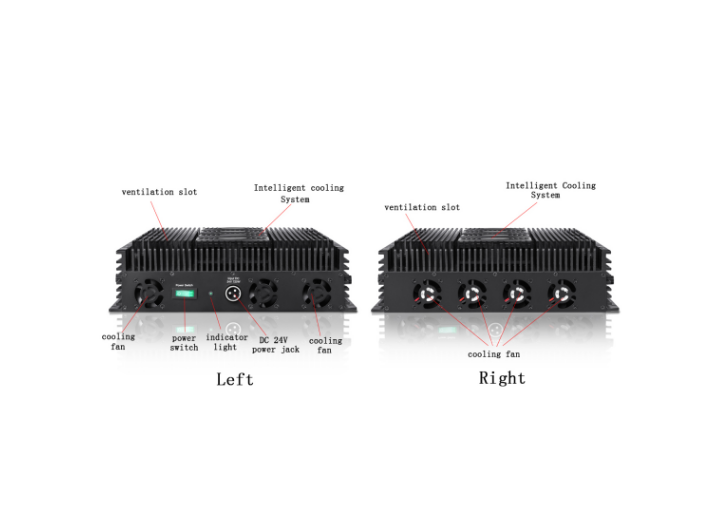

• Cooling System: 11 built-in cooling fans, 4 of them are intelligent temperature control fans

• Antenna Parameter: 8 Omni Directional Antennas, Gain: 5dBi.

• Working time: non-stopped working

• Dimension:520x310x90 mm  (length, width, height)

• Net weight: 12 KGS

• Full set weight: 15 KGS

• Warranty: one year from delivery date

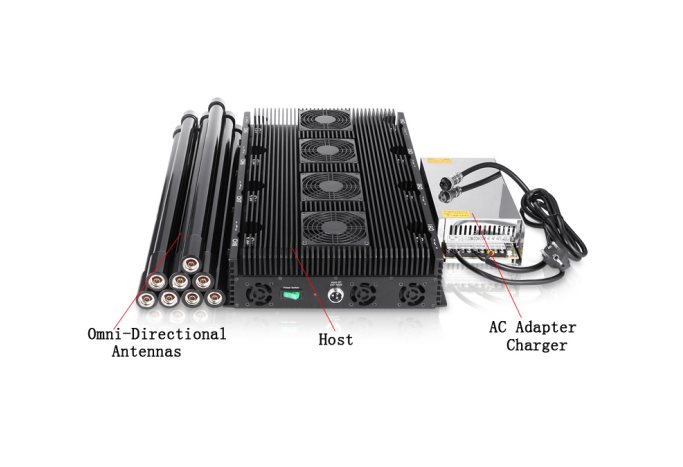

Package Contents

• Multifunction jammer x 1

• AC adapter x 1

• Antenna x 8
