Product Description

High power portable jammer(HAG-5G28W) is the updated version of HAG-5GT8, it can effectively block CDMA,GSM,3G UMTS,4G LTE 5G cellphone ,GPS,Wi-Fi/Bluetooth ,Lojack ,it could block all types of Android phones, Tablets, Smart Phones, iPhones, Win phones etc. This portable jammer could work for wireless 2G, 3G, 4G, 5G WiMax, Wi-Fi, Bluetooth ,GPS Lojack signals, you could choose this model that will be work stably and reliably. The blocker could create a quiet zone around you and prevent leaking of information in sensitive areas.

Specifications: HAG-5G28W

Channel        Output port   Frequency range   Average out-putting power ±1dbm

Band 1   4G 2600 2570-2690MHz    35±1dbm / 3W

Band 2   GPSL1/5G1500     1427-1610MHz    35±1dbm / 3W

Band 3   5G3500/3700       3400-3800MHz    35±1dbm / 3W

Band 4   4G 700   738-821MHz 36±1dbm / 4W

Band 5   GSM       925-960MHz 36±1dbm / 4W

Band 6   3G   2110-2170MHz    36±1dbm / 4W

Band 7   DCS or PCS   1805-1880MHz    36±1dbm / 4W

Band 8   Wi-Fi 2.4G/4G2300      2300-2485MHz    35±1dbm / 3W

Power supply: adapter 50 to 60Hz AC (110-240V AC/24V DC)

Jamming Types: 5G/4G/3G/2G Mobile Phone +WiFi2.4G+GPSL1/ Glonass/GALILEOL1/beidou +LOJACK

Output Power:28W

Shielding Radius: (5-50) meters at -75dbm Still depends on the strength signal in given area

Power supply:  Adapter 50 to 60Hz AC (110-240V AC/24V DC)

Built-in battery: 24V/3500mAh

Continue working:  60minutes

Charge Time: 2 Hours

Dimension:156x 88 x 46mm (Jammer body without antenna)

Dimensions: (length ,width, height) 210x130x46mm (without antenna)

Length of antenna :195mm   Gain:2.5dbi

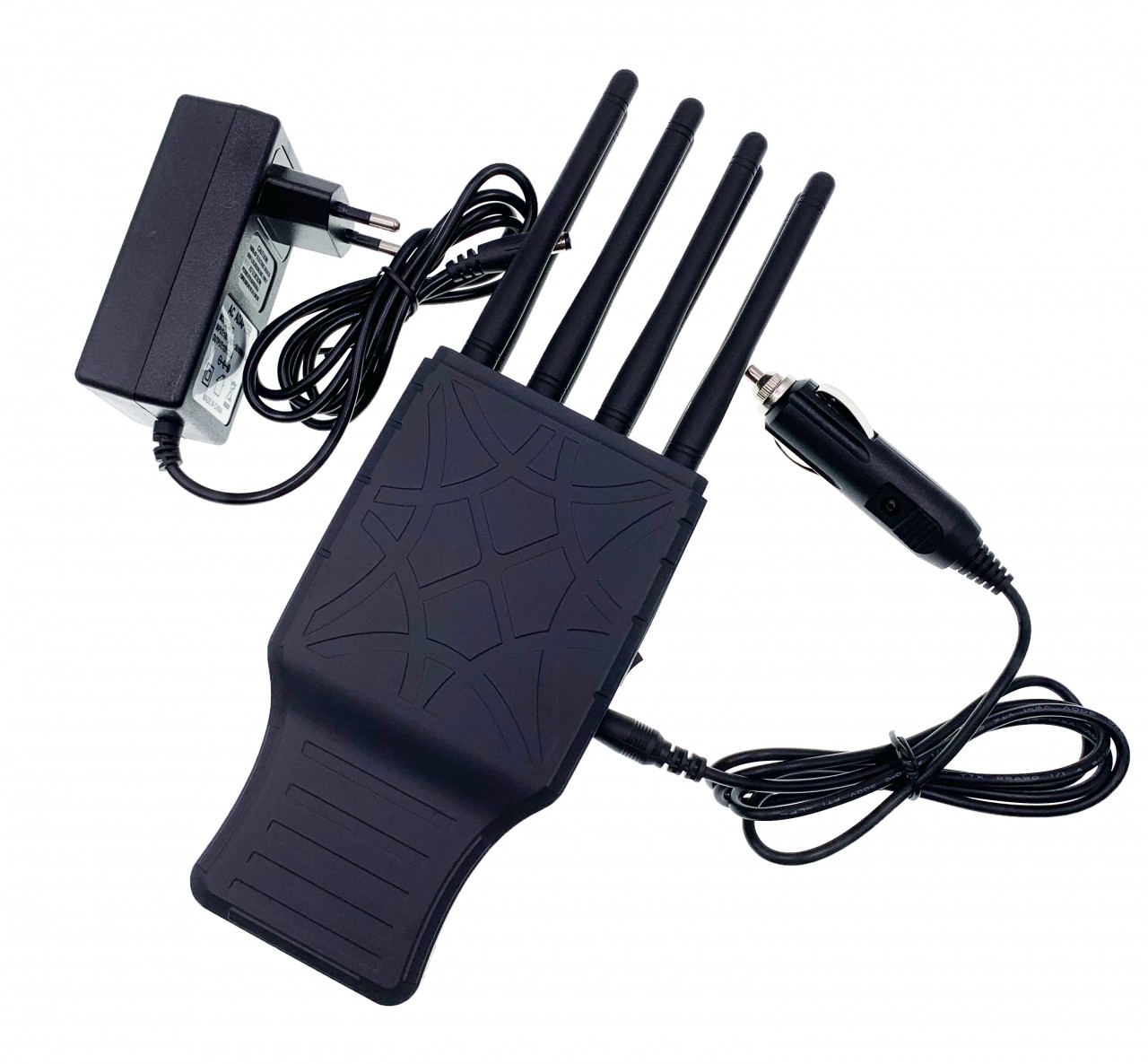

Package contents

1pcs Portable Signal Jammer

1pcs AC Charger

1pcs Car Charger

8pcs Antenna
