H&G Technology CO., LTD

Use area of this Jammer

• Biggest prison, bigger ground, battalion as well as illegal congregation, illegal demonstration , military rehearse, special action etc and this kind of jammer with big direction antenna which can be put on a car and it uses 9U or 12U standard tank and easily operates safety.

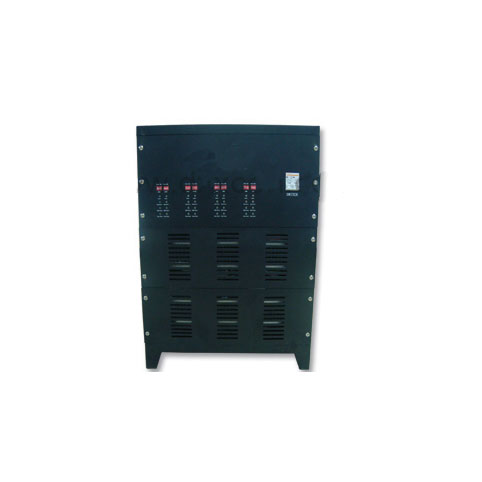

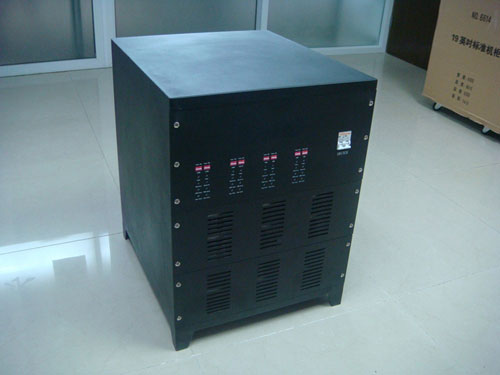

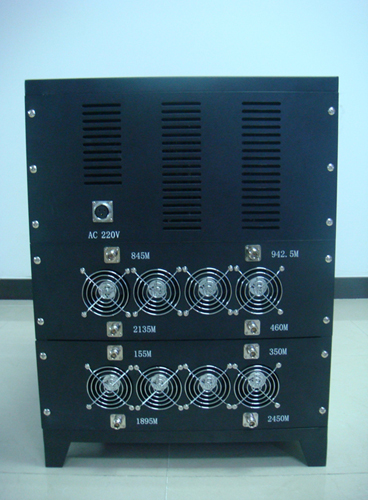

• This jammer is a vehicle mounted very high power jammer designed for blocking remote controlled improvised explosive devices Used by terrorist.

• It is using state-of-art technology for maximum performance and jamming the signals transmits to activate bombs.

• Jamming radius of "VIP Protection High Output Power Signal Jammer" depends on several conditions such as transmitter frequency and output power, distance to receiver, and obstacles between, etc.

• The system use Broadband Omni-Directional antennas for 360o protection.

• Because of the variety of jamming targets and a wide range of uncertainties, we have adopted the more advanced and effective jamming signal modulation method, which will increase the jamming efficiency in each band, so that to provide security protection and ensure the safety of VIPs.

• 8 frequency bands can be selected at most on this jammer

Technical Specifications

• As for band 20-6000 mhz, we always make it as following
  -20-80MHZ/ 50DBm
  -80-200MHZ/ 50DBm
  -200-500MHZ/50DBm
  -500-975MHZ/50DBm
  -975-1450MHZ/ 50DBm
  -1450-1925MHZ/50DBm
  -1925-2400MHZ/ 50DBm
  -2400-2500MHZ/50DBm
  -2500-3400MHZ/ 44DBm
  -3400-4200MHZ/44DBm
  -4200-5300MHZ/44DBm
  -5300-5900MHZ/44DBm
  -5900-6400MHZ/ 44DBm
  -930-960MHZ/50DBm
  -1800-1990MHZ/50DBm
  -2110-2170MHZ/50DBm

• Output Power: 800 Watts

• Power Supply: 220V AC/ 27V DC

• Sweep rate: Fixed

• Remote Control: ON/OFF

• Antenna: External Omni-Directional Antenna or directional Antenna

• Power Amplifier Protectors: Over Heat – Thermal protector

• Range jamming: 500M to 2000M (Depened on signal length)

• Dimensions: 40 x 40 x 50 cm,

• Operating Temp: -10oC - +65oC

• Humidity: 5% - 80%

Accessories

• AC adaptor

• Antenna
