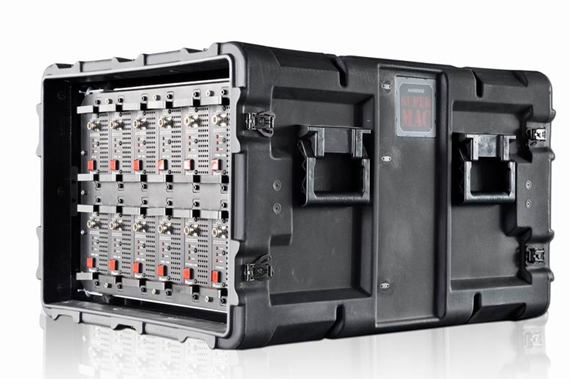

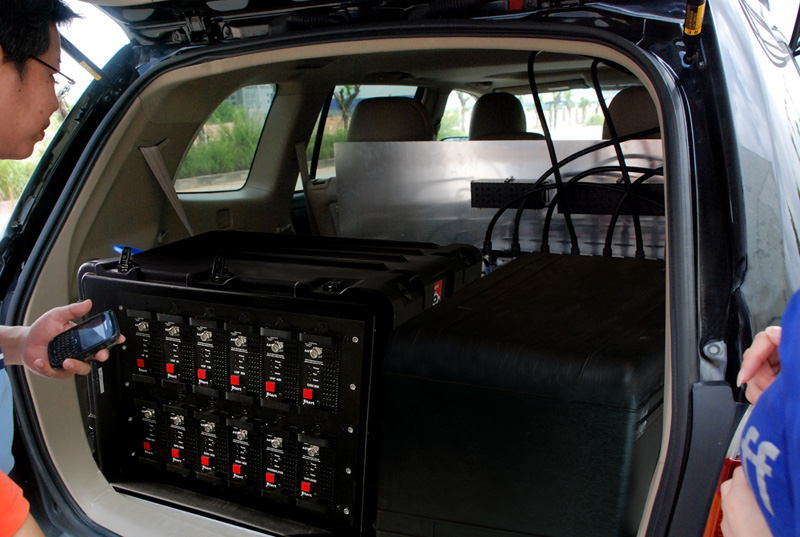

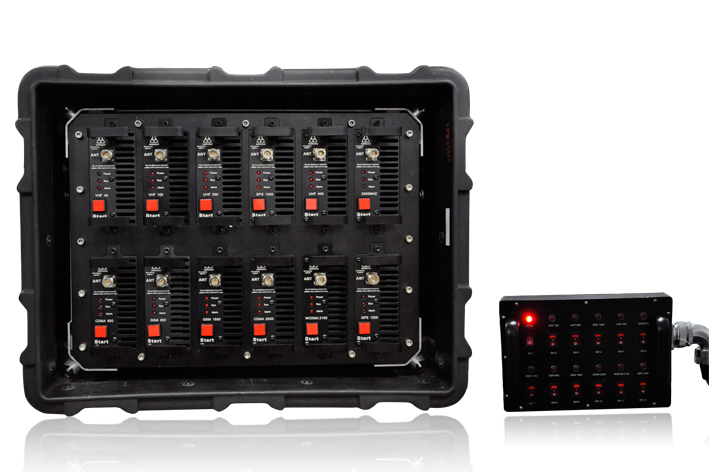

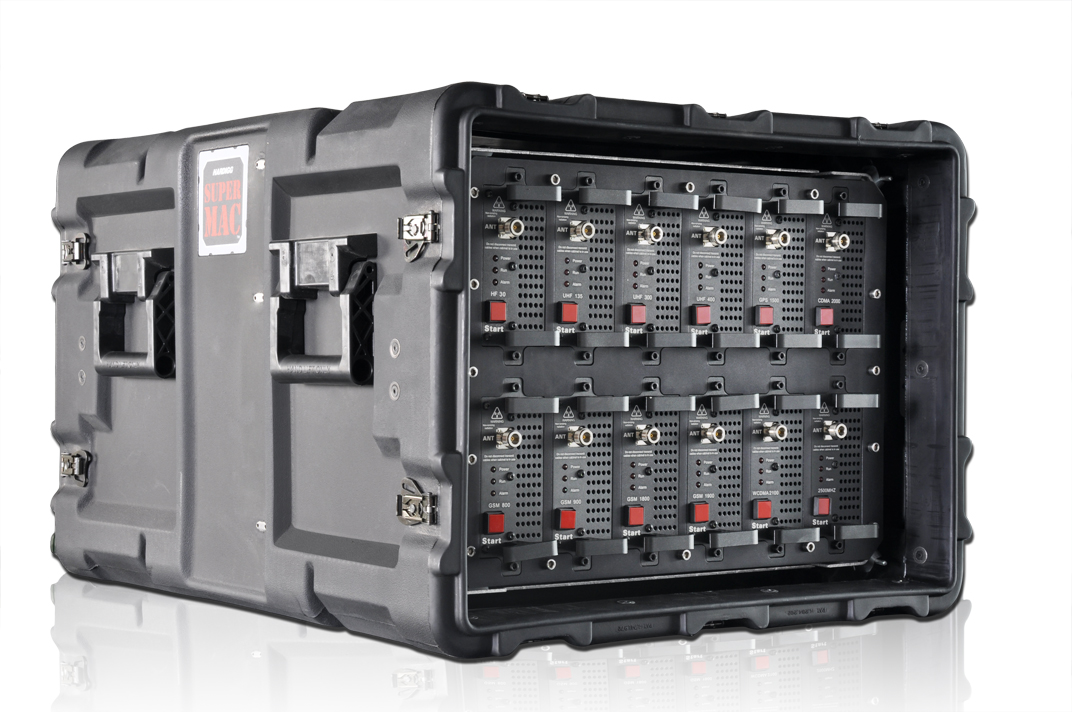

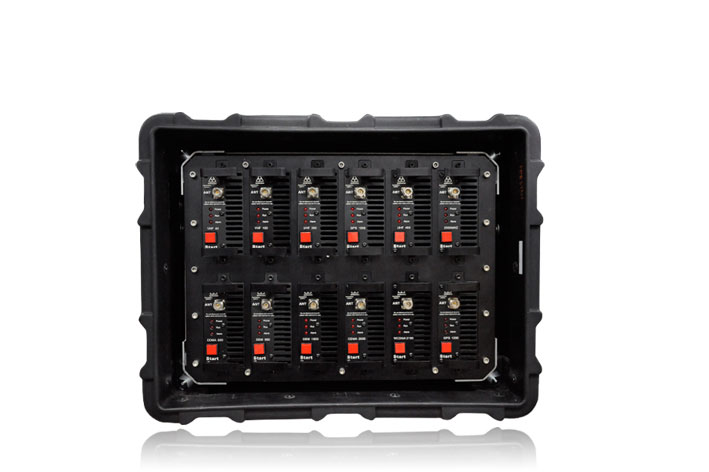

868W High Power UHF VHF Jammer Fully Integrated Broad Band Jamming System, it's specially customized to accommodate a fully integrated broad band jamming system which provides the ultimate solution for Military and Police convoys or VIP protection.

Specification

• Isolating Signal Bandwidth:

        -20-30MHz/Radio Control Toys, Analog phones&Alarms/45W

        -30-50MHz/Radio Control Toys, Analog phones&Alarms/45W

        -135-175MHz/Walky-talky ( VHF )/55W

        -310-350MHz/Walky-talky ( UHF300 )/55W

        -400-480MHz/Walky-talky ( UHF 350 )/55W

        -800-850MHz/Walky-Talky(UHF700/800), TETRA/100W

        -850-895MHz/Cellular CDMA/TDMA,alky-Talky ( UHF800/900 )/120W

        -925-960MHz/Cellular GSM900/120W

        -1520-1580MHz/GPS & Satellite; Thuraya; Iridium; Odyssey; GlobalStar; Inmarsat; Aces; Elipso/45W

        -1805-1990MHz/Cellular HGSM1800/ DCS，Cellular GSM1900/ PCS (+ PHS )/100W

        -2110-2170MHz/Cellular UMTS / WCDMA ( 3G )/100W

        -2400-2500MHz/WLAN & Bluetooth & Wifi/28W

       (Frequency bands can be customized, please contact us for more details.)

• Total RF Power:868 Watt

• Antenna Type:High Gain Omnidirectional Antennas

• Power Supply Source:Additional AC Generator ( 5000W)

• Total Power Consumption ( +28VDC ):Max 7000VA

• Total System Weight: Approx.180kg

• Operating Temperature Range:-20Ċ...+50ĊOperating Humidity:Up to 80%

Accessories

• Power cable
• Antennas
