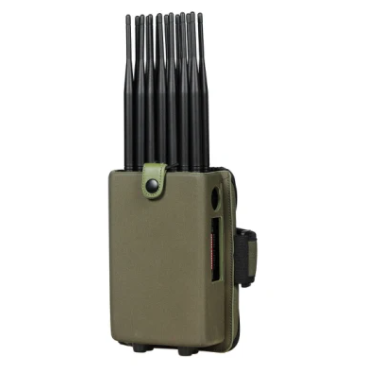

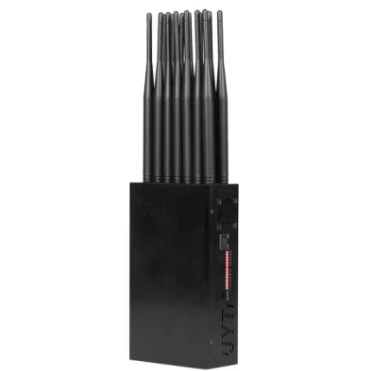

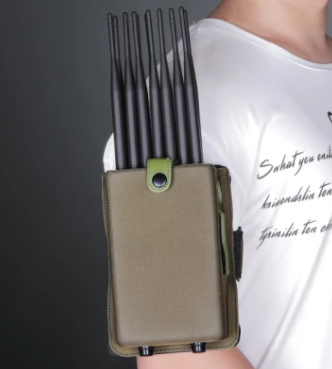

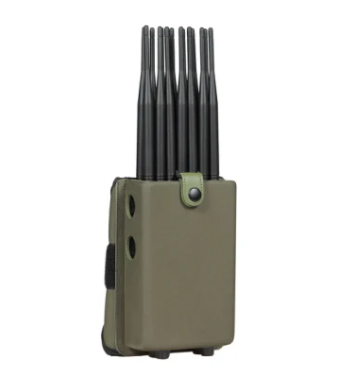

All-in-One 14 Antennas Full Bands Cell Phone 5G Signal Jammer WIFI GPS Remote Control 315/433/868 Blocker
Product Description
- World first 14 bands all-in-one frequencies blocking all cell phone signals,GPS,WIFI2.4G,5GWIFI,RF signals.
- Jamming range 10 to 30 meters(@-75dbm,depends on signal strength in given area.)
- With longer 2.0dbi gain omni antennas, Shielding radius: (10-30) meters at -75dBm with high gain omni antennas

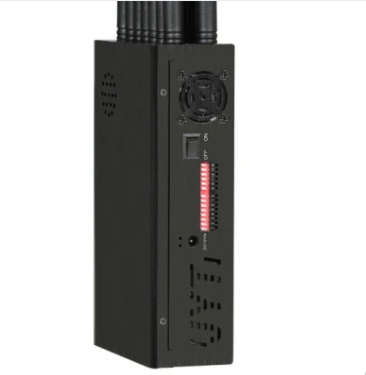

- With DIP switch, separate switch for each band, accompanied with a working LED light
- Could be used in car directly, with car charger and AC charger
- Inside *cooling fans and Bigger heatsink design ensure the device to work continuously
- With built-in battery,can work 2.5hours: use the world's most safety high-capacity battery,can be repeated charging.
Applications:
- It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more.
- For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
Manufacturer Specifications
Jamming Frequency Bands:
1. CDMA: 850-894MHz
2. GSM: 925-960Mhz
3. DCS&PCS: 1805-1990MHz
4. 3G: 2110-2170MHz
5. GPS: 1570-1580MHz
6. WiFi: 2400-2500MHz
7. 4G LTE: 725-770MHz(American standard) Or 790-826MHz(European standard)
8. 4G Wimax: 2345-2400MHz(American standard) Or 2620-2690MHz(European standard)
9. GPS L2-L5:1170-1280MHz
10. RC 315 (remote control): 315MHz
11. RC 433 (remote control): 433MHz
12. RC 868 (remote control): 868MHz
13. WiFi 5.2G: 5100-5680MHz
14. WiFi 5.8G: 5680-5900MHz
Jamming Types: CDMA, GSM, DCS, PCS, 3G, 4G, WiFi 2.4G & Bluetooth, WiFi 5G, GPS L1L2L5, RC 315 433 868
Shielding Range: 10~30M(-75dBm,depending on the distance of base station in an open filed)
Total output power: 14W
Power supply: 50-60Hz, 100-240V AC,DC12V.4A
Antennas: 14 antennas, 2.0dbi gain omni antennas
Cooling system: 3 built-in cooling fans and bigger heatsink design
Dimension: 175*102*50mm(not include antennas)
Full set weight: 2.5kg
Package Contents
1 x jammer
14 x antenna
1 x AC charger
1 x car charger
1 x carry case
