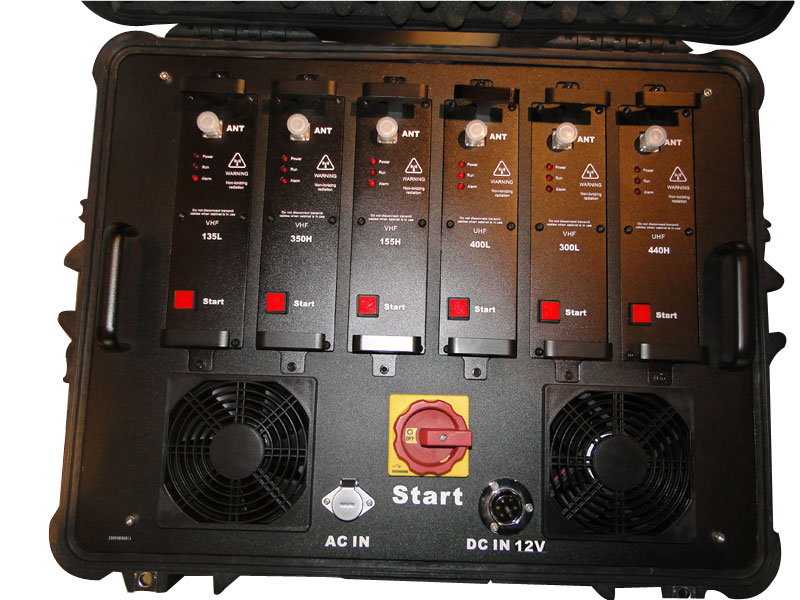

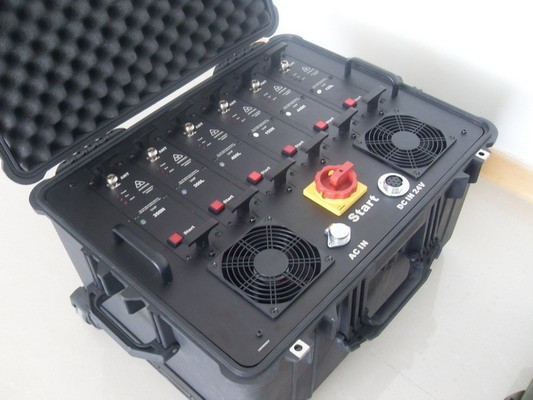

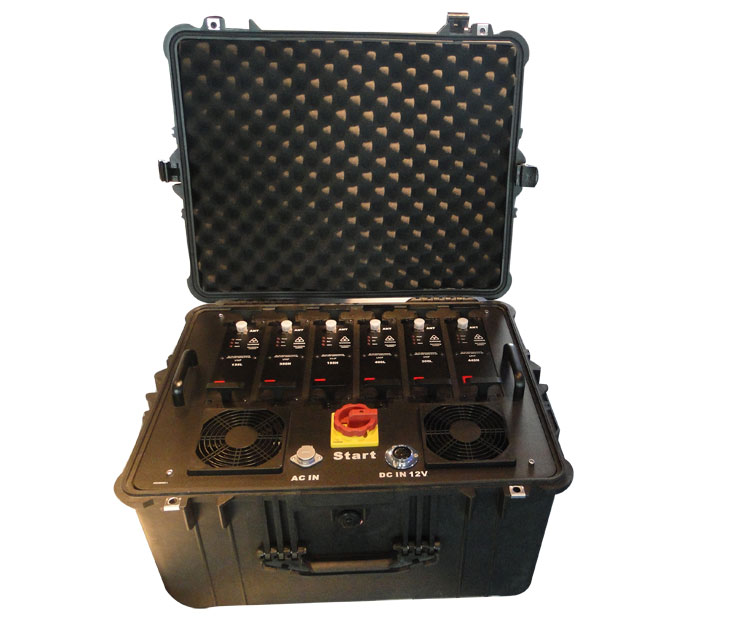

The Multi Band Powerful VHF UHF Jammer for Military and VIP Vehicle Convoy Protection is specially customized to accommodate a fully integrated broad band jamming system which provides the ultimate solution for Military and Police convoys or VIP protection. The 6 modules are controlled separately and they also can work simultaneously.

Each module with antenna can be used as a single jammer. The pelican case of the jammer is portable. It can be carried like a suitcase. The jammer can be fixed in car and temporary occasion. The Frequency band is optional. And the high power jammer is with excellent heat dispersion.

Technical Specifications

• Isolating Signal Bandwidth:

         Walky-talky (VHF); Cellular NMT: 135-155MHz

         Walky-talky (UHF/300MHz): 155-175MHz

         Walky-talky (UHF/350MHz): 300-350MHz

         Walky-talky (UHF/400MHz): 350-400MHz

         Walky-talky (UHF/450MHz): 350-400MHz

         Cellular NMT Cellular CDMA 450: 440-480MHz

         (Frequency bands can be customized, please contact us for more details.)

• Total Output Power: 300W

• Control: Each band can work independently

• Housing: Waterproof & shockproof design suitable indoor or outdoor use

• Dimension: 56*46*27 cm

• Total System Weight: Approx 60 kg (with omnidirectional antennae.)

• Humidity: Up to 80%

• Operation Temperature: -20 ...+50 Centigrade degree

• Antenna Type: 6pcs External (2-3dBi) omnidirectional (Standard)

Accessories

• Antenna

• Connecting line

• Power Cable
