Product name

UAV Detection Equipment

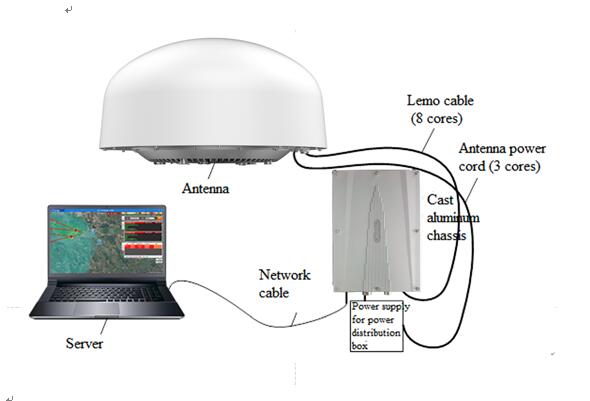

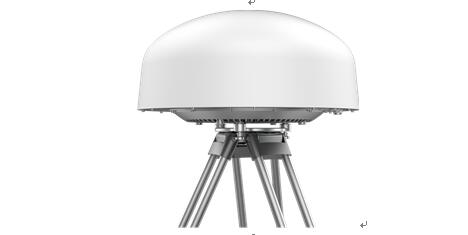

Product photo

Technical Characteristics

1.         Non-radiation detection: Passive locating technology is adopted, which does not interfere with surrounding equipment and has early-warning capability. The detection can be conducted by turning on the equipment on the ground without the necessity of the take-off of a UAV.

2.         All-weather work: The system is not affected by weather conditions and can work in all weather.

3.         Long detection distance: With special antenna and channel-processing technology, it can realize a detection distance of 5km.

4.         Strong identification ability: A frequency spectrum characteristic database of UAV transmitters is established, and the database is constantly updated.

5.         Discover the operator: Through identifying and locating the remote control signals, the illegal flight operator can be approached and located.

6.         Full-band broadband monitoring and signal analysis: 300MHz~6GHz, real-time bandwidth: 120MHz; the detection of FH signals can be ensured.

7.         The system has the ability to expand the monitoring capability of special frequency bands: the system can configure the monitoring capability of special frequency bands according to requirements.

8.         It can be linked with active radar system and countermeasure system precisely: Provide accurate frequency and azimuth information, and realize effective closed-loop linkage.

9.         Simple deployment: The system operations are simple. Information transmission is carried out through network among multiple stations, and the deployment is simple and quick.

Product category

Police and security products

Specification, model and parameters

Model: HAG-D411

Parameters:

a)    Operating frequency: 300MHz～6000MHz；

b)    Detection range: ≥5-8km (DJI 4P model is the standard in clearance environment);

c)    Detection angle range: 360°；

d)    DF accuracy: ≤2.5°(RMS)（DJI 4P model is the standard in clearance environment）；

e)    Time of the first interception: ≤4s；

f)     Number of simultaneous search targets: ≥20 batches;

g)    Multi-station positioning accuracy: ≤10%R；

h)    Spectrum analysis: identify spectrum characteristics and output corresponding UAV models;

i)     Power supply: input: AC 220 (1±15%) V, frequency 50 (1±5%) Hz;

j)     Power consumption: less than350W；

k)    Communication mode: Ethernet RJ45 interface communication, TCP protocol

* The listed performance indexes are under ideal working conditions.
